Mother board

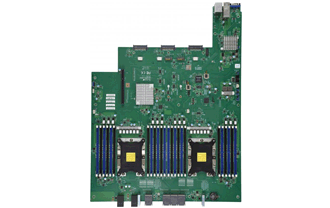

X11DPT-B

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s

• Intel® C621

• Up to 6TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 6TB 3DS ECC LRDIMM, DDR4-2933MHz
Or 6TB DCPMM, DDR4-2666MHz, in 24 DIMM slots;
Up to 6TB Intel® Optane DC Persistent Memory in memory mode (Cascade Lake only);

• 1 PCI-E 3.0 x16 Left Riser Slot,
1 PCI-E 3.0 x16 Right Riser Slot
1 PCI-E 3.0 x24 Proprietary Slot (for Supermicro storage add-on card),
1 PCI-E 3.0 x16 SIOM LAN Networking Slot,
1 PCI-E 3.0 x8 Proprietary Slot (For M.2 add-on card)

• 1 VGA port

• Intel® C621 controller for SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Single LAN with
Networking options provided via SIOM module

Learn more →

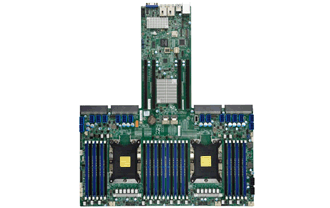

X11DPS-RE

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s

• Intel® C627

• Up to 6TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 6TB 3DS ECC LRDIMM, DDR4-2933MHz, in 24 DIMM slots;
Up to 6TB Intel® Optane DC Persistent Memory in memory mode (Cascade Lake only)

• 2 PCI-E 3.0 x16 (Low Profile),
4 PCI-E 3.0 x16
M.2 Interface: 2 PCI-E 3.0 x2
M.2 Form Factor: 2260/2280/22110
M.2 Key: M-Key
*2 SATA Hybrid ports, RAID 0 & 1

• 1 VGA D-Sub Connector port

• Dual LAN with 10GBase-T with Intel® X550

Learn more →

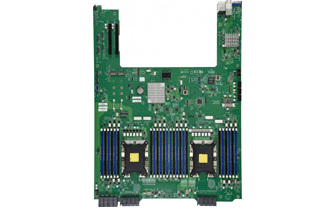

X11DPG-SN

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s

• Intel® C621

• Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots;
Up to 2TB Intel® Optane DC Persistent Memory in memory mode (Cascade Lake only)

• 4 PCI-E 3.0 x16,
1 PCI-E 3.0 x8,
2 PCI-E 3.0 NVMe x4 Internal Port(s)

• 1 VGA port

• Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Networking options provide via SIOM or AOC NIC

Learn more →
X11DPG-OT-CPU

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s

• Intel® C622

• Up to 6TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 6TB 3DS ECC LRDIMM, DDR4-2933MHz, in 24 DIMM slotsUp to 6TB Intel® Optane DC Persistent Memory in memory mode (Cascade Lake only)

• 4 PCI-E 3.0 x24 slots to PCI-E board
M.2 Interface: 1 PCI-E 3.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-Key,
2 PCI-E 3.0 NVMe x4 Internal Port(s)

• 1 VGA port

• Intel® C622 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Dual LAN with 10Gbase-T from C622

Learn more →
X11DPG-HGX2

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s

• Intel® C621

• Up to 6TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 6TB 3DS ECC LRDIMM, DDR4-2933MHz, in 24 DIMM slots;
Up to 6TB Intel® Optane DC Persistent Memory in memory mode (Cascade Lake only)

• 2 PCI-E 3.0 x16
M.2 Interface: 2 PCI-E 3.0 x4
M.2 Form Factor: 2280/22110
M.2 Key: M-Key

• 1 VGA D-Sub Connector port

• Intel® C621 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Dual LAN with 10GBase-T with Intel® X540 10GbE Controller

Learn more →
X11DPFR-SN

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 165W TDP, 2 UPI up to 10.4 GT/s

• Intel® C621

• Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz
Or 2TB DCPMM, DDR4-2666MHz, in 12 DIMM slots;
Up to 2TB Intel® Optane DC Persistent Memory in memory mode (Cascade Lake only);

• 1 PCI-E 3.0 x16 Left Riser Slot,
1 PCI-E 3.0 x16 Right Riser Slot,
1 PCI-E 3.0 x16 connector for SMC add-on cards
1 PCI-E 3.0 x16 SIOM LAN Networking Slot
M.2 Interface: PCI-E 3.0 x4
M.2 Form Factor: 2260, 2280, 22110
M.2 Key: M-Key,
4 NVMe Internal Port(s)

• 1 VGA port

• Intel® C621 controller for SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Single LAN with Networking options provided via SIOM module

Learn more →
X11DPFR-S

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 165W TDP, 2 UPI up to 10.4 GT/s

• Intel® C621

• Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz
Or 2TB DCPMM, DDR4-2666MHz, in 12 DIMM slots;
Up to 2TB Intel® Optane DC Persistent Memory in memory mode (Cascade Lake only);

• 1 PCI-E 3.0 x24 Left Riser Slot,
1 PCI-E 3.0 x16 Left Riser Slot,
1 PCI-E 3.0 x16 connector for SMC add-on cards
1 PCI-E 3.0 x16 SIOM LAN Networking Slot
M.2 Interface: PCI-E 3.0 x4
M.2 Form Factor: 2260, 2280, 22110
M.2 Key: M-Key

• 1 VGA port

• Intel® C621 controller for SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Single LAN with
Networking options provided via SIOM module

Learn more →
X11DPFF-SNR

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 165W TDP, 2 UPI up to 10.4 GT/s

• Intel® C621

• Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz
Or 2TB DCPMM, DDR4-2666MHz, in 12 DIMM slots

• 1 PCI-E 3.0 x16 Left Riser Slot,
1 PCI-E 3.0 x16 Right Riser Slot
M.2 Interface: 2 SATA/PCI-E 3.0 x4, RAID 0 & 1
M.2 Form Factor: 2242/2260/2280/22110
U.2 Interface: 4 PCI-E 3.0 x4,
4 PCI-E 3.0 NVMe x4 Internal Port(s)

• 1 VGA port

• Intel® C621 controller for SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Single LAN with
Networking options provided via SIOM module

Learn more →
X11DPFF-SN

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 165W TDP, 2 UPI up to 10.4 GT/s

• Intel® C621

• Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz
Or 2TB DCPMM, DDR4-2666MHz, in 12 DIMM slots;
Up to 2TB Intel® Optane DC Persistent Memory in memory mode (Cascade Lake only);

• 1 PCI-E 3.0 x16 Left Riser Slot,
1 PCI-E 3.0 x16 Right Riser Slot
M.2 Interface: 2 SATA/PCI-E 3.0 x4, RAID 0 & 1
M.2 Form Factor: 2260/2280/22110
M.2 Key: M-Key
U.2 Interface: 4 PCI-E 3.0 x4,
4 PCI-E 3.0 NVMe x4 Internal Port(s)

• 1 VGA port

• Intel® C621 controller for SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Single LAN with
Networking options provided via SIOM module

Learn more →
X11DPD-M25

dfdsgds• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s
• Intel® C621

• Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots;
Up to 2TB Intel® Optane DC Persistent Memory in memory mode (Cascade Lake only)

• 1 PCI-E 3.0 x16 (Low Profile),
1 PCI-E 3.0 x8 Right Riser Slot,
2 PCI-E 3.0 x8 Proprietary Slot,
1 PCI-E 3.0 x16 Left Riser Slot,
1 PCI-E 3.0 x16 for Add-On-Module (AOM)
M.2 Interface: 1 PCI-E 3.0 x4 and 1 PCI-E 3.0 x1
M.2 Form Factor: 2280
M.2 Key: M-Key
U.2 Interface: 2 PCI-E 3.0 x4,
2 PCI-E 3.0 NVMe x4 Internal Port(s)

• 1 VGA port

• Intel® C621 controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Dual LAN with SoC
Mellanox CONNECTX-4 LX EN 25GbE

Learn more →
X11DPD-L

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s

• Intel® C621

• Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz, in 12 DIMM slots;
Up to 2TB Intel® Optane DC Persistent Memory in memory mode (Cascade Lake only)

• 1 PCI-E 3.0 x16 (HBA Add-On-Module),
1 PCI-E 3.0 x16 Left Riser Slot,
1 PCI-E 3.0 x24 Right Riser Slot,
1 PCI-E 3.0 x16 (Low Profile)
M.2 Interface: 1 PCI-E 3.0 x4 and 1 PCI-E 3.0 x1
M.2 Form Factor: 2280
M.2 Key: M-Key
U.2 Interface: 2 PCI-E 3.0 x4,
2 PCI-E 3.0 NVMe x4 Internal Port(s)

• 1 VGA port

• Intel® C621 controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10

Learn more →
X11DGO-T

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s

• Intel® C621

• Up to 6TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 6TB 3DS ECC LRDIMM, DDR4-2933MHz, in 24 DIMM slots (2933MHz in two DIMMs per channel supported on Rev 1.10 MB only) ;
Up to 6TB Intel® Optane DC Persistent Memory in memory mode (Cascade Lake only)

• 2 PCI-E 3.0 x16
4 PCI-E 3.0 x16 to midplane
M.2 Interface: 2 PCI-E 3.0 x4
M.2 Form Factor: 2260/2280/22110
M.2 Key: M-Key
M.2 Type: NVMe

• 1 VGA port

• Intel® C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Dual LAN with Intel® X540 10GBase-T Ethernet Controller

Learn more →
