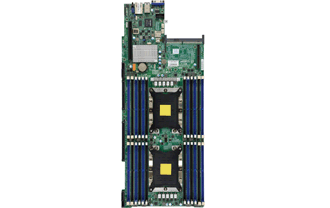

    X11DPT-B

    Print

    Key Features

    • • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
      Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s
    • • Intel® C621
    • • Up to 6TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 6TB 3DS ECC LRDIMM, DDR4-2933MHz
      Or 6TB DCPMM, DDR4-2666MHz, in 24 DIMM slots;
      Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);
    • • 1 PCI-E 3.0 x16 Left Riser Slot,
      1 PCI-E 3.0 x16 Right Riser Slot
      1 PCI-E 3.0 x24 Proprietary Slot (for Supermicro storage add-on card),
      1 PCI-E 3.0 x16 SIOM LAN Networking Slot,
      1 PCI-E 3.0 x8 Proprietary Slot (For M.2 add-on card)
    • • 1 VGA port
    • • Intel® C621 controller for SATA3 (6 Gbps) ports; RAID 0,1,5,10
    • • Single LAN with
      Networking options provided via SIOM module
    Specifications
    Product SKUs
    MBD-X11DPT-B
    • X11DPT-B

    Physical Stats
    Form Factor
    • Proprietary Twin
    Dimensions
    • 7.62" x 18.86" (19.35cm x 47.9cm)

    Processor/Cache
    CPU
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
    • Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s
    Cores / Cache
    • Up to 28 cores
    Note
    • BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP
    • BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

    System Memory
    Memory Capacity
    • Up to 6TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 6TB 3DS ECC LRDIMM, DDR4-2933MHz, in 24 DIMM slots;
    • Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);
    Memory Type
    • 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
    DIMM Sizes
    • RDIMM: 64GB
    • LRDIMM: 64GB
    • 3DS LRDIMM: 128GB, 256GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)

    On-Board Devices
    Chipset
    • Intel® C621
    SATA
    • Intel® C621 controller for SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2500
    Network Controllers
    • Single LAN with
      Networking options provided via SIOM module
    Graphics
    • Aspeed AST2500 BMC

    Input / Output
    SATA
    • 8 SATA3 (6Gbps) port
    USB
    • 2 USB 3.0 ports (2 rear)
    Video Output
    • 1 VGA port
    TPM
    • 1 TPM Header
    Expansion Slots
    PCI-E
    • 1 PCI-E 3.0 x16 Left Riser Slot,
    • 1 PCI-E 3.0 x16 Right Riser Slot
    • 1 PCI-E 3.0 x24 Proprietary Slot (for Supermicro storage add-on card),
    • 1 PCI-E 3.0 x16 SIOM LAN Networking Slot,
    • 1 PCI-E 3.0 x8 Proprietary Slot (For M.2 add-on card)

    System BIOS
    BIOS Type
    • AMI UEFI

    Management
    Software
    • Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
    Power Configurations
    • ACPI Power Management

    PC Health Monitoring
    Voltage
    • +1.8V, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), Chipset Voltage, Memory Voltages, Monitors CPU voltages
    FAN
    • 2x 4-pin fan headers (up to 2 fans), PWM fan speed control
    Temperature
    • CPU thermal trip support, Monitoring for CPU and chassis environment
    LED
    • BMC/IPMI Heartbeat LED, UID/Remote UID
    Other Features
    • Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS, SDDC, UID, WOL

    Operating Environment
    Operating Temperature Range
    • 10°C - 35°C (50°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
    Parts List
    Parts List (Bulk Package)
    Name Part Number Qty Description
    Motherboard MBD-X11DPT-B 1 X11DPT-B Motherboard
    --


    Optional Parts List
    Name Part Number Qty Description
    TPM security module (optional, not included)AOM-TPM-9670V1SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
    TPM security module (optional, not included)AOM-TPM-9670H1SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
    TPM security module (optional, not included)AOM-TPM-9671V1SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
    TPM security module (optional, not included)AOM-TPM-9671H1SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
    Chassis (Optimized for

    X11DPT-B

    )
    Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower
    SC217BHQ+-R2K22BP
    1U Heatsink:SNK-P0067PSM (Front)
    1U Heatsink:SNK-P0067PS (Rear)

    = Most optimized Chassis for SuperServer Configuration
    Blue color = Compatible
    Green color = Global SKU & Compatible
    Red dot & green color = Optimized + Global SKU


    Server (Optimized for X11DPT-B)
