· 3rd Gen Intel® Xeon® Scalable processors
Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, 2 UPI up to 11.2 GT/s

· Intel® C621A

· Up to 2TB RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz, in 8 DIMM slots

· 4 PCI-E 4.0 x16,
1 PCI-E 4.0 NVMe x8 Internal Port(s)
M.2 Interface: 2 PCI-E 4.0 x4
M.2 Form Factor: 2280/22110, 2280
M.2 Key: M-Key

· 1 VGA port
· Intel® C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
· Dual LAN with Intel® X550 10GBase-T Ethernet Controller

· 3rd Gen Intel® Xeon® Scalable processors
Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, 2 UPI up to 11.2 GT/s

· Intel® C621A

· Up to 2TB RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz, in 8 DIMM slots

· 4 PCI-E 4.0 x16
M.2 Interface: 2 PCI-E 4.0 x4
M.2 Form Factor: 2280/22110, 2280
M.2 Key: M-Key

· 1 VGA port
· Intel® C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
· Dual LAN with Intel® i210 Gigabit Ethernet Controller

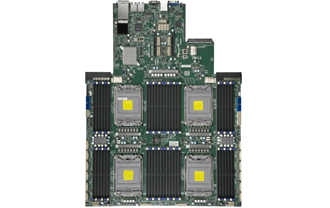

• 3rd Generation Intel® Xeon® Scalable processors
Quad Socket LGA-4189 (Socket P+) supported, CPU TDP support Up to 250W TDP, 6 UPI up to 10.4 GT/s

• Intel® C621A

• Up to 12TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 12TB 3DS ECC LRDIMM, DDR4-3200MHz
Up to 6TB Intel© PMem 200 Series, DDR4-2666MHz, in 48 DIMM slots

• 3 PCI-E 3.0 x32 Left Riser Slot,
3 PCI-E 3.0 x32 Right Riser Slot
M.2 Interface: 2 SATA/PCI-E 3.0 x4
M.2 Form Factor: 2280/22110
M.2 Key: M-Key
U.2 Interface: 8 PCI-E 3.0 x4 and 8 PCI-E 3.0 x4 and 8 PCI-E 3.0 x4 and 8 PCI-E 3.0 x4
1 PCI-E 3.0 x32 Left Riser Slot, Riser card PN: RSC-D2-668G4
1 PCI-E 3.0 x32 Right Riser Slot, Riser card PN: RSC-D2R-668G4

• 1 VGA port

• Intel® C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Quad LAN with
2x 10G BaseT with Intel® X710-TM4; 2x 10G SFP+ with Intel® X710-TM4, (Optional) AIOM up to 100G QSFP 28

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s

• Intel® C621

• Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz
Or 2TB DCPMM, DDR4-2666MHz, in 16 DIMM slots;
Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only).

• 2 PCI-E 3.0 x16,
8 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8 slot) Or 4 PCI-E 3.0 x16 and 4 PCI-E 3.0 x8 and 1 PCI-E 3.0 x4 (in x8 slot)
M.2 Interface: 1 PCI-E 3.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-Key

• 1 VGA D-Sub Connector port

• Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Dual LAN with Intel® X550 10GBase-T Ethernet Controller

• 3rd Gen Intel® Xeon® Scalable processors
Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP

• Intel® C621A
Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz, in 16 DIMM slots

• M.2 Interface: 1 SATA/PCI-E 3.0 x4
M.2 Key: M-Key

• Dual LAN with 25GbE with Mellanox ConnectX-4 Lx EN

• 3rd Gen Intel® Xeon® Scalable processors
Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 165W TDP, 3 UPI up to 10.4 GT/s

• Intel® C621A

• Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 16 DIMM slots

• 1 PCI-E 4.0 x16 Right Riser Slot,
1 PCI-E 4.0 x8 connector for SMC add-on cards,
3 PCI-E 4.0 NVMe x8 Internal Port(s)
1 PCI-E 4.0 x16, OCP 3.0 compliant

• Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Single LAN with
Networking options provided via AIOM module

• 1 VGA port

· 3rd Gen Intel® Xeon® Scalable processors
Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, 2 UPI up to 11.2 GT/s

· Intel® C621A

· Up to 4TB RDIMM, DDR4-3200MHz; Up to 4TB LRDIMM, DDR4-3200MHz
Up to 4TB Intel® Optane™ Persistent Memory, DDR4-3200MHz (OC), in 16 DIMM slots

· 1 PCI-E 4.0 x16 Left Riser Slot,
1 PCI-E 4.0 x16 Right Riser Slot,
1 PCI-E 4.0 x8 Right Riser Slot

· 1 PCI-E 4.0 x8 Proprietary Storage adapter Slot

· Dual LAN with 10Gbase-T
· Intel® C621A controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
· 1 VGA port

· 3rd Gen Intel® Xeon® Scalable processors
Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s

· Intel® C621A

· Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz
Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slotsP1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only.

· 2 PCI-E 4.0 x8,
4 PCI-E 4.0 x16,
2 PCI-E 4.0 NVMe x8 Internal Port(s)
M.2 Interface: 1 PCI-E 4.0 x4
M.2 Form Factor: 2280/22110
M.2 Key: M-Key

· 2 VGA (1 rear bezel, 1 front panel) ports
· Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
· Dual LAN with Intel® i350 Gigabit Ethernet Controller

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s

• Intel® C621

• Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz
Or 2TB DCPMM, DDR4-2666MHz, in 16 DIMM slots;
Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only).

• 2 PCI-E 3.0 x16,
8 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8 slot) Or 4 PCI-E 3.0 x16 and 4 PCI-E 3.0 x8 and 1 PCI-E 3.0 x4 (in x8 slot)
M.2 Interface: 1 PCI-E 3.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-Key

• 1 VGA D-Sub Connector port

• Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Dual LAN with Intel® X550 10GBase-T Ethernet Controller

· 3rd Gen Intel® Xeon® Scalable processors
Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s

· Intel® C621A

· Up to 4TB RDIMM, DDR4-3200MHz; Up to 4TB LRDIMM, DDR4-3200MHz
Up to 2TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 20 DIMM slots

· 1 PCI-E 4.0 x16 Left Riser Slot,
1 PCI-E 4.0 x16 Right Riser Slot,
1 PCI-E 4.0 x8 connector for SMC add-on cards
1 PCI-E 4.0 x40 Proprietary Storage Slot,
1 PCI-E 4.0 x16 AIOM Networking Slot,
1 PCI-E 4.0 x8 M.2 Slot
M.2 Form Factor: 2260/2280/22110
1 PCI-E 4.0 x16

· 1 VGA port

· Intel® C621 controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10

· Single LAN with
Networking options provided via AIOM module

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s

• Intel® C622

• Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz
Or 2TB DCPMM, DDR4-2666MHz, in 16 DIMM slots;
Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);

• 4 PCI-E 3.0 x16,
2 PCI-E 3.0 x8
M.2 Interface: PCI-E 3.0 x4
M.2 Form Factor: 2260, 2280, 22110
M.2 Key: M-Key,
2 PCI-E 3.0 NVMe x4 Internal Port(s)

• 1 VGA port

• Intel® C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Dual LAN with 10GBase-T with Intel® X722 + X557

· 3rd Gen Intel® Xeon® Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP

· Intel® C621A

· Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots

· 1 PCI-E 4.0 x16 Right Riser Slot,
1 PCI-E 4.0 x32 Left Riser Slot,
4 PCI-E 4.0 NVMe x4 Internal Port(s)
M.2 Interface: PCI-E 3.0 x4 and SATA
M.2 Form Factor: 2280, 22110
M.2 Key: M-Key

· Dual LAN with 10GBase-T with Intel® X550

· Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

· I/O: 1 VGA, 2 COM, TPM header

· 2 SuperDOM with built-in power
