슈퍼마이크로 슈퍼마이크로는 기업 컴퓨팅, 스토리지, 네트워킹 솔루션 및 그린 컴퓨팅 기술 분야의 글로벌 리더입니다.

Server Boards

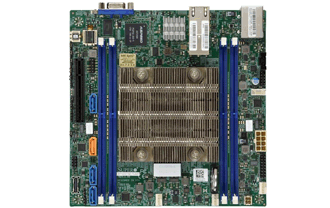

X11SDV-8C-TLN2F

• Intel® Xeon® Processor D-2141I, 8-Core, 16 Threads, 65W

• System on Chip

• Up to 256GB Registered ECC RDIMM or 512GB ECC LRDIMM, DDR4-2133MHz in 4 DIMM slots

• 1 PCI-E 3.0 x8
1 PCI-E 3.0 x4 NVMe Internal Port via OCuLink

• Dual LAN with 10GBase-T via Intel® SoC

• Up to 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
4 SATA ports via OCuLink (or PCI-E 3.0 x4 for NVMe)

• 2 USB 3.0 ports (rear)
2 USB 2.0 ports (via header)

• 12V DC or ATX Power Input

Learn more →
X11SDD-18C-F

• Intel® Xeon® processor D-2191, Single socket FCBGA 2518, 18-Core, 86W

• Up to 256GB ECC RDIMM DDR4 2400MHz or 512GB LRDIMM in 4 Sockets

• 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 (Micro LP)

• Integrated IPMI 2.0 and KVM with Dedicated LAN

• Network option via Micro LP card

• 2 SATA3 (6Gbps ports)

• 1 VGA, 2 USB 2.0, 1 COM via KVM dongle

• 2 M.2 PCI-E 3.0 x4 with SATA M-Key in 2242/80/110

Learn more →

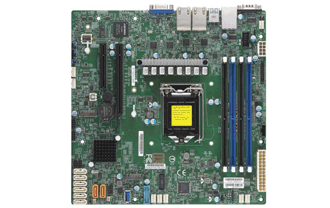

X11SCW-F

• 8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor, Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP

• Intel® C246

• Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots

• 1 PCI-E 3.0 x16,
1 PCI-E 3.0 x4 (in x8 slot)
M.2 Interface: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4
M.2 Form Factor: 2260/2280/22110
M.2 Key: M-Key
Double Height Connector

• Intel® C246 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Dual LAN with Intel® Ethernet Controller I210-AT

• 1 VGA port

• 4 USB 3.1 Gen2 (2 header, 2 rear), 1 USB 3.1 Gen1 Type A, 6 USB 2.0

Learn more →

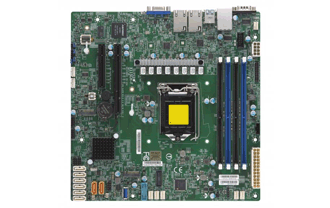

X11SCM-LN8F

• 8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor, Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP

• Intel® C246

• Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots

• 8 LAN with Intel® Ethernet Controller I210-AT

• 1 PCI-E 3.0 x16
M.2 Interface: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4
M.2 Form Factor: 2280/22110
M.2 Key: M-Key
Double Height Connector

• Intel® C246 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• 5x USB 3.0 ports, 4x USB 2.0 ports

• 1 VGA, 1 COM, 1 TPM

• 2 SuperDOM with built-in power

Learn more →
X11SCM-F

• 8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor, Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP

• Intel® C246

• Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots

• 1 PCI-E 3.0 x16
M.2 Interface: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4
M.2 Form Factor: 2280/22110
M.2 Key: M-Key
Double Height Connector

• Dual LAN with Intel® Ethernet Controller I210-AT

• Intel® C246 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• 5x USB 3.0 ports, 4x USB 2.0 ports

• 1 VGA, 1 COM, 1 TPM

• 2 SuperDOM with built-in power

Learn more →
X11SCL-LN4F

• 8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor., Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP

• Intel® C242

• Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots

• 1 PCI-E 3.0 x16
M.2 Interface: 1 PCI-E 3.0 x4
M.2 Form Factor: 2280/22110
M.2 Key: M-Key
Double Height Connector

• Quad LAN with Intel® Ethernet Controller I210-AT

• Intel® C242 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• 5x USB 3.0 ports, 4x USB 2.0 ports

• 1 VGA, 1 COM, 1 TPM

• 2 SuperDOM with built-in power

Learn more →
X11SCL-IF

• 8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor., Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP

• Intel® C242 chipset

• Up to 64GB DDR4 2666MHz ECC UDIMM; 2 DIMM slots

• Dual GbE LAN with Intel® i210-AT

• 4 SATA3 (6Gbps); RAID 0, 1, 5, 10

• M.2 NGFF connector

• M.2 Interface: 1 SATA/PCI-E 3.0 x4
Form Factor: 2280
Key: M-Key
Double Height Connector

Learn more →
X11SCL-F

• 8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor., Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP

• Intel® C242 chipset

• Up to 128GB DDR4 2666MHz ECC UDIMM; 4 DIMM slots

• Expansion slots:
1 PCI-E 3.0 x8 (in x16),
2 PCI-E 3.0 x4 (in x8)

• Dual GbE LAN with Intel® i210-AT

• 6 SATA3 (6Gbps) ports;
RAID 0, 1, 5, 10

• M.2 NGFF connector

• M.2 Interface: 1 PCI-E 3.0 x4
Form Factor: 2280/22110
Key: M-Key
Double Height Connector

• I/O: 1 VGA, 2 COM, 2 SuperDOM, and TPM header

Learn more →
X11SCH-LN4F

• 8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor., Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP

• Intel® C246 chipset

• Up to 128GB DDR4 2666MHz ECC UDIMM; 4 DIMM slots

• Expansion slots: 1 PCI-E 3.0 x8 (in x16) and 1 PCI-E 3.0 x8 slots

• Quad GbE LAN ports via Intel® i210

• 8 SATA3 (6Gbps) via C246; RAID 0, 1, 5, 10

• I/O: 1 VGA, 2 COM, 1 TPM header

• 2 SuperDOM with built-in power

• 2 USB 3.1 Gen 2 (rear); 3 USB 3.1 Gen 1 (1 Type A, 2 via header(s)); 6 USB 2.0 (2 rear, 4 via header(s))

• 2x M.2 NGFF connectors
M.2 Interface: PCI-E 3.0 x4
Form Factor: 2280, 22110
Key: M-Key
Double Height Connector

Learn more →
X11SCH-F

• 8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor., Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP

• Intel® C246 chipset

• Up to 128GB DDR4 2666MHz ECC UDIMM; 4 DIMM slots

• Expansion slots: 1 PCI-E 3.0 x8 (in x16) and 1 PCI-E 3.0 x8 slots

• Dual GbE LAN ports via Intel® i210

• 8 SATA3 (6Gbps) via C246; RAID 0, 1, 5, 10

• I/O: 1 VGA, 2 COM, TPM header

• 2 SuperDOM with built-in power

• 2 USB 3.1 Gen 2 (rear); 3 USB 3.1 Gen 1 (1 Type A, 2 via header(s)); 6 USB 2.0 (2 rear, 4 via header(s))

• 2x M.2 NGFF connectors
M.2 Interface: PCI-E 3.0 x4
Form Factor: 2280, 22110
Key: M-Key
Double Height Connector

Learn more →
X11SCE-F

• Single socket H4 (LGA 1151) supports Intel® Xeon® processor E-2100, E-2200, Intel® 8th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium®

• Intel® C246 chipset

• Up to 128GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slot

• 4 SATA 3.0 (RAID 0, 1, 5, 10) or 2 U.2 NVMe drives

• 1 M.2 PCI-E 3.0 x4 Form Factor: 2280/22110

• 1 VGA, 2 USB 2.0, 1 COM via KVM dongle

Learn more →

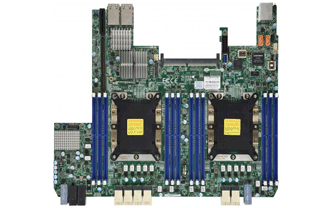

X11DSN-TSq

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s

• Intel® C627

• Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz, in 12 DIMM slots;
Up to 2TB Intel® Optane DC Persistent Memory in memory mode (Cascade Lake only)

• 2 PCI-E 3.0 x16 Left Riser Slot
M.2 Interface: 1 PCI-E 3.0 x4
M.2 Form Factor: 2242/2260/2280
M.2 Key: M-Key

• 1 VGA D-Sub Connector port

• Intel® PCH SATA controller for

• Dual LAN with 10GBase-T with Intel® X557

Learn more →
