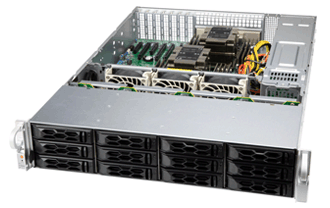

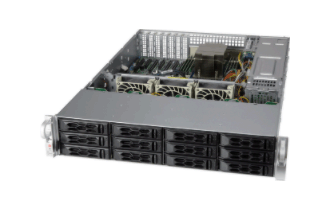

• 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68".
Support up to ATX 12"x13" MB with rear 2.5" HDD option installed

• 12x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bay with SES3
Optional rear 2x 2.5" hot-swap drive bay kit

• 12-port LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Device

• 920W 1U Redundant Power Supply

• 7x low-profile expansion slot(s)

• 3x 8cm high-performance PWM fan(s)

• Support service tag for system information

• Comes with standard 2U package with 2-layer carton and SMC logo

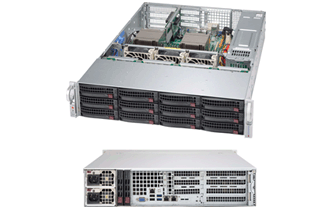

• 2U chassis support max. motherboard size - ATX 12"x10", E-ATX12"x13", EE-ATX13"x13.68".

• Support up to ATX 12"x13" MB with rear 2.5" HDD option installed

• 12x3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bay with SES3

• Optional rear 2x 2.5" hot-swap drive bay kit

• 12-port 2U SAS3 12Gbps single-expander backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices

• 600W / 650W 1U Redundant Power Supply

• 7x low-profile expansion slot(s)

• 3x 8cm high-performance PWM fan(s)

• Support service tag for system information

• OEM Only, MOQ Applies

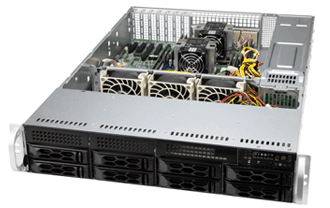

• 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68"

• Support up to ATX 12"x13" MB with rear 2.5" HDD option installed

• 8x 3.5"(tool-less) or 2.5"(screw) hot-swap SAS3/SATA drive bay

• Optional 2x 3.5" fixed drive bay,

• Optional rear 2x 2.5" hot-swap drive bay kit

• 2U 8-Slot 12G Backplane for 8x 3.5" SAS3/SATA HDD/SSD

• 600W / 650W 1U Redundant Power Supply

• 7 low-profile expansion slot(s)

• 3x 80mm heavy duty fan(s) with PWM fan(s) speed control

• Support Service Tag for system information.

• OEM Only, MOQ Applies

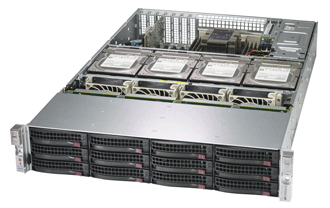

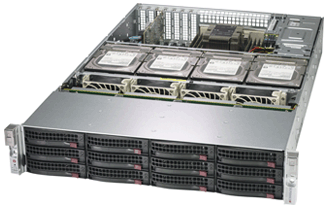

• 2U chassis supports for maximum motherboard sizes - 13.68" x 13.4", E-ATX 12" x 13", ATX 12" x 10" motherboards

• 16 x 3.5" hot-swap SAS3/SATA drive bay, optional 2 x 2.5" hot-swap SAS3/SATA drive bay

• 12-port 2U SAS3 12Gbps single-expander backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices

• 4-port internal SAS3 12Gbps backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD

• 1U 1600W Redundant Titanium AC Power Supply with PMbus 73.5x203x40mm

• 7 low-profile expansion slot(s)

• 4 x 80x38mm hot-swap cooling fan(s)

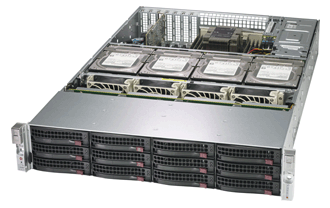

• 2U chassis supports for maximum motherboard sizes - 13.68" x 13.4", E-ATX 12" x 13", ATX 12" x 10" motherboards

• 16 x 3.5" hot-swap SAS3/SATA drive bay, optional 2 x 2.5" hot-swap SAS/SATA drive bay

• 12-port 2U SAS3 12Gbps single-expander backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices

• 4-port internal SAS3 12Gbps backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD

• 7 low-profile expansion slot(s)

• 4 x 80x38mm hot-swap cooling fan(s)

• 12x NVMe/ SAS3 Hybrid Drive Bays Provide Ultimate Flexibility

• Additional 4x 3.5" Hot-swap SAS3/ SATA3 HDD Bays with Rear 2x 2.5” SAS3/SATA3 HDD option

• Enhanced cooling design w/ 4x 8cm 13.5K RPM high-performance fans

• Redundant 1600W Titanium Level (96%+) high-efficiency supplies

• Optional cable management arm for hot-swap access

• 7x Low-profile, Half-length I/O expansion slots

• 2U chassis supports for maximum motherboard sizes - SMC Proprietary WIO , 13.68" x 16.5" motherboards

• 10 x 3.5" hot-swap SAS/SATA

• 10-port 2U CSE-829 TQ (W/ AMI 9072 SGPIO support) backplane, support up to 10x 3.5-inch SAS/SATA HDD

• 1U 920W Redundant Platinum Super Quiet power supply W/PMbus

• 4 full-height & full-length expansion slot(s) , 3 low-profile expansion slot(s)

• 4 x 80mm 9500 RPM fan(s)

• Optional 3 x fans for 100% cooling redundancy

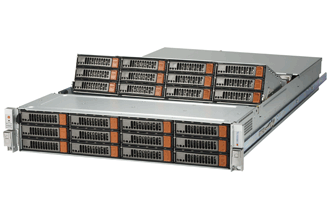

• Extreme High Density Storage Chassis support 24x (12 front + 12 middle) 3.5" SAS/SATA 12Gb/s Hot-Swap Bays

• Single Expander Backplane Boards support SAS/SATA HDDs with 12Gb/s throughput

• 4x Mini-SAS HD ports for Internal/External Cascading

• 1000W (1+1) Redundant High-efficiency Titanium Level power supplies with PMBus

• Optimize cooling with 5x 8cm Hot-Swap redundant fans

• JBOD Power Control Board with IPMI for remote monitor and power on-off; Internal Connection Cables Included

• Qualified SAS HBA / controller :
AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller

• 2U chassis support for SMC Proprietary WIO motherboards max. motherboard size - 12" x 13", 13" x 13.68". Support up to 12"x13" MB with rear 2.5" HDD option installed

• 12 x 3.5" hot-swap SAS/SATA drive bay with SES3, optional 2 x 2.5" hot-swap drive bay

• 12-port 2U SAS3 12Gbps dual-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)

• 1U 920W Redundant Platinum Super Quiet power supply W/PMbus

• WIO Slots (4x Full-height, Half-length + 3x Low-profile)

• 3 x 8cm high-performance PWM fan(s)

• 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Support up to ATX 12"x13" MB with rear 2.5" HDD option installed

• 12 x 3.5" hot-swap SAS/SATA drive bay with SES3

• 12-port 2U SAS3 12Gbps dual-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)

• 1U 920W Redundant Platinum Super Quiet power supply W/PMbus

• 7 low-profile expansion slot(s)

• 3 x 8cm high-performance PWM fan(s)

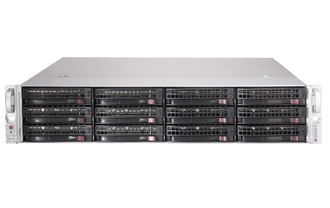

• 2U Storage JBOD Chassis with capacity 12 x 3.5" hot-swappable HDDs bays

• Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput

• 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements

• 1x IPMI port for Remote System Power on/off and system monitoring

• Support NTP for time synchronization & RTC battery backup

• 740W (1+1) 95% efficient Platinum level power supplies

• 3 x 80mm high efficient hot-swappable fans for best system cooling

• Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications

• Qualified SAS HBA / controller:
AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller

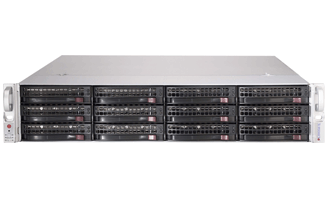

• Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput

• 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements

• 1x IPMI port for Remote System Power on/off and system monitoring

• Support NTP for time synchronization & RTC battery backup

• 600W (1+1) 94% efficient Platinum level power supplies

• 3 x 80mm high efficient hot-swappable fans for best system cooling

• Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications

• Qualified SAS HBA / controller:
AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller
