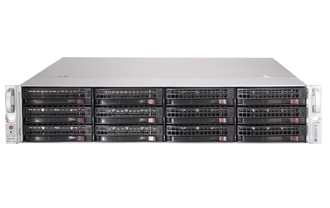

    CSE-826BE2C-R741JBOD

    Print
    Manual

    Key Features

    • • Cloud Backup, Data Replication, or High Density Archive Storage Applications
      2U Storage JBOD Chassis with capacity 12 x 3.5" hot-swappable HDDs bays
    • • Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
    • • 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
    • • 1x IPMI port for Remote System Power on/off and system monitoring
    • • Support NTP for time synchronization & RTC battery backup
    • • 740W (1+1) 95% efficient Platinum level power supplies
    • • 3 x 80mm high efficient hot-swappable fans for best system cooling
    • • Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
    • • Qualified SAS HBA / controller:
      AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
      AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller
    Specifications
    Product SKUs
    CSE-826BE2C-R741JBOD
    • SuperChassis 826BE2C-R741JBOD

    Form Factor
  • 2U JBOD storage chassis
    •
    Dimensions
    Height
    • 3.5" (89 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 25.5" (647 mm)
    Net Weight
    • 29 lbs (13.15 kg)
    Gross Weight
    • 60 lbs (27.22 kg)
    Packaging (W x H x L)
    • 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)
    Available Color
    • Black

    Drive Bays
    • 12 x 3.5" hot-swap drive bay

    Qualified SAS Controllers
    • AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter
    • AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller

    Backplane
    • 12-port 2U SAS3 12Gbps dual-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset Button
    • Unit Identification (UID) button
    LEDs
    • 1 Network Activity LEDs
    Systems Cooling
    Fans
    • 3 x 80x38mm hot-swap cooling fan(s)

    System Monitoring
    • IPMI

    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Power Supply
    1U 740W Redundant Platinum Power Supply W/PMbus
    Power Efficiency
    • 94%
    Total Output Power and Input
    • 740W with Input 100 - 240Vac
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 336 x 76 x 40 mm
    Output Type
    • Backplanes (gold finger)
    -12V
    • Max: NAA
    +12V
    • Max: 61.7A / Min: 0.2A (100Vac - 240Vac)
    +5Vsb
    • Max: 4A / Min: 0A
    +12Vsb
    • Max: NAA
    Power Distributor
    • PDB-PT826-8824
    • O/P: 12V/135
    • +5V Max: 40
    • +3.3V Max: 24
    • -12V Max: 0.6
    Certification
    • Platinum Certified  Platinum Certified

    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • FCC class A
    • TUV/CB
    • UL/CUL
    Parts List
    Standard Parts List
      Part Number Qty Description
    HD BackplaneBPN-SAS3-826EL2112-port 2U SAS3 12Gbps dual-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)
    Control BoardCSE-PTJBOD-CB31JBOD chassis power control board with IPMI remote on/off feature
    Cable(S)CBL-CDAT-060114 Pin to 4 Pin I2C cable, 50cm, 26AWG
    Cable(S)CBL-NTWK-05871INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD
    Cable(S)CBL-SAST-05324Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s
    Cable(S)CBL-SAST-05934Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s
    Part(s)MCP-260-00011-0N1I/O shield without any opening
    Optional Parts List
      Part Number Qty Description
    Cable CBL-SAST-0573 - External mini SAS HD to external mini SAS HD cable 28AWG (1M)
    Cable CBL-SAST-0690-1 - MINI SAS HD,12G,EXT,2M,30AWG,RoHS
    Cable CBL-SAST-0677 - 3m external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH
    HDD Tray MCP-220-00118-0B - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
