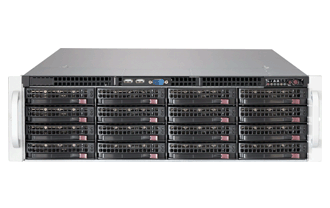

• 3U Storage JBOD Chassis with capacity 16 x 3.5" hot-swappable HDDs bays

• Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput

• 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements

• 1x IPMI port for Remote System Power on/off and system monitoring

• Support NTP for time synchronization & RTC battery backup

• 600W (1+1) 94% efficient Platinum level power supplies

• 5 hot-plug redundant cooling fans

• Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications

• Qualified SAS HBA / controller :
AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller

• 3U Storage JBOD Chassis with capacity 16 x 3.5" hot-swappable HDDs bays

• Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput

• 8x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements

• 1x IPMI port for Remote System Power on/off and system monitoring

• Support NTP for time synchronization & RTC battery backup

• 1000W (1+1) 96% efficient Titanium level power supplies

• 5 hot-plug redundant cooling fans

• Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications

• Qualified SAS HBA / controller :
AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller

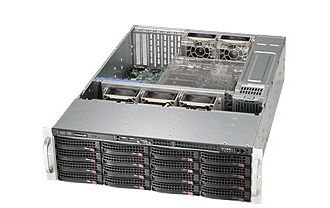

• 3U chassis - supports for maximum motherboard sizes: 13.68" x 13" E-ATX and ATX

• 16 x 3.5" hot-swap drive bay, optional 2 x 2.5" hot-swap drive bay

• 16-port 3U SAS3 12Gbps dual-expander backplane, support up to 16x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)

• 1U 800/1000W Redundant Titanium Single Output Power Supply W/PMbus

• 7 full-height & full-length expansion slot(s)

• 3x 8cm hot-swap redundant PWM cooling fan(s)

• 2x 8cm hot-swap exhaust fan(s) & air shroud

• 3U Storage JBOD Chassis with capacity 16 x 3.5" hot-swappable HDDs bays

• Single Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput

• 4x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements

• 1x IPMI port for Remote System Power on/off and system monitoring

• Support NTP for time synchronization & RTC battery backup

• 600W (1+1) 94% efficient Platinum level power supplies

• 5 hot-plug redundant cooling fans

• Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications

• Qualified SAS HBA / controller :
AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller

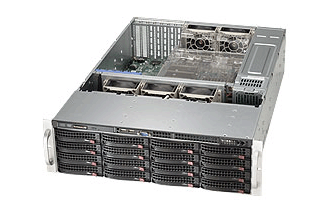

• 3U chassis - supports for maximum motherboard sizes: 13.68" x 13" E-ATX and ATX

• 16 x 3.5" hot-swap SAS/SATA drive bay with SES2, optional 2 x 2.5" hot-swap drive bay

• 16-port 3U SAS3 12Gbps single-expander backplane, support up to 16x 3.5-inch SAS3/SATA3 HDD/SSD

• 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL360xH40mm

• 7 full-height & full-length expansion slot(s)

• 3x 8cm hot-swap redundant PWM cooling fan(s)

• 2x 8cm hot-swap exhaust fan(s) & air shroud

• 3U Storage JBOD Chassis with capacity 16 x 3.5" hot-swappable HDDs bays

• Single Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput

• 4x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements

• 1x IPMI port for Remote System Power on/off and system monitoring

• Support NTP for time synchronization & RTC battery backup

• 1000W (1+1) 96% efficient Titanium level power supplies

• 5 hot-plug redundant cooling fans

• Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications

• Qualified SAS HBA / controller :
AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller

• 3U chassis - supports for maximum motherboard sizes: 13.68" x 13" E-ATX and ATX

• 16 x 3.5" hot-swap SAS/SATA drive bay with SES2, optional 2 x 2.5" hot-swap drive bay

• 16-port 3U SAS3 12Gbps single-expander backplane, support up to 16x 3.5-inch SAS3/SATA3 HDD/SSD

• 1U 800/1000W Redundant Titanium Single Output Power Supply W/PMbus

• 7 full-height & full-length expansion slot(s)

• 3x 8cm hot-swap redundant PWM cooling fan(s)

• 2x 8cm hot-swap exhaust fan(s) & air shroud

• Optimized chassis cooling with redundant cooling fans and adjustable air shroud

• 16x 3.5" hot-swap drive bays supporting SAS2 or SATA3 HDDs with 6Gbps throughput

• Redundant (1+1) 920W Platinum Level (94%) high efficiency power supplies

• Direct Attached SAS2 (6Gbps) backplane

• Up to 20 hot-swap drives with optional slim floppy/DVD sizes and rear 2.5" drive bays

• 800W Redundant High-efficiency Titanium Level Power Supplies

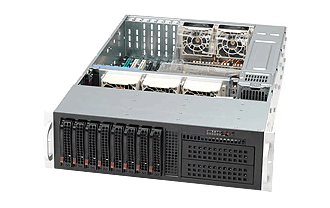

• 8x 3.5" Hot-swap SAS3/SATA3 drive bays, space to support 2x 5.25" Drive Bays & 1x Slim DVD

• Optional hot-swap Slim HDD/SSD drive Kit and Mobile Racks for additional storage

• 7x Full-height, Full-length Expansion Slots

• Five Fans (3 middle, 2 rear) & Adjustable Air Shroud for 100% Cooling Redundancy

• 1000W Redundant High-efficiency Titanium Level Power Supplies

• 8x 3.5" Hot-swap SAS3/SATA3 drive bays; space to support 2x 5.25" Drive Bays & 1x Slim DVD

• Optional hot-swap Slim HDD/SSD drive Kit and Mobile Racks for additional storage

• 7x Full-height, Full-length Expansion Slots

• Five Fans (3 middle, 2 rear) & Adjustable Air Shroud for 100% Cooling Redundancy

• 3U chassis support for motherboard size - E-ATX and ATX.

• 8 x 3.5" hot-swap SAS/SATA, 2 x 5.25" drive bay

• 1U 920W Redundant Platinum Super Quiet power supply W/PMbus

• 7 full-height & full-length expansion slot(s)

• 3x 80mm Hot-swap PWM Fans

• 2x 80mm rear hot-swap exhaust PWM fan(s)

• 920W Redundant High-efficiency Platinum Level (94%+) Power Supplies

• 8x 3.5" Hot-swap SAS2/SATA3, 2x 5.25" Drive Bays & 1x Slim DVD-ROM

• Optional hot-swap Slim HDD/SSD drive Kit and Mobile Racks for additional storage

• 7x Full-height, Full-length Expansion Slots

• Five Fans (3 middle, 2 rear) & Adjustable Air Shroud for 100% Cooling Redundancy

• Note: Full SES2 Support is only available on SAS motherboards
