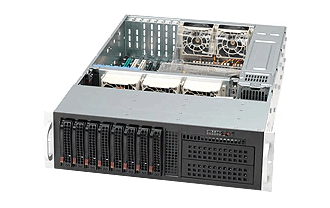

    CSE-835TQC-R802B

    Print
    Manual

    Key Features

    • • 800W Redundant High-efficiency Titanium Level Power Supplies
    • • 8x 3.5" Hot-swap SAS3/SATA3 drive bays, space to support 2x 5.25" Drive Bays & 1x Slim DVD
    • • Optional hot-swap Slim HDD/SSD drive Kit and Mobile Racks for additional storage
    • • 7x Full-height, Full-length Expansion Slots
    • • Five Fans (3 middle, 2 rear) & Adjustable Air Shroud for 100% Cooling Redundancy
    Specifications
    Product SKUs
    CSE-835TQC-R802B
    • SuperChassis 835TQC-R802B

    Form Factor
  • 3U chassis support for motherboard size - E-ATX and ATX.
    •
    Processor Support
  • Dual and Single Intel® and AMD processors
    		•

    Dimensions
    Height
    • 5.2" (132 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 25.5" (647 mm)
    Gross Weight
    • 75 lbs (34.02 kg)
    Packaging (W x H x L)
    • 26.6" (676 mm) x 13" (330 mm) x 33.9" (861 mm)
    Available Color
    • Black

    Expansion Slots
    • 7 full-height & full-length expansion slot(s)

    Drive Bays
    • 8 x 3.5" hot-swap SAS/SATA

    Backplane
    • 3U 8-Port Backplane Supports 8 x 3.5"; SAS3/SATA3 HDD/SSD for X11 Platform

    Peripheral Drives
    • 1 x slim DVD-ROM drive bay

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset Button
    LEDs
    • 2 Network Activity LEDs
    • HDD activity LED
    • Power LED
    • Power Fail LED
    • System Overheat LED
    Systems Cooling
    Fans
    • 3 x 80mm Hot-swap PWM Fans
    • 2 x 80mm rear hot-swap exhaust PWM fan(s)

    System Monitoring
    • Chassis intrusion switch

    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Power Supply
    1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium
    Power Efficiency
    • 96%
    Total Output Power and Input
    • 800W with Input 100 - 240Vac
    • 800W with Input 200 - 240Vdc
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 336 x 76 x 40 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 66A (100Vac - 240Vac)
    • Max: 66A (200 - 240)
    +5Vsb
    • Max: 4A / Min: 0A
    Power Distributor
    • PDB-PT825-8824
    • O/P: 12V/75
    • +5V Max: 30
    • +3.3V Max: 24
    • -12V Max: 0.6
    Certification
    • Titanium Certified  Titanium Certified

    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class A
    • TUV/CB
    • UL/CUL
    Parts List
    Standard Parts List
      Part Number Qty Description
    Air ShroudMCP-310-39001-0N1SC835/836/936 Intel DP X9-X10 PC air shroud 1368x13/12x13MB
    HD BackplaneBPN-SAS3-833A13U 8-Port Backplane Supports 8 x 3.5"; SAS3/SATA3 HDD/SSD for X11 Platform
    Cable(S)CBL-0071L1ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
    Cable(S)CBL-0216L54 TO 4 PIN FAN POWER CABLE, 210MM
    CD-ROM & AccessoryMCP-290-83503-0B1Black DVD dummy cover for SC835, 833
    Fan(s)FAN-0125L4280x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing
    Fan(s)FAN-0126L4380x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
    Drive Tray(s)MCP-220-00009-012Black 5.25"; drive tray w/o rail (square pattern)
    Drive Tray(s)MCP-220-00075-0B8Black gen 5.5 hot-swap 3.5" HDD tray
    Power DistributorPDB-PT825-88241SC825 24PIN REDUNDANT POWER DISTRIBUTOR
    Power Supply & AccessoryPWS-802A-1R21U 800W 100-240Vac/47-63Hz, and DC240 input
    Mounting Rail(s)MCP-290-00053-0N1Rail set, quick/quick, default for 2,3U 17.2";W
    Optional Parts List
      Part Number Qty Description
    Rail MCP-290-00058-0N - Ball bearing quick release rail for shor-depth rack (19"~26.6")
    HDD Tray Converter MCP-220-00118-0B - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
    HDD Kit MCP-220-81506-0N - 12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED
    DVD-ROM / DVD-RW DVM-TEAC-DVD-SBT4 - BLACK TEAC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH
    Mobile Rack CSE-M14TQC - Black SAS3/SATA3 Mobile Rack for 4x 2.5
    Mobile Rack CSE-M28SAB-OEM - Black SAS/SATA Mobile Rack for 8x 2.5" HDD w/o fan module
    Mobile Rack CSE-M28SACB-OEM - Black SAS3/SATA3 Mobile Rack for 8x 2.5" HDD w/o fan module,HF,RoHS/REACH,PBF
    LCD Module MCP-220-00095-0B - Black 5.25 LCD tray wo rail, support 1x 3.5 HDD
    Front Bezel MCP-210-83501-0B - Black Front Bezel for SC835
    Motherboard (for CSE- 835TQC-R802B)
    X11DPL-i
    = Most optimized Chassis for SuperServer Configuration
    Blue color = Compatible
    Green color = Global SKU & Compatible
    Red dot & green color = Optimized + Global SKU
