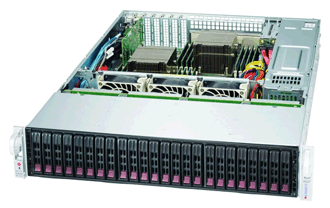

• 2U Chassis for motherboard support size: (ATX 12" x 10") (E. ATX 12" x 13") (E.E. ATX 13.68" x 13")

• 24 x 2.5" hot-swap SAS/SATA drive bay, optional 2 x 2.5" hot-swap drive bay

• 24-port 2U SAS3 12Gbps dual-expander backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)

• 1U 920W Redundant Platinum Super Quiet power supply W/PMbus

• WIO Slots (4x Full-height, Half-length + 3x Low-profile)

• 3x 8cm high-performance PWM fan(s)

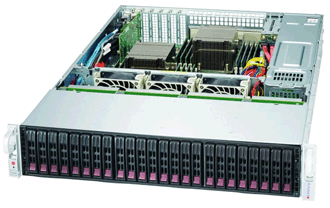

• 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Support up to ATX 12"x13" MB with rear 2.5" HDD option installed

• 24 x 2.5" hot-swap SAS/SATA drive bay, optional 2 x 2.5" hot-swap drive bay

• 24-port 2U SAS3 12Gbps dual-expander backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)

• 1U 920W Redundant Platinum Super Quiet power supply W/PMbus

• 7 low-profile expansion slot(s)

• 3 x 8cm high-performance PWM fan(s)

• Optional 5 x 6cm 4pin high performance fan(s)

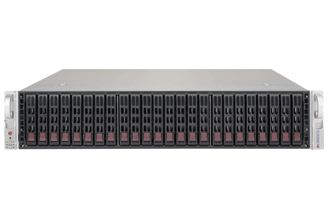

• 2U Storage JBOD Chassis with capacity 24 x 2.5" hot-swappable HDDs bays

• Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput

• 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements

• 1x IPMI port for Remote System Power on/off and system monitoring

• Support NTP for time synchronization & RTC battery backup

• 740W (1+1) 95% efficient Platinum level power supplies

• 3 x 80mm high efficient hot-swappable fans for best system cooling

• Ideal for Cloud backup, data Replication or High density Archive Storage Applications

• Qualified SAS HBA / controller :
OC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller

• 2U Storage JBOD Chassis with capacity 24 x 2.5" hot-swappable HDDs bays

• Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput

• 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements

• 1x IPMI port for Remote System Power on/off and system monitoring

• Support NTP for time synchronization & RTC battery backup

• 600W (1+1) 94% efficient Platinum level power supplies

• 3 x 80mm high efficient hot-swappable fans for best system cooling

• Ideal for Cloud backup, data Replication or High density Archive Storage Applications

• Qualified SAS HBA / controller :
AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller

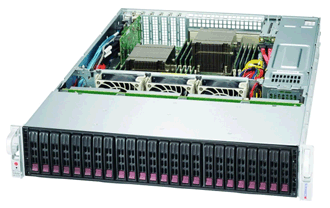

• 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Support up to ATX 12"x13" MB with rear 2.5" HDD option installed

• 24 x 2.5" hot-swap SAS/SATA drive bay, optional 2 x 2.5" hot-swap drive bay

• 24-port 2U SAS3 12Gbps single-expander backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices

• 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL360xH40mm

• 7 low-profile expansion slot(s)

• 3x 8cm high-performance PWM fan(s)

• Optional 5 x 6cm 4pin high performance fan(s)

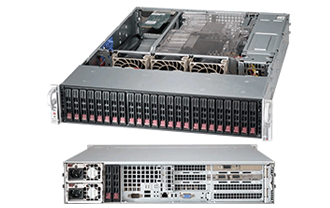

• 2U chassis support for SMC Proprietary WIO motherboards max. motherboard size - 12" x 13", 13" x 13.68". Support up to 12"x13" MB with rear 2.5" HDD option installed

• 24 x 2.5" hot-swap SAS/SATA drive bay, optional 2 x 2.5" hot-swap drive bay

• 24-port 2U SAS3 12Gbps single-expander backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD

• 1U 920W Redundant Platinum Super Quiet power supply W/PMbus

• WIO Slots (4x Full-height, Half-length + 3x Low-profile)

• 3x 8cm high-performance PWM fan(s)

• 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Support up to ATX 12"x13" MB with rear 2.5" HDD option installed

• 24 x 2.5" hot-swap SAS/SATA drive bay, optional 2 x 2.5" hot-swap drive bay

• 24-port 2U SAS3 12Gbps single-expander backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD

• 1U 920W Redundant Platinum Super Quiet power supply W/PMbus

• 7 low-profile expansion slot(s)

• 3x 8cm high-performance PWM fan(s)

• Optional 5 x 6cm 4pin high performance fan(s)

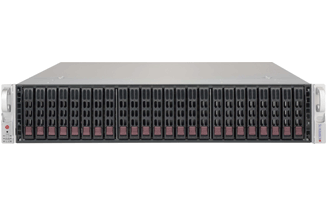

• 2U Storage JBOD Chassis with capacity 24 x 2.5" hot-swappable HDDs bays

• Single Expander Backplane Boards support SAS3/2 or SATA3 HDDs with 12Gb/s throughput

• 4x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements

• 1x IPMI port for Remote System Power on/off and system monitoring

• Support NTP for time synchronization & RTC battery backup

• 740W (1+1) 95% efficient Platinum level power supplies

• 3x 80mm high efficient hot-swappable fans for best system cooling

• Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications

• Qualified SAS HBA / controller :
AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller

• 2U Storage JBOD Chassis with capacity 24 x 2.5" hot-swappable HDDs bays

• Single Expander Backplane Boards support SAS3/2 or SATA3 HDDs with 12Gb/s throughput

• 4x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements

• 1x IPMI port for Remote System Power on/off and system monitoring

• Support NTP for time synchronization & RTC battery backup

• 600W (1+1) 94% efficient Platinum level power supplies

• 3x 80mm high efficient hot-swappable fans for best system cooling

• Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications

• Qualified SAS HBA / controller :
AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller

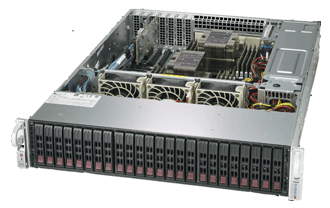

• 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Support up to ATX 12"x13" MB with rear 2.5" HDD option installed

• 24 x 2.5" hot-swap SAS/SATA drive bay, optional 2 x 2.5" hot-swap drive bay

• 24-port 2U SAS3 12Gbps hybrid backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices

• 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm

• 7 low-profile expansion slot(s)

• 3x 8cm high-performance PWM fan(s)

• Optional 5 x 6cm 4pin high performance fan(s)

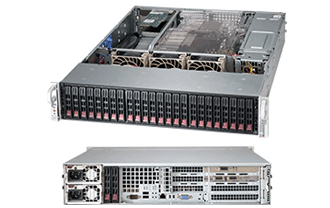

• 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68" with rear 2.5" HDD option installed

• 24 x 2.5" hot-swap SAS/SATA drive bay, optional 2 x 2.5" hot-swap drive bay

• 1U 800/1600W Single Output Power Supply Titanium Level

• 7 low-profile expansion slot(s)

• 3 x 8cm high-performance PWM fan(s)

• 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Support up to ATX 12"x13" MB with rear 2.5" HDD option installed

• 24 x 2.5" hot-swap drive bay, optional 2 x 2.5" hot-swap drive bay

• 24-port 2U SAS3 12Gbps direct-attached backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD

• 1U 920W Redundant Platinum Super Quiet power supply W/PMbus

• 7 low-profile expansion slot(s)

• 3 x 8cm high-performance PWM fan(s)

• Optional 5 x 6cm 4pin high performance fan(s)
