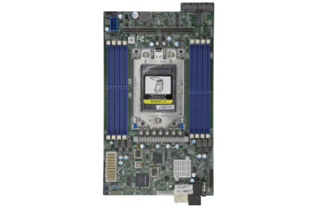

· AMD EPYC™ 7002 series (Rome) Processors
· System on Chip
· 2 TB ECC Registered, DDR4-3200MHz SDRAM in 8 DIMMs
· 2x MCIO PCI-E4.0 x16
M.2 Interface: 2 SATA/PCI-E 4.0 x4
M.2 Form Factor: 22110
M.2 Key: M-Key
· N/A
· 1 25GbE with Mellanox ConnectX-4 Lx EN

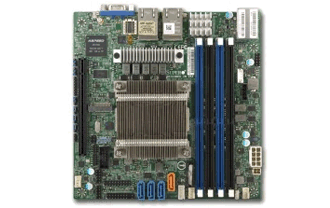

• AMD EPYC™ 3251 SoC Processor, 8 Core/16 Thread, 55W

• Up to 512GB ECC Registered, DDR4-2666MHz SDRAM in 4 DIMMs

• 1 PCI-E 3.0 x16 slot, 1 M.2 PCI-E 3.0 x4, 2280, M Key

• SoC controller for 4 SATA 3.0

• 4 Gigabit Ethernet ports, 1 dedicated IPMI LAN

• ASPEED AST2500 BMC graphics

• Up to 2 USB 3.0 ports, Up to 6 USB 2.0 ports

• 1 COM port, TPM 2.0 header

• 3 fan header, 4-pin type fan header, 3 fans with tachometer monitoring

· Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor
Dual Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
· Intel® C246
· Up to 64GB DDR4 ECC/non-ECC UDIMM, DDR4-2666MHz, in 2 DIMM slots
Up to 64GB ECC VLP UDIMM DDR4-2666Mhz support in 2 DIMM slots per node

· 2x U.2 (PCI-Ex4 only) via backplane per node U.2 Interface: 2 PCI-E 3.0 x4
· Dual LAN with 10Gbase-T
Two(2)10GbE Ethernet ports from KR interface to BP

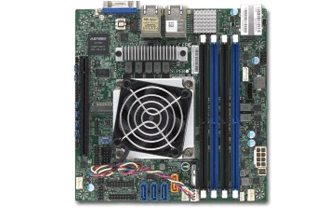

• AMD EPYC™ 3251 SoC Processor, 8 Core/16 Thread, 55W

• Up to 512GB ECC Registered, DDR4-2666MHz SDRAM in 4 DIMMs

• 1 PCI-E 3.0 x16 slot, 1 M.2 PCI-E 3.0 x4, 2280, M Key

• SoC controller for 4 SATA 3.0

• 4 Gigabit Ethernet ports, 1 dedicated IPMI LAN

• ASPEED AST2500 BMC graphics

• Up to 2 USB 3.0 ports, Up to 6 USB 2.0 ports

• 1 COM port, TPM 2.0 header

• 3 fan header, 4-pin type fan header, 3 fans with tachometer monitoring

• AMD EPYC™ 3101 SoC Processor, 4 Core/4 Thread, 35W

• Up to 512GB ECC Registered, DDR4-2666MHz SDRAM in 4 DIMMs

• 1 PCI-E 3.0 x16 slot, 1 M.2 PCI-E 3.0 x4, 2280, M Key

• SoC controller for 4 SATA 3.0

• 4 Gigabit Ethernet ports, 1 dedicated IPMI LAN

• ASPEED AST2500 BMC graphics

• Up to 2 USB 3.0 ports, Up to 6 USB 2.0 ports

• 1 COM port, TPM 2.0 header

• 3 fan header, 4-pin type fan header, 3 fans with tachometer monitoring

• AMD EPYC™ 3151 SoC Processor, 4 Core/8 Thread, 45W

• Up to 512GB ECC Registered, DDR4-2666MHz SDRAM in 4 DIMMs

• 1 PCI-E 3.0 x16 slot, 1 M.2 PCI-E 3.0 x4, 2280, M Key

• SoC controller for 4 SATA 3.0

• 4 Gigabit Ethernet ports, 1 dedicated IPMI LAN

• ASPEED AST2500 BMC graphics

• Up to 2 USB 3.0 ports, Up to 6 USB 2.0 ports

• 1 COM port, TPM 2.0 header

• 3 fan header, 4-pin type fan header, 3 fans with tachometer monitoring
