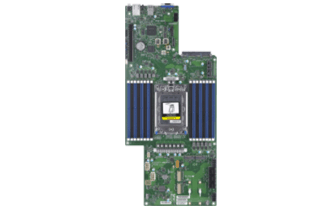

· AMD EPYC™ 7002 series (Rome) Processors, AMD EPYC™ 7002 series and next generation processors
· System on Chip
· 4 TB ECC Registered, DDR4-3200MHz SDRAM in 16 DIMMs

· 1 PCI-E 4.0 x16 for Right riser card support
1 PCI-E 4.0 x16 for Left riser card support
M.2 Interface: 2 SATA/PCI-E 4.0 x4
M.2 Form Factor: 22110
1 PCI-E 4.0 x16 PCI-E 4.0 AOM Slot for AIOM networking

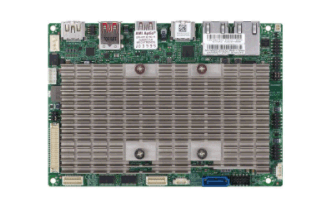

• Intel® Pentium™ Processor N3710., Single Socket FCBGA1170 supported, CPU TDP support 6W

• System-on-Chip

• Up to 8GB 1600MHz DDR3 Non-ECC SO-DIMM in 2 sockets

• 1 PCI-E 2.0 x1 (in x8),
1 Mini-PCIe (mSATA support)

• Dual GbE LAN with Intel® i210-AT

• 1 HDMI, 1 DP, Intel HD Graphics,
VGA port for BMC

• 2 USB 3.0 ports (2 rear), 7 USB 2.0 (2 rear, 4 via header(s), 1 Type A)

• I/O: 1 SATA DOM, 2 COM, TPM 1.2 header, ALC 888S HD Audio

• IPMI 2.0 with dedicated Port and KVM

• Supports 12V DC power input

· Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor
Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
· Intel® C246
· Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
· 1 PCI-E 3.0 x16 slots (16/NA or 8/8)
1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110
· Dual LAN with
Two(2)10GbE Ethernet ports from KR interface to BP

• Single socket H4 (LGA 1151) supports
Intel® Xeon® processor E3-1200 v5/v6,
Intel® 6th/7th Gen. Core™ i7/i5/i3 series,
Intel® Celeron® and Intel® Pentium®
Intel® C236 chipset

• Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots

• 3 PCI-E 3.0 x16 (run at 16/NA/16 or 16/8/8), 1 PCI-E 3.0 x1 (in x4), and 1 5V PCI 32-bit slots

• Single GbE LAN with Intel® i210-AT,
Single GbE LAN with Intel® i219LM

• 6 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10

• I/O: 1 VGA, 1 COM, TPM header

• 6 USB 3.0 (2 rear + 4 via header(s)) ,
4 USB 2.0 (2 rear + 2 via header(s)),
1 USB 3.1 (10Gbps) Type C ports (rear, share with Thunderbolt and display port)

• M.2 NGFF connector

• Intel® Celeron® 6305E Processor

• Up to 96 EU with Intel® Iris® Xe graphics capable of 4K60 resolution

• 4 display support(HDMI2.0b/1.4b, DP1.4 and 48-bit LVDS)

• High-speed connectivity through dual 2.5GbE, 4 USB3.1 gen2, PCIe 4.0 expansion

• Rich I/O and expansion: 4 COM, 8 USB, audio with AMP, triple M.2

• Accelerated AI inferencing and computer vision in parallel without extra hardware

• 100% wide temp grade design and components applied

• 12-24V (10% tolerance) wide range power input support

· 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
Single Socket LGA-3647 (Socket P) supported
· Intel® C622
· Up to 3TB RDIMM; Up to 3TB LRDIMM, in 12 DIMM slots

· PCI-E x16 Expansion for Various I/O Modules
· Dual LAN with
Two(2)10GbE Ethernet ports from KR interface to BP

• Single socket H4 (LGA 1151) supports
Intel® Xeon® processor E3-1200 v5/v6,
Intel® 6th/7th Gen. Core™ i7/i5/i3 series,
Intel® Celeron® and Intel® Pentium®

• Intel® C236 chipset

• Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots

• 3 PCI-E 3.0 x16 (run at 16/NA/16 or 16/8/8), 1 PCI-E 3.0 x1 (in x4), and 1 5V PCI 32-bit slots

• Single GbE LAN with Intel® i210-AT,
Single GbE LAN with Intel® i219LM

• 6 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10

• I/O: 1 COM, TPM header

• 6 USB 3.0 (2 rear + 4 via header(s)) ,
4 USB 2.0 (2 rear + 2 via header(s)),
1 USB 3.1 (10Gbps) Type C ports (rear, share with Thunderbolt and display port)

• M.2 NGFF connector

• Intel® 11th Generation Core™ i5-1145GRE Processor

• Up to 96 EU with Intel® Iris® Xe graphics capable of 4K60 resolution

• 4 display support(HDMI2.0b/1.4b, DP1.4 and 48-bit LVDS)

• High-speed connectivity through dual 2.5GbE, 4 USB3.1 gen2, PCIe 4.0 expansion

• Rich I/O and expansion: 4 COM, 8 USB, audio with AMP, triple M.2

• Accelerated AI inferencing and computer vision in parallel without extra hardware

• 100% wide temp grade design and components applied

• 12-24V (10% tolerance) wide range power input support

· Intel® Xeon® Processor W Family
Single Socket LGA-2066 (Socket R4) supported
· Intel® C422
· Up to 256GB Registered ECC RDIMM; Up to 512GB Registered ECC LRDIMM, in 8 DIMM slots

· PCI-E x16 Expansion for Various I/O Modules
· Dual LAN with Two(2)10GbE Ethernet ports from KR interface to BP

• Single socket H4 (LGA 1151) supports
Intel® Xeon® processor E3-1200 v5/v6,
Intel® 6th/7th Gen. Core™ i7/i5/i3 series,
Intel® Celeron® and Intel® Pentium®

• Intel® C236 chipset

• Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots

• 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x4, and 1x 5V PCI 32-bit slots

• Single GbE LAN with Intel® i210-AT,
Single GbE LAN with Intel® i219LM

• 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCI-E M.2 (support PCI-E x4 only, 2242/2260/2280/22110)

• 6 USB 3.0 (2 rear + 4 via header(s))
6 USB 2.0 (2 rear + 4 via header(s))
2 USB 3.1 (10Gbps, rear)

• Intel® 11th Generation Core™ i7-1185G7E Processor

• Up to 96 EU with Intel® Iris® Xe graphics capable of 4K60 resolution

• 4 display support(HDMI2.0b/1.4b, DP1.4 and 48-bit LVDS)

• High-speed connectivity through dual 2.5GbE, 4 USB3.1 gen2, PCIe 4.0 expansion

• Rich I/O and expansion: 4 COM, 8 USB, audio with AMP, triple M.2

• Accelerated AI inferencing and computer vision in parallel without extra hardware

• 100% wide temp grade design and components applied

• 12-24V (10% tolerance) wide range power input support

• Single socket H4 (LGA 1151) supports
Intel® Xeon® processor E3-1200 v5/v6,
Intel® 6th/7th Gen. Core™ i7/i5/i3 series,
Intel® Celeron® and Intel® Pentium®

• Intel® C236 chipset

• Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2400MHz; 4 DIMM slots

• 2 PCI-E 3.0 x16 (run at 16/NA or 8/8), 2 PCI-E 3.0 x1, and 2 5V PCI 32-bit slots

• Single GbE LAN with Intel® i210-AT (Share with IPMI); single GbE LAN with Intel® i219LM

• 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCI-E M.2 (support PCI-E x4 only, 2242/2260/2280)

• I/O: 1 VGA, 2 COM, TPM header

• 6 USB 3.0 (2 rear + 4 via header(s))
6 USB 2.0 (2 rear + 4 via header(s))
2 USB 3.1 (10Gbps, rear)
