Mother board

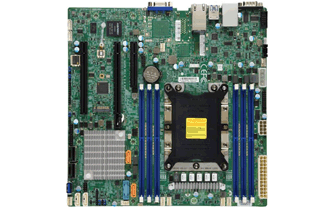

X11SPM-TF

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, , Single Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 165W TDP

• Up to 1.5TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 1.5TB 3DS ECC LRDIMM, DDR4-2933MHz, in 6 DIMM slots;
Up to 1TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake Only)

• Intel® C622 chipset

• Expansion slots: 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 (in x8)

• 2 10GbE LAN ports

• 12 SATA3 (6Gbps) via C622

• Supports 12V DC power input

• I/O: 1 VGA, 2 COM, TPM header

• 5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers)

• M.2 NGFF connector
M.2 Interface: PCI-E 3.0 x4
Form Factor: 2242, 2280
Key: M-Key
Double Height Connector

Learn more →

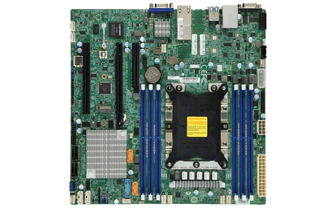

X11SPM-F

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, , Single Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 165W TDP

• Up to 1.5TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 1.5TB 3DS ECC LRDIMM, DDR4-2933MHz, in 6 DIMM slots;
Up to 1TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake Only)

• Intel® C621 Chipset

• Expansion slots: 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 (in x8)

• 2 GbE LAN ports

• 12 SATA3 (6Gbps) via C621

• Supports 12V DC power input

• I/O: 1 VGA, 2 COM, TPM header

• 5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers)

• M.2 NGFF connector
M.2 Interface: PCI-E 3.0 x4
Form Factor: 2242, 2280
Key: M-Key
Double Height Connector

Learn more →

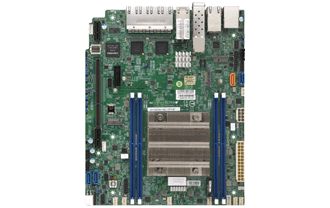

X11SDW-8C-TP13F

• Intel® Xeon® Processor D-2146NT., Single Socket FCBGA-2518 supported, CPU TDP support Up to 80W TDP

• System on Chip

• Up to 256GB Registered ECC RDIMM, DDR4-2133MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2133MHz, in 4 DIMM slots

• 1 PCI-E 3.0 x32 Left Riser Slot
1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110
1 M.2 E-Key PCI-E 3.0 x1, 2230
1 M.2 B-Key SATA/PCI-E 3.0 x2/USB 3.0, 2242/3042

• 1 VGA port, Header Only

• SoC controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Quad LAN with Intel® Ethernet Controller I350-AM4
Dual LAN with 10G SFP+ LAN via SoC
Dual LAN with 10Gbase-T
Quad LAN with 1GbE with Inte® I350-AM4
Single LAN with 1GbE with Intel® I210
Total 13 LAN ports
Single LAN with Realtek RTL8201N PHY (dedicated IPMI)

• Intel Quick Assist Technology

• Supports 12V DC power input

Learn more →
X11SDW-4C-TP13F+

• Intel® Xeon® Processor D-2123IT, Single Socket FCBGA-2518 supported, CPU TDP support Up to 60W TDP

• System on Chip

• Up to 256GB Registered ECC RDIMM, DDR4-2400MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2400MHz, in 4 DIMM slots

• 1 PCI-E 3.0 x32 Left Riser Slot
1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110
1 M.2 E-Key PCI-E 3.0 x1, 2230
1 M.2 B-Key SATA/PCI-E 3.0 x2/USB 3.0, 2242

• 1 VGA port, Header Only

• SoC controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Quad LAN with Intel® Ethernet Controller I350-AM4
Quad LAN with 1GbE with Inte® I350-AM4
Quad LAN with 10G SFP+ LAN via SoC
Single LAN with 1GbE with Intel® I210
Total 13 LAN ports
Single LAN with Realtek RTL8201N PHY (dedicated IPMI)

• Supports 12V DC power input

Learn more →
X11SDW-4C-TP13F

• Intel® Xeon® Processor D-2123IT, Single Socket FCBGA-2518 supported, CPU TDP support Up to 60W TDP

• System on Chip

• Up to 256GB Registered ECC RDIMM, DDR4-2400MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2400MHz, in 4 DIMM slots

• 1 PCI-E 3.0 x32 Left Riser Slot
1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110
1 M.2 E-Key PCI-E 3.0 x1, 2230
1 M.2 B-Key SATA/PCI-E 3.0 x2/USB 3.0, 2242/3042

• 1 VGA port, Header Only

• SoC controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Dual LAN with 10G SFP+ LAN via SoC
Dual LAN with 10Gbase-T
Quad LAN with Intel® Ethernet Controller I350-AM4
Quad LAN with 1GbE with Inte® I350-AM4
Single LAN with 1GbE with Intel® I210
Total 13 LAN ports
Single LAN with Realtek RTL8211E PHY (dedicated IPMI)

• Supports 12V DC power input

Learn more →
X11SDW-16C-TP13F+

• Intel® Xeon® Processor D-2183IT, Single Socket FCBGA-2518 supported, CPU TDP support Up to 100W TDP

• System on Chip

• Up to 256GB Registered ECC RDIMM, DDR4-2400MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2400MHz, in 4 DIMM slots

• 1 PCI-E 3.0 x32 Left Riser Slot
1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110
1 M.2 E-Key PCI-E 3.0 x1, 2230
1 M.2 B-Key SATA/PCI-E 3.0 x2/USB 3.0, 2242

• 1 VGA port, Header Only

• SoC controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Quad LAN with Intel® Ethernet Controller I350-AM4
Quad LAN with 1GbE with Inte® I350-AM4
Quad LAN with 10G SFP+ LAN via SoC
Single LAN with 1GbE with Intel® I210
Total 13 LAN ports
Single LAN with Realtek RTL8201N PHY (dedicated IPMI)

• Supports 12V DC power input

Learn more →
X11SDW-16C-TP13F

• Intel® Xeon® Processor D-2183IT, Single Socket FCBGA-2518 supported, CPU TDP support Up to 100W TDP

• System on Chip

• Up to 256GB Registered ECC RDIMM, DDR4-2400MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2400MHz, in 4 DIMM slots

• 1 PCI-E 3.0 x32 Left Riser Slot
1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110
1 M.2 E-Key PCI-E 3.0 x1, 2230
1 M.2 B-Key SATA/PCI-E 3.0 x2/USB 3.0, 2242

• 1 VGA port, Header Only

• SoC controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Quad LAN with Intel® Ethernet Controller I350-AM4
Quad LAN with 1GbE with Inte® I350-AM4
Dual LAN with 10G SFP+ LAN via SoC
Dual LAN with 10Gbase-T
Single LAN with 1GbE with Intel® I210
Total 13 LAN ports
Single LAN with Realtek RTL8201N PHY (dedicated IPMI)

• Supports 12V DC power input

Learn more →
X11SDW-14CNT-TP13F

• Intel® Xeon® Processor D-2177NT, Single Socket FCBGA-2518 supported, CPU TDP support 105W TDP

• System on Chip

• Up to 256GB Registered ECC RDIMM, DDR4-2666MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2666MHz, in 4 DIMM slots

• 1 PCI-E 3.0 x32 Left Riser Slot
1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110
1 M.2 E-Key PCI-E 3.0 x1, 2230
1 M.2 B-Key SATA/PCI-E 3.0 x2/USB 3.0, 2242/3042

• 1 VGA port, Header Only

• SoC controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Quad LAN with Intel® Ethernet Controller I350-AM4
Dual LAN with 10G SFP+ LAN via SoC
Dual LAN with 10Gbase-T
Quad LAN with 1GbE with Inte® I350-AM4
Single LAN with 1GbE with Intel® I210
Total 13 LAN ports
Single LAN with Realtek RTL8201N PHY (dedicated IPMI)

• Intel Quick Assist Technology

• Supports 12V DC power input

Learn more →
X11SDW-14CN-TP13F+

• Intel® Xeon® Processor D-2177NT, Single Socket FCBGA-2518 supported, CPU TDP support 105W TDP

• System on Chip

• Up to 256GB Registered ECC RDIMM, DDR4-2400MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2400MHz, in 4 DIMM slots

• 1 PCI-E 3.0 x32 Left Riser Slot
1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110
1 M.2 E-Key PCI-E 3.0 x1, 2230
1 M.2 B-Key SATA/PCI-E 3.0 x2/USB 3.0, 2242

• 1 VGA port, Header Only

• SoC controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Quad LAN with Intel® Ethernet Controller I350-AM4
Quad LAN with 1GbE with Inte® I350-AM4
Quad LAN with 10G SFP+ LAN via SoC
Single LAN with 1GbE with Intel® I210
Total 13 LAN ports
Single LAN with Realtek RTL8201N PHY (dedicated IPMI)

• Supports 12V DC power input

Learn more →
X11SDW-14C-TP13F

• Intel® Xeon® Processor D-2173IT, Single Socket FCBGA-2518 supported, CPU TDP support 70W TDP

• System on Chip

• Up to 256GB Registered ECC RDIMM, DDR4-2133MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2133MHz, in 4 DIMM slots

• 1 PCI-E 3.0 x32 Left Riser Slot
1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110
1 M.2 E-Key PCI-E 3.0 x1, 2230
1 M.2 B-Key SATA/PCI-E 3.0 x2/USB 3.0, 2242

• 1 VGA port, Header Only

• SoC controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Quad LAN with Intel® Ethernet Controller I350-AM4
Quad LAN with 1GbE with Inte® I350-AM4
Dual LAN with 10G SFP+ LAN via SoC
Dual LAN with 10Gbase-T
Single LAN with 1GbE with Intel® I210
Total 13 LAN ports
Single LAN with Realtek RTL8201N PHY (dedicated IPMI)

• Supports 12V DC power input

Learn more →
X11SDW-12C-TP13F

• Intel® Xeon® Processor D-2163IT., Single Socket FCBGA-2518 supported, CPU TDP support Up to 75W TDP

• System on Chip

• Up to 256GB Registered ECC RDIMM, DDR4-2400MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2400MHz, in 4 DIMM slots

• 1 PCI-E 3.0 x32 Left Riser Slot
1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110
1 M.2 E-Key PCI-E 3.0 x1, 2230
1 M.2 B-Key SATA/PCI-E 3.0 x2/USB 3.0, 2242

• 1 VGA port, Header Only

• SoC controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Quad LAN with Intel® Ethernet Controller I350-AM4
Quad LAN with 1GbE with Inte® I350-AM4
Dual LAN with 10G SFP+ LAN via SoC
Dual LAN with 10Gbase-T
Single LAN with 1GbE with Intel® I210
Total 13 LAN ports
Single LAN with Realtek RTL8201N PHY (dedicated IPMI)

• Supports 12V DC power input

Learn more →
X11SDV-8C-TP8F

• Intel® Xeon® Processor D-2146NT, CPU TDP support Up to 80W TDP

• System on Chip

• Up to 256GB Registered ECC RDIMM, DDR4-2133MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2133MHz, in 4 DIMM slots

• 1 PCI-E 3.0 x8,
1 PCI-E 3.0 x16
1 Mini-PCI-E,
2 PCI-E 3.0 NVMe x4 Internal Port(s)
1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280
1 M.2 B-Key SATA/PCI-E 3.0 x2, 3042
U.2 Interface: 2 PCI-E 3.0 x4

• 1 VGA D-Sub Connector port

• SoC controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Quad LAN with Intel® Ethernet Controller I350-AM4
Dual LAN with 10G SFP+ LAN via SoC
Dual LAN with 10Gbase-T

• Intel Quick Assist Technology

• Supports 12V DC power input

Learn more →
