• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s

• Intel® C624

• Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 3TB 3DS ECC LRDIMM, DDR4-2933MHz, in 12 DIMM slots;
Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only)

• 2 PCI-E 3.0 x16 Left Riser Slot
M.2 Interface: 1 PCI-E 3.0 x4
M.2 Form Factor: 2242/2260/2280
M.2 Key: M-Key

• 1 VGA D-Sub Connector port

• Intel® PCH SATA controller for

• Dual LAN with 10GBase-T with Intel® X557

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s

• Intel® C627

• Up to 6TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 6TB 3DS ECC LRDIMM, DDR4-2933MHz, in 24 DIMM slots;
Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only)

• 1 PCI-E 3.0 x32 Left Riser Slot,
2 PCI-E 3.0 x4 (Low Profile),
4 PCI-E 3.0 x16

• 1 VGA D-Sub Connector port

• Intel® C627 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Dual LAN with 10GBase-T with Intel® X550

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, , Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s

• Intel® C621

• Up to 6TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 6TB 3DS ECC LRDIMM, DDR4-2933MHz
Or 2TB DCPMM, DDR4-2666MHz, in 24 DIMM slots;
Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only).

• Networking options provide via SIOM or AOC NIC

• Intel® C621 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog

• 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x8+x8 for SAS3 Add-On-Module

• 4 PCI-E 3.0 NVMe x4 Internal Port(s)

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s

• Intel® C621

• Up to 6TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 6TB 3DS ECC LRDIMM, DDR4-2933MHz, in 24 DIMM slots;
Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only).

• 1 PCI-E 3.0 x32 Left Riser Slot,
1 PCI-E 3.0 x8 Right Riser Slot,
1 PCI-E 3.0 x40 Far Right Riser Slot,
4 PCI-E 3.0 NVMe x4 Internal Port(s)

• 1 VGA port

• Intel® C621 controller for 10 SATA3 (6 Gbps) ports; SATA3 (6 Gbps) RAID 0,1,5,10

• Networking options provided via Ultra Riser

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s

• Intel® C621

• Up to 6TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 6TB 3DS ECC LRDIMM, DDR4-2933MHz, in 24 DIMM slots;
Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only).

• 1 PCI-E 3.0 x32 Left Riser Slot,
1 PCI-E 3.0 x8 Right Riser Slot,
1 PCI-E 3.0 x40 Far Right Riser Slot,
4 PCI-E 3.0 NVMe x4 Internal Port(s)

• 1 VGA port

• Intel® C621 controller for 10 SATA3 (6 Gbps) ports; SATA3 (6 Gbps) RAID 0,1,5,10

• Networking options provided via Ultra Riser

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s

• Intel® C621

• Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots

• 1 PCI-E 3.0 x32 Left Riser Slot,
1 PCI-E 3.0 x8 Center Right Riser Slot,
1 PCI-E 3.0 x40 Far Right Riser Slot,
4 PCI-E 3.0 NVMe x4 Internal Port(s)

• 1 VGA port

• Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Networking options provided via Ultra Riser

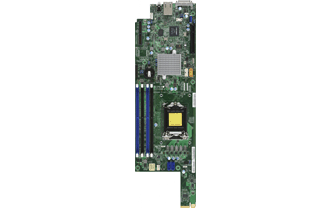

• Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series,
Intel® Celeron® and Intel® Pentium®

• Intel® C236 chipset

• Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots

• Expansion slots:
1 PCI-E 3.0 x8 (in x16),
1 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8)
4 5V PCI 32-bit slots

• Dual GbE LAN with Intel® i210-AT

• 6 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10

• I/O: 1 VGA, 2 COM, TPM header

• 2 SuperDOM with built-in power

• 5 USB 3.0 (2 rear, 2 via header(s), 1 Type A), 6 USB 2.0 (2 rear, 4 via header(s))

• M.2 NGFF connector
M.2 Interface: PCI-E 3.0 x4 and SATA
Form Factor: 2242, 2260, 2280, 22110
Key: M-Key
Double Height Connector

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, , Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s

• Up to 6TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 6TB 3DS ECC LRDIMM, DDR4-2933MHz, in 24 DIMM slots;
Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only).

• 2 VGA D-Sub Connector ports

• Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Networking options provided via Ultra Riser

• 1 PCI-E 3.0 x32 Left Riser Slot
1 PCI-E 3.0 x8 Right Riser Slot
1 PCI-E 3.0 x40 Ultra Riser Slot
4 PCI-E 3.0 NVMe x4 Internal Port(s)

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, , Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s

• Intel® C621

• Up to 6TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 6TB 3DS ECC LRDIMM, DDR4-2933MHz, in 24 DIMM slots;
Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only).

• 2 VGA D-Sub Connector ports

• Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• 1 PCI-E 3.0 x32 Left Riser Slot
1 PCI-E 3.0 x8 Right Riser Slot
1 PCI-E 3.0 x40 Ultra Riser Slot
4 PCI-E 3.0 NVMe x4 Internal Port(s)

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,

• Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 165W TDP, 2 UPI up to 10.4 GT/s

• Intel® C621

• Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz
Or 2TB DCPMM, DDR4-2666MHz, in 16 DIMM slotsUp to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only)

• 1 PCI-E 3.0 x16 Right Riser Slot,
1 PCI-E 3.0 x24 riser,
1 PCI-E 3.0 x16 connector for SMC add-on cards,
1 PCI-E 3.0 x8 connector for SMC add-on cards
PCI-E 3.0 x16 SIOM LAN Networking slot

• 1 VGA port

• Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Single LAN with
Networking options provided via SIOM module

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 140W TDP, 2 UPI up to 10.4 GT/s

• Intel® C621

• Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots

• 1 PCI-E 3.0 x16

• 1 VGA D-Sub Connector port

• Intel® C621 controller for 2 SATA3 (6 Gbps) ports; RAID 0,1,5,10
• Dual LAN with 1GbE with Marvell® 88E1512

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s

• Intel® C621

• Up to 6TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 6TB 3DS ECC LRDIMM, DDR4-2933MHz
Or 6TB DCPMM, DDR4-2666MHz, in 24 DIMM slots;
Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);

• 1 PCI-E 3.0 x16 Left Riser Slot,
1 PCI-E 3.0 x16 Right Riser Slot
1 PCI-E 3.0 x24 Proprietary Slot (for Supermicro storage add-on card),
1 PCI-E 3.0 x16 SIOM LAN Networking Slot,
1 PCI-E 3.0 x8 Proprietary Slot (For M.2 add-on card)

• 1 VGA port

• Intel® C621 controller for SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Single LAN with
Networking option provided via SIOM module
