Mother board

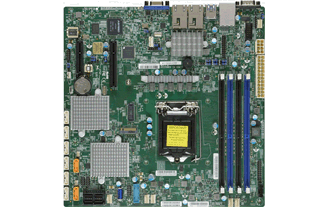

X11SSH-TF

• Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium®

• Intel® C236 chipset

• Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots

• Expansion slots:
1 PCI-E 3.0 x8, 1 PCI-E 3.0 x2 (in x4)

• Dual 10GBase-T LAN with Intel® X550

• 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10

• I/O: 1 VGA, 2 COM, TPM header

• 2 SuperDOM with built-in power

• 5 USB 3.0 (2 rear, 2 via header(s), 1 Type A), 6 USB 2.0 (2 rear, 4 via header(s))

• M.2 NGFF connector
M.2 Interface: SATA and PCI-E 3.0 x4
Form Factor: 2260
Key: M-Key
Double Height Connector

Learn more →
Global Sku

X11SSH-LN4F

• Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium®

• Intel® C236 chipset

• Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots

• Expansion slots:
1 PCI-E 3.0 x8 (in x16),
1 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8)

• Quad GbE LAN with Intel® i210-AT

• 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10

• I/O: 1 VGA, 2 COM, TPM header

• Support Intel® VHD with selected CPU

• 5 USB 3.0 (2 rear, 2 via header(s), 1 Type A), 6 USB 2.0 (2 rear, 4 via header(s))

• M.2 NGFF connector
M.2 Interface: PCI-E 3.0 x2
Form Factor: 2280
Key: M-Key
Double Height Connector

Learn more →

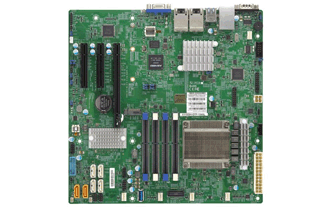

X11SSH-GTF-1585L

• Intel® Xeon® processor E3-1585L v5, Single socket FCBGA 1440, 4-Core, 8 Threads, 45W

• Intel® C236 chipset

• Up to 64GB ECC Unbuffered SO-DIMM, DDR4 2133MHz; 4 DIMM slots

• Dual 10GBase-T LAN with Intel® X550

• Support Intel® Iris Pro Graphics P580 (GT4e) , for VHD and Quick Sync Video

• Expansion slots:
1 PCI-E 3.0 x8 (in x16),
1 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8)

• 6 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10

• 2 SuperDOM with built-in power

• 5 USB 3.0 (2 rear, 1 Type A, 2 internal)

• M.2 NGFF connector
M.2 Interface: PCI-E 3.0 x4 and SATA
Form Factor: 2242, 2280, 22110
Key: M-Key
Double Height Connector

Learn more →

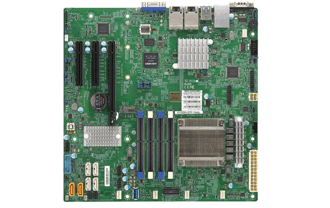

X11SSH-GTF-1585

• Intel® Xeon® processor E3-1585 v5, Single socket FCBGA 1440, 4-Core, 8 Threads, 65W

• Intel® C236 chipset

• Up to 64GB ECC Unbuffered SO-DIMM, DDR4 2133MHz; 4 DIMM slots

• Dual 10GBase-T LAN with Intel® X550

• Support Intel® Iris Pro Graphics P580 (GT4e) , for VHD and Quick Sync Video

• Expansion slots:
1 PCI-E 3.0 x8 (in x16),
1 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8)

• 6 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10

• 2 SuperDOM with built-in power

• 5 USB 3.0 (2 rear, 1 Type A, 2 internal)

•M.2 NGFF connector
M.2 Interface: PCI-E 3.0 x4 and SATA
Form Factor: 2242, 2280, 22110
Key: M-Key
Double Height Connector

Learn more →
X11SSH-GF-1585L

• Intel® Xeon® processor E3-1585L v5, Single socket FCBGA 1440, 4-Core, 8 Threads, 45W

• Intel® C236 chipset

• Up to 64GB ECC Unbuffered SO-DIMM, DDR4 2133MHz; 4 DIMM slots

• Support Intel® Iris Pro Graphics P580 (GT4e) for VHD and Quick Sync Video

• Expansion slots:
1 PCI-E 3.0 x8 (in x16),
1 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8)

• 6 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10

• 2 SuperDOM with built-in power

• 5 USB 3.0 (2 rear, 1 Type A, 2 internal)

• M.2 NGFF connector
M.2 Interface: PCI-E 3.0 x4 and SATA
Form Factor: 2242, 2280, 22110
Key: M-Key
Double Height Connector

Learn more →

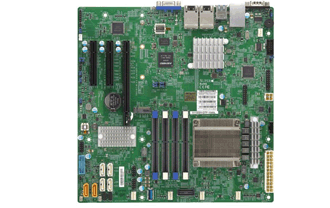

X11SSH-GF-1585

• Intel® Xeon® processor E3-1585 v5,Single socket FCBGA 1440, 4-Core, 8 Threads, 65W

• Intel® C236 chipset

• Up to 64GB ECC Unbuffered SO-DIMM, DDR4 2133MHz; 4 DIMM slots

• Support Intel® Iris Pro Graphics P580 (GT4e) for VHD and Quick Sync Video

• Expansion slots:
1 PCI-E 3.0 x8 (in x16),
1 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8)

• 6 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10

• 2 SuperDOM with built-in power

• 5 USB 3.0 (2 rear, 1 Type A, 2 internal)

• M.2 NGFF connector
M.2 Interface: PCI-E 3.0 x4 and SATA
Form Factor: 2242, 2280, 22110
Key: M-Key
Double Height Connector

Learn more →
Global Sku

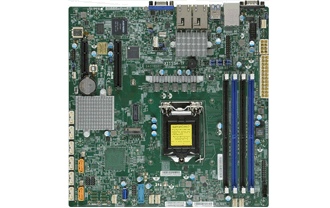

X11SSH-F

• Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium®

• Intel® C236 chipset

• Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots

• Expansion slots:
1 PCI-E 3.0 x8 (in x16),
1 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8)

• Dual GbE LAN with Intel® i210-AT

• 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10

• I/O: 1 VGA, 2 COM, TPM header

• Support Intel® VHD with selected CPU

• 5 USB 3.0 (2 rear, 2 via header(s), 1 Type A), 6 USB 2.0 (2 rear, 4 via header(s))

• M.2 NGFF connector
M.2 Interface: PCI-E 3.0 x2
Form Factor: 2280
Key: M-Key
Double Height Connector

Learn more →
X11SSH-CTF

• Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium®

• Intel® C236 chipset

• Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots

• Expansion slots: 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x2 (in x4)

• Dual 10GBase-T LAN with Intel® X550

• 8 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10

• 8 SAS3 (12Gbps) via Broadcom® 3008; RAID 0, 1, 10

• I/O: 1 VGA, 2 COM, TPM header

• 5 USB 3.0 (2 rear, 2 via header(s), 1 Type A), 6 USB 2.0 (2 rear, 4 via header(s))

• M.2 NGFF connector
M.2 Interface: SATA and PCI-E 3.0 x4
Form Factor: 2260
Key: M-Key
Double Height Connector

Learn more →
X11SSE-F

• Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series,Intel® Celeron® and Intel® Pentium®

• Intel® C236 chipset

• Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots

• Expansion slots: 1 PCI-E 3.0 x8 (micro low-profile)

• 4 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10

• I/O: 1 VGA, 1 COM, TPM header, 2 NVMExpress internal ports

• 1 SuperDOM with built-in power

• 1 USB 3.0 (Type A), 2 USB 2.0 (rear)

Learn more →

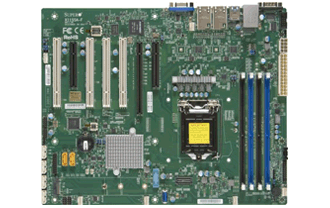

X11SSA-F

• Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium®

• Intel® C236 chipset

• Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots

• Expansion slots:
1 PCI-E 3.0 x8 (in x16),
1 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8)
4 5V PCI 32-bit slots

• Dual GbE LAN with Intel® i210-AT

• 6 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10

• I/O: 1 VGA, 2 COM, TPM header

• 2 SuperDOM with built-in power

• 5 USB 3.0 (2 rear, 2 via header(s), 1 Type A), 6 USB 2.0 (2 rear, 4 via header(s))

• M.2 NGFF connector
M.2 Interface: PCI-E 3.0 x4 and SATA
Form Factor: 2242, 2260, 2280, 22110
Key: M-Key
Double Height Connector

Learn more →

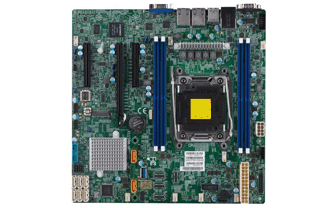

X11SRM-VF

• Intel® Xeon® W-2100 Processors, Intel® Xeon® W-2200 Processors, Single Socket LGA-2066 (Socket R4) supported, CPU TDP support Up to 165W TDP

• Intel® C422

• Up to 256GB ECC RDIMM, DDR4-2933MHz; Up to 512GB ECC LRDIMM, DDR4-2933MHz, in 4 DIMM slots

• 1 PCI-E 3.0 x16,
2 PCI-E 3.0 x8,
4 PCI-E 3.0 NVMe x4 Internal Port(s)
M.2 Interface: 1 PCI-E 3.0 x4
M.2 Form Factor: 2280
M.2 Key: M-Key
Double Height Connector

• Dual LAN with Intel® i210 Gigabit Ethernet Controller

• Intel® VROC

Learn more →

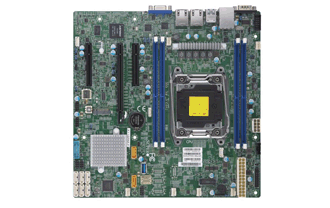

X11SRM-F

• Intel® Xeon® W-2100 Processors, Intel® Xeon® W-2200 Processors, Single Socket LGA-2066 (Socket R4) supported, CPU TDP support Up to 165W TDP

• Intel® C422

• Up to 256GB ECC RDIMM, DDR4-2933MHz; Up to 512GB ECC LRDIMM, DDR4-2933MHz, in 4 DIMM slots

• 1 PCI-E 3.0 x16,
2 PCI-E 3.0 x8
M.2 Interface: 1 PCI-E 3.0 x4
M.2 Form Factor: 2280
M.2 Key: M-Key
Double Height Connector

• Dual LAN with Intel® i210 Gigabit Ethernet Controller

• Intel® C422 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Intel® VROC

Learn more →
