• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
Octal Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s

• Intel® C621

• Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz
Or 3TB DCPMM, DDR4-2666MHz, in 12 DIMM slotsMaximum System Capacity (8 CPU modules, 96 DIMM slots):;
Up to 24TB ECC DDR4 @ 2933 MHz RDIMM/LRDIMM;
,Up to 24TB Intel® Optane™ DC Persistent Memory;
, Up to 36TB combined memory (DDR4and Optane DCPMM).

• 2 PCI-E 3.0 x16
M.2 Interface: 2 SATA/PCI-E 3.0 x4, RAID 0 & 1
M.2 Form Factor: 2260/2280/22110
(M.2 slots on PCH board)
U.2 Interface: 4 PCI-E 3.0 x4,
4 PCI-E 3.0 NVMe x4 Internal Port(s)

• 1 VGA D-Sub Connector port,
(on PCH board)

• Intel® C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
(on Storage board)

• Quad LAN with Intel® X550 10GBase-T Ethernet Controller
(on PCH board)

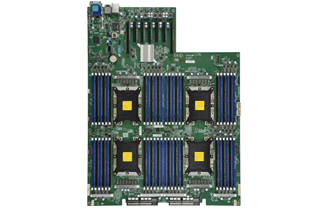

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s

• Intel® C621

• Up to 12TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 12TB 3DS ECC LRDIMM, DDR4-2933MHz
Or 12TB 3DS ECC DCPMM, DDR4-2666MHz, in 48 DIMM slots

• 5 PCI-E 3.0 x8,
2 PCI-E 3.0 x16
M.2 Interface: 2 SATA/PCI-E 3.0 x4
M.2 Form Factor: 2280/22110
M.2 Key: M-Key,
8 PCI-E 3.0 NVMe x4 External Port(s)

• 1 VGA port

• Intel® C621 controller for 2 SATA3 (6 Gbps) ports; RAID 0,1

• Single LAN with GbE from C621

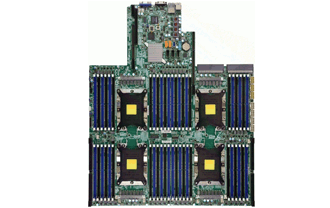

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
Quad Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s

• Intel® C621

• Up to 12TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 12TB 3DS ECC LRDIMM, DDR4-2933MHz
Or 12TB 3DS ECC DCPMM, DDR4-2666MHz, in 48 DIMM slots

• 1 PCI-E 3.0 x32 Left Riser. 1 PCI-E 3.0 x40 Ultra Riser. 1 PCI-E 3.0 x8 in x16 slot rear Middle Riser. 1 PCI-E 3.0 x32 for 2U (or x48+x8 for 4U) on front for NVMe card support. 1 PCI-E 3.0 (x32 for 2U or x48 for 4U) on front for NVMe card support.

• 1 VGA port

• Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Networking options provided via Ultra Riser

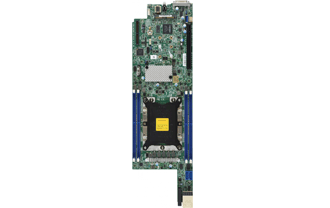

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
Single Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 165W TDP

• Intel® C621

• Up to 1TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 512GB ECC LRDIMM, DDR4-2933MHz, in 4 DIMM slots

• 1 PCI-E 3.0 x8 (Micro Low Profile),
1 PCI-E 3.0 x16
M.2 Interface: 2 SATA/PCI-E 3.0 x4
M.2 Form Factor: 2280
M.2 Key: M-Key

• 1 VGA port, via KVM Connector

• Intel® C621 controller for 2 SATA3 (6 Gbps) ports;

• Single LAN with Realtek RTL8211E PHY (dedicated IPMI) via Backplane

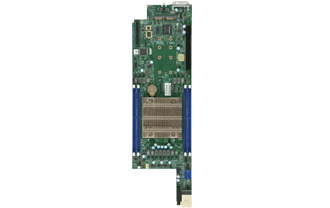

• Intel® Xeon® Processor D-2141I., Single Socket FCBGA2518 supported, CPU TDP support 65W

• System on Chip

• Up to 256GB ECC RDIMM, DDR4-2133MHz; Up to 512GB ECC LRDIMM, in 4 DIMM slots

• 1 PCI-E 3.0 x16,
1 PCI-E 3.0 x8 (Micro Low Profile)
2 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2260/2280/22110,
2 PCI-E 3.0 NVMe x4 External Port(s)

• 2 SATA3 (6 Gbps) ports;

• Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI) via Backplane

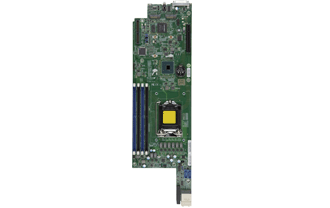

• Single socket H4 (LGA 1151) supports Intel® Xeon® processor E-2100, E-2200, Intel® 8th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium®

• Intel® C246 chipset

• Up to 128GB Unbuffered ECC UDIMM DDR4 2666 MHz; 4 DIMM slot

• 2 SATA (6Gbps)

• 1 M.2 M-key SATA/PCI-E 3.0 x4 2242/2280, 1 M.2 M-key SATA/PCI-E 3.0 x4 2242/2280/22110

• 1 VGA, 2 USB 2.0, 1 COM via KVM dongle

· AMD EPYC™ 7000 Series
· System on Chip
· 4TB ECC Registered, DDR4-2666MHz SDRAM in 32 DIMMs
· 8-channel memory bus
· 1 PCI-E 3.0 x32 Left Riser Slot
· 1 PCI-E 3.0 x16 Right Riser Slot
· 1 PCI-E 3.0 x40 Far Right Riser Slot
· SATA3 (6 Gbps)14 SATA3 (6 Gbps) ports;
· 1 Realtek RTL8211F PHY (dedicated IPMI)

• 10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® W-1200 Processors
Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP

• Intel® W480

• 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots

• 1 PCI-E 3.0 x4,
2 PCI-E 3.0 x16 slots (16/NA or 8/8)
1 - 5V PCI 32bit
M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1
M.2 Form Factor: 2280/22110
M.2 Key: M-Key

• 1 DP (DisplayPort) port, 1 HDMI port, 1 DVI - D port, 1 VGA port,
VGA port is dedicated for IPMI

• Intel® W480 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Single LAN with Intel® PHY I219LM LAN controller
for AMT/vPro
Single LAN with Intel® Ethernet i225LM

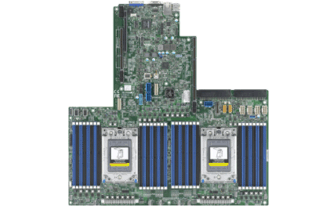

· AMD EPYC™ 7002 series (Rome) Processors, AMD EPYC™ 7002 series and next generation processors
System on Chip
· 8 TB ECC Registered, DDR4-3200MHz SDRAM in 32 DIMMs
· 1 PCI-E 4.0 x32 Left Riser Slot
1 PCI-E 4.0 x16 Right Riser Slot
1 PCI-E 4.0 x40 Far Right Riser Slot
· SATA3 (6 Gbps)16 SATA3 (6 Gbps) ports;
· 1 Realtek RTL8211F PHY (dedicated IPMI)

• 10th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® W-1200 Processors
Single Socket LGA-1200 (Socket H5) supported, CPU TDP support Up to 125W TDP

• Intel® W480

• 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots

• 1 PCI-E 3.0 x4,
2 PCI-E 3.0 x16 slots (16/NA or 8/8),
1 PCI-E 3.0 x1
1 - 5V PCI 32bit
M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1
M.2 Form Factor: 2280/22110
M.2 Key: M-Key

• 1 DP (DisplayPort) port, 1 HDMI port, 1 DVI - D port

• Intel® W480 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Single LAN with Intel® PHY I219LM LAN controller
for AMT/vPro
Single LAN with Intel® Ethernet i225V

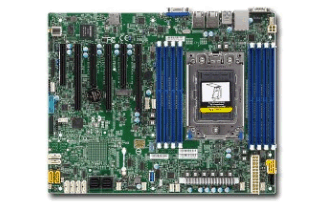

· AMD EPYC™ 7000 Series, AMD EPYC™ 7001 series (Naples) Processors
· System on Chip
· 1 TB ECC Registered, DDR4-2666MHz SDRAM in 8 DIMMs
8-channel memory bus
· 3 PCI-E 3.0 x16
3 PCI-E 3.0 x8
M.2 Interface: 1 PCI-E 3.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-Key
· SATA3 (6 Gbps)16 SATA3 (6 Gbps) ports;
· 2 1GbE with Intel® I210,
1 Realtek RTL8211F PHY (dedicated IPMI)

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, , Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s

• Intel® C621

• Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz
Or 2TB DCPMM, DDR4-2666MHz, in 16 DIMM slots;
Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only).

• 6 PCI-E 3.0 x16,
1 PCI-E 3.0 x4 (in x8 slot)
M.2 Interface: PCI-E 3.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-Key

• Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog

• Dual LAN with Intel® X550 10GBase-T Ethernet Controller

• Integrated IPMI 2.0 and KVM with Dedicated LAN

• 5 USB 3.0 ports, 4 USB 2.0 ports

• HD Audio with optical S/PDIF
