    SYS-620P-TRT

    Print

    Key Features

    • Key Applications
      - Virtualization
      - Enterprise Server
      - Data Center Optimized
      - Application and data serving
      - Model analysis
      - Compute Intensive Applications

      Key Features
      1. Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
      CPU TDP supports Up to 270W TDP
      3 UPI up to 11.2 GT/s
    • 2. Intel® C621A Chipset
    • 3. Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz_x000D_
      Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz_x000D_
      Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slots_x000D_ (P1-DIMMB2 and P2-DIMMB2 are reserved for Intel® Optane Persistent Memory 200 Series only)
    • 4. 4 PCI-E 4.0 x16 Low Profile (LP)
      2 PCI-E 4.0 x8 Low Profile (LP)
    • 5. Dual 10GBase-T LAN with Intel® X550 Ethernet Controller
    • 6. 8 hotswap 3.5" SATA3 (6 Gbps) drive bays with Intel® C621A controller for RAID 0,1,5,10
      1 M.2 support:
      - M.2 Interface: PCI-E 3.0 x4
      - M.2 Form Factor: 2260, 2280, 22110
      - M.2 Key: M-Key
      Optional 1 slim DVD-ROM drive
      Optional 2 fixed 2.5" NVMe/SSD/HDD/SuperDOM
    • 7. 3 heavy duty Hot-swappable 13.5K RPM Middle Cooling Fans with optimal fan speed control
      1 air shroud
    • 8. 1200W Redundant Power Supplies Titanium level 100-240Vac and 200-240 Vdc
    • 9. 1 rear VGA, 1 Type A port, 2 COM Ports(1 front; 1 rear) and 6 USB ports (2 front USB 2.0 and 4 rear USB 3.0)
    Specifications
    Product SKUs
    SYS-620P-TRT
    • SuperServer SYS-620P-TRT (Black)

    Motherboard

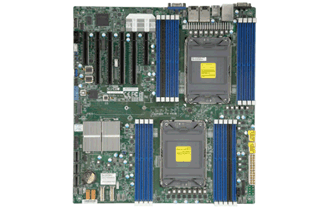

    Super X12DPi-NT6

    Processor
    CPU
    • Dual Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    • Support CPU TDP 270W

    System Memory
    Memory
    • Memory Capacity: 16 DIMM slots
    • UP to 4TB: PMem and DRAM
    • Memory Type: 3200MHz ECC LRDIMM/RDIMM DDR4
    • Intel® Optane™ persistent memory 200 series

    On-Board Devices
    Chipset
    • Intel® C621A
    Network Connectivity
    • 2x 10GbE port(s)
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

    Input / Output
    LAN
    • 1 decicated IPMI LAN port
    USB
    • 2 USB 2.0 port(s) (2 front)
    • 4 USB 3.0 port(s) (4 rear)
    Video
    • 1 VGA port(s)
    Serial Port
    • 2 COM Port(s) (1 front; 1 rear)
    DOM
    • 2 Super DOM (Disk on Module) port

    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM

    Management
    Software
    • Supermicro Out of Band (OOB) License (included in the unit)
    • IPMI2.0
    • Redfish API
    • SSM
    • Intel® Node Manager
    • SPM
    • KVM with dedicated LAN
    • SUM
    • NMI
    Power Configurations
    • ACPI/APM Power Management

    PC Health Monitoring
    CPU
    • 4+1 Phase-switching voltage regulator
    • Monitors for CPU Cores, Chipset Voltages, Memory
    FAN
    • Fans with tachometer monitoring
    • Pulse Width Modulated (PWM) fan connectors
    • Status monitor for speed control
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-825BTS-R1K23LPP1

    Dimensions and Weight
    Height
    • 3.5" (89mm)
    Width
    • 17.2" (437mm)
    Depth
    • 25.5" (647mm)
    Package
    • 11.4" (H) x 26.7" (W) x 34.5" (D)
    Weight
    • Net Weight: 35.5 lbs (16.1 kg)
    • Gross Weight: 69 lbs (31.2 kg)
    Available Color
    • Black

    Front Panel
    Buttons
    • Power On/Off
    • System Reset
    LEDs
      • HDD activity
      • Network activity
      • Power status
      • System information (overheat/UID)

    Expansion Slots
    PCI-Express (PCI-E)
    • Slot 1: PCI-E 4.0 x8 LP
    • Slot 2: PCI-E 4.0 x16 LP
    • Slot 3: PCI-E 4.0 x16 LP
    • Slot 4: PCI-E 4.0 x16 LP
    • Slot 5: PCI-E 4.0 x16 LP
    • Slot 6: PCI-E 4.0 x8 LP

    Drive Bays / Storage
    Hot-swap
    • 8x 3.5" hot-swap SATA3 drive bays
    M.2
    • 1 M.2 NVMe
    Peripheral Bays
    • 1x slim DVD drive bays (optional)

    System Cooling
    Fans
    • 3 heavy duty fans with optimal fan speed control

    Power Supply
    AC 1200W, Titanium Level, Redundancy,PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
    Dimension

    (W x H x L)
    • 76 x 40 x 336 mm
    Output Type
    • Gold Finger
    Certification Titanium Level 94%+   Titanium Level




      [ Test Report ]

    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
         -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
         8% to 90% (Non-Condensing)
    • Non-operating Relative Humidity:
         5% to 95% (Non-Condensing)


    Parts List
    Parts List - (Items Included)


    Part Number

    Qty

    Description

    Motherboard / Chassis MBD-X12DPi-NT6

    CSE-825BTS-R1K23LPP1
    1

    1
    Super X12DPi-NT6 Motherboard

    2U Chassis
    Backplane BPN-SAS3-825TQ 1 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD
    Cable 1 CBL-0343L-01 2 30AWG IPASS/4SATA 76/66/54/45CM W/SB
    Drive Tray(s) MCP-220-00007-01 1 Black USB/COM port tray for SC825, 836
    Parts MCP-260-00042-0N 1 STD I/O shield for X9 socket R server MB with Gasket.
    Manual MNL-2241-QRG 1 SYS-620P-TR(T) Quick Reference Guide
    Heatsink / Retention SNK-P0078P 1 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
    Heatsink / Retention SNK-P0078PC 1 2U Passive CPU Heat Sink w/ a Side Air Channel for X12 Generation Intel Whitley and Cedar Island Platforms
    *Power Supply PWS-1K23A-1R 2 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH
    *Power Distributor PDB-PT825-S8824 1 SC825 24PIN REDUNDANT PWR DISTRIBUTOR W/ SHORT CBL
    *Cable 2 CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
    *Cable 3 CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
    *Cable 4 CBL-PWEX-1078 3 PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS
    *FAN 1 FAN-0206L4 3 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers
    *Front Panel FPB-FP836-D 1 Front control board Dual color LED(FP836-D)forSC823M,825,825M,828,829,835,836
    *Drive Tray(s) MCP-220-00023-01 1 Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836
    *Drive Tray(s) MCP-220-00075-0B 8 Black gen 5.5 hot-swap 3.5" HDD tray
    *Drive Tray(s) MCP-220-82502-0B 2 Black fixed 3.5\" HDD tray or FDD dummy tray
    *Rear Window MCP-240-82608-0N 1 216B/826B LP rear window,RoHS/REACH,PBF
    *Peripheral Drive1 MCP-290-00007-01 1 Black DVD dummy cover for SC825, 836
    *Rail Set MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W
    *Drive Tray(s) MCP-290-82607-0N 1 826B/216B rear dummy cover for 2 X 2.5
    *Air Shroud MCP-310-29001-0N 1 SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
    Notes:
    1. Parts with * are inside the chassis
    2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
    Optional Parts List
      Part Number Qty Description
    Optional Gen3 8-ports SAS Raid controller kit for SYS-620P-TRT 1x AOC-S3108L-H8IR or AOC-S3108L-H8IR-16DD + 2x CBL-SAST-0699 ( or 2x CBL-SAST-0556)  1  Convert 8x hotswap SATA drives to SAS drives
    Optional parts needed to support 2x fixed NVMe drives 1x CBL-SAST-0953 (Slimline x8 to PCIe 2x SFF-8639 Power) and 2x MCP-110-82501-0N 1 1x MCP-110-82501-0N can support 1x 2.5 inch NVMe fixed drives and 1x CBL-SAST-0953 can support 2x 2.5 inch NMVe drives
    Optional parts needed to support 2x fixed SATA drives 2x CBL-0044L (SATA CABLE 61CM FLAT S-S PBF.26AWG flat) and 1x CBL-0082L (Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG) 1 1x CBL-0044L can support can support 1x 2.5 inch SATA drives and 1x CBL-0082L can support can support 2x 2.5 inch SATA drives
    use 1x BTR-TFM8G-LSICVM02 and 1x BKT-BBU-BRACKET-05  with AOC-S3108L-H8IR-16DD or AOC-S3108L-H8IR use 1x BTR-TFM8G-LSICVM02 and 1x BKT-BBU-BRACKET-05  with AOC-S3108L-H8IR-16DD or AOC-S3108L-H8IR 1 SuperCap and mounting bracket used for SAS raid controllers
