슈퍼마이크로
슈퍼마이크로는 기업 컴퓨팅, 스토리지, 네트워킹 솔루션 및 그린 컴퓨팅 기술 분야의 글로벌 리더입니다.
GIGABYTE
KAYTUS
SUPERMICRO
SUSOL
Chassis

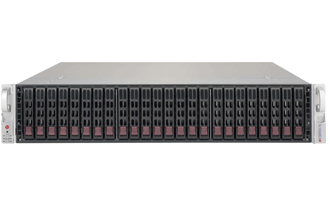

CSE-216BE1C-R609JBOD
• 2U Storage JBOD Chassis with capacity 24 x 2.5" hot-swappable HDDs bays
• Single Expander Backplane Boards support SAS3/2 or SATA3 HDDs with 12Gb/s throughput
• 4x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
• 1x IPMI port for Remote System Power on/off and system monitoring
• Support NTP for time synchronization & RTC battery backup
• 600W (1+1) 94% efficient Platinum level power supplies
• 3x 80mm high efficient hot-swappable fans for best system cooling
• Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
• Qualified SAS HBA / controller :
AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller
Learn more →
CSE-216BAC4-R1K23LPB
• 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Support up to ATX 12"x13" MB with rear 2.5" HDD option installed
• 24 x 2.5" hot-swap SAS/SATA drive bay, optional 2 x 2.5" hot-swap drive bay
• 24-port 2U SAS3 12Gbps hybrid backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices
• 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
• 7 low-profile expansion slot(s)
• 3x 8cm high-performance PWM fan(s)
• Optional 5 x 6cm 4pin high performance fan(s)
Learn more →
CSE-216BAC24-R1K68LPB
• 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68" with rear 2.5" HDD option installed
• 24 x 2.5" hot-swap SAS/SATA drive bay, optional 2 x 2.5" hot-swap drive bay
• 1U 800/1600W Single Output Power Supply Titanium Level
• 7 low-profile expansion slot(s)
• 3 x 8cm high-performance PWM fan(s)
Learn more →
CSE-216BAC-R920LPB
• 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Support up to ATX 12"x13" MB with rear 2.5" HDD option installed
• 24 x 2.5" hot-swap drive bay, optional 2 x 2.5" hot-swap drive bay
• 24-port 2U SAS3 12Gbps direct-attached backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD
• 1U 920W Redundant Platinum Super Quiet power supply W/PMbus
• 7 low-profile expansion slot(s)
• 3 x 8cm high-performance PWM fan(s)
• Optional 5 x 6cm 4pin high performance fan(s)
Learn more →
CSE-216BA-R920WB
• 2U chassis support for SMC Proprietary WIO motherboards max. motherboard size - 12" x 13", 13" x 13.68". Support up to 12"x13" MB with rear 2.5" HDD option installed.
• 24 x 2.5" hot-swap drive bay
• 24-port 2U SAS 6Gbps direct-attached backplane, support up to 24x 2.5-inch SAS2/SATA3 HDD/SSD
• 1U 920W Redundant Platinum Super Quiet power supply W/PMbus
• 4 full-height & half-length expansion slot(s) , 3 low-profile expansion slot(s)
• 3x 8cm high-performance PWM fan(s)
• Optional 5 x 6cm fan cooling module for 826B/216B
Learn more →
CSE-216BA-R920LPB
• 2U chassis support for max. motherboard size - 13" x 13.68", E-ATX and ATX. Support up to 12"x13" MB with rear 2.5" HDD option installed.
• 24 x 2.5" hot-swap SAS/SATA drive bay
• 24-port 2U SAS 6Gbps direct-attached backplane, support up to 24x 2.5-inch SAS2/SATA3 HDD/SSD
• 1U 920W Redundant Platinum Super Quiet power supply W/PMbus
• 7 low-profile expansion slot(s)
• 3x 8cm (7000 RPM) hot-swap PWM cooling fan(s)
• Optional 5 x 6cm fan cooling module for 826B/216B
Learn more →
CSE-213XAC-R1K05LP
• 2U rackmount chassis - supports for maximum motherboard sizes: 15.2" x 13.2"
• 16 x 2.5" hot-swap SAS3/SATA drive bay
• 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD
• 1U 800/1000W Redundant Power Supply 38mm Width
• 11 low-profile expansion slot(s)
• 4 x 8cm high-performance PWM fan(s)
Learn more →

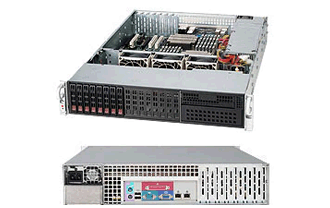

CSE-213LT-600LPB
• 2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards
• 8 x 2.5" hot-swap SAS/SATA drive bay, 1 x 5.25" drive bay
• 8-port 2U TQ backplane (W/O AMI9071/72 enclosure management), support up to 8x 2.5-inch SAS/SATA HDD/SSD
• 1U 600W platinum efficiency multiple output power supply w/pmbus
• 7 low-profile expansion slot(s)
• 3x 8cm high-performance PWM fan(s)
Learn more →
CSE-213BAC8-R1K23LPB
• 2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards
• 16 x 2.5" hot-swap SAS3/SATA drive bay, 1 x 5.25" drive bay, optional 2 x 2.5" hot-swap SAS3/SATA drive bay
• 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
• 7x Low profile I/O Expansion Slot
• 3x 8cm high-performance PWM fan(s)
Learn more →
CSE-213AC8-R1K23WB
• 2U chassis supports for maximum motherboard sizes - SMC Proprietary WIO , 13.68" x 13" motherboards
• 16 x 2.5" hot-swap SAS3/SATA drive bay, 1 x 5.25" drive bay
• 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
• 4 full-height & full-length expansion slot(s) , 3 low-profile expansion slot(s)
• 3x 8cm high-performance PWM fan(s)
Learn more →
CSE-213AC-R920LPB
• 2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards
• 16 x 2.5" hot-swap SAS3/SATA drive bay, 1 x 5.25" drive bay
• 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD
• 1U 920W Redundant Platinum Level Power Supply
• 7 low-profile expansion slot(s)
• 3x 8cm high-performance PWM fan(s)
Learn more →
CSE-213AC-R1K23LPB
• 2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards
• 16 x 2.5" hot-swap SAS3/SATA drive bay, 1 x 5.25" drive bay
• 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD
• 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
• 7 low-profile expansion slot(s)
• 3x 80mm heavy duty fan(s) with PWM fan(s) speed control
Learn more →
<<
<
