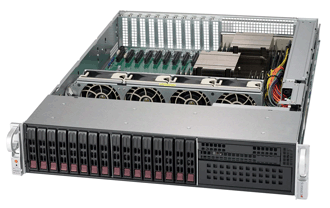

    CSE-213XAC-R1K05LP

    Print

    Key Features

    • • 2U rackmount chassis - supports for maximum motherboard sizes: 15.2" x 13.2"
    • • 16 x 2.5" hot-swap SAS3/SATA drive bay
    • • 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD
    • • 1U 800/1000W Redundant Power Supply 38mm Width
    • • 11 low-profile expansion slot(s)
    • • 4x 8cm high-performance PWM fan(s)
    Specifications
    Product SKUs
    CSE-213XAC-R1K05LP
    • SuperChassis 213XAC-R1K05LP

    Form Factor
  • 2U rackmount chassis - supports for maximum motherboard sizes: 15.2" x 13.2"
  •
    Processor Support
  • Dual and Single Intel® and AMD processors
  •
    Dimensions
    Height
    • 3.5" (89 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 25.6" (650 mm)
    Gross Weight
    • 58 lbs (26.31 kg)
    Packaging (W x H x L)
    • 26.4" (671 mm) x 11.3" (287 mm) x 39.8" (1011 mm)
    Available Color
    • Black

    Expansion Slots
    • 11 low-profile expansion slot(s)

    Drive Bays
    • 16 x 2.5" hot-swap SAS3/SATA drive bay

    Backplane
    • 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD

    Peripheral Drives
    • Optional 1 x slim DVD-ROM drive bay
    • Optional 2 x USB 2.0 ports
    • Optional 1 x COM port tray
    • 1 x standard 5.25" drive bay

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset Button
    LEDs
    • 2 Network Activity LEDs
    • HDD activity LED
    • Power Status LED
    • Power Fail LED
    • System Information LED
    Systems Cooling
    Fans
    • 4 x 8cm high-performance PWM fan(s)

    System Monitoring
    • Chassis intrusion switch

    Operating Environment (System)
    Operating Temperature Range
    • 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)

    Power Supply
    1U 800/1000W Redundant Power Supply 38mm Width
    Power Efficiency
    • 96%
    Total Output Power and Input
    • 800W with Input 100 - 127Vac
    • 1000W with Input 200 - 240Vac
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 360 x 38 x 40 mm
    Output Type
    • Backplanes (gold finger)
    +12V
    • Max: 66.7A (100Vac - 127Vac)
    • Max: 83A (200Vac - 240Vac)
    +5Vsb
    • Max: 4A / Min: 0A
    Power Distributor
    • PDB-PT213X-3824
    • O/P: 12V/100A
    • +5V Max: 45A
    • +3.3V Max: 24A
    • -12V Max: 0.6A
    Certification
    • Titanium Certified  Titanium Certified

    Regulatory (Power Supply)
    Power Supply Safety / EMC
    • BSMI
    • CCC
    • CE/EMC
    • FCC class A
    • UL/CB
    • UL/CUL
    Parts List
    Standard Parts List
      Part Number Qty Description
    Air ShroudMCP-310-00078-0B1Mylar Air Shroud for SC213X (X10DRX)
    HD BackplaneBPN-SAS3-213A116-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD
    Cable(S)CBL-0071L1ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
    Cable(S)CBL-0160L2US POWER CORD 16AWG, PB FREE
    CD-ROM & AccessoryMCP-290-00007-011Black DVD dummy cover for SC825, 836
    Fan(s)FAN-0190L4480x80x38 mm, 10.5K RPM, Middle Cooling Fan for SC213X Chassis
    Front PanelMCP-280-00018-0N1SC826 front control board adapter
    Drive Tray(s)MCP-220-00009-011Black 5.25"; drive tray w/o rail (square pattern)
    Drive Tray(s)MCP-220-00023-011Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836
    Drive Tray(s)MCP-220-00047-0B16Black gen 3rd hot-swap 2.5inch HDD tray
    Power DistributorPDB-PT213X-38241Power Distributor Board support stick redundant power supplies
    Power Supply & AccessoryPWS-1K05A-1R21U 1000W Redundant Power Supply Titanium, 38X40X360mm length
    Mounting Rail(s)MCP-290-00053-0N1Rail set, quick/quick, default for 2,3U 17.2";W
    Rear WindowMCP-240-21302-0N111 LP Slot rear window for SC213X
    Optional Parts List
      Part Number Qty Description
    Rail MCP-290-00058-0N - Short rail set, quick release, 19.6"~26.9" Extendable Length
    Front USB MCP-220-00007-01 - Black USB/COM port tray for SC825, 836
    Front Bezel MCP-210-82601-0B - Black Front Bezel for 826 chassis
    Tray(s) MCP-290-00036-0B - Black DVD dummy tray support 1x2.5 HDD for SC113,815,825,836
    HDD Kit MCP-220-81506-0N - 12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED
    DVD-ROM / DVD-RW MCP-220-81502-0N - Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842
    DVD-ROM / DVD-RW DVM-PNSC-DVD-SBT3 - BLACK PANASONIC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH
    Cable CBL-SAST-0508-01 - Internal Mini-SAS to Mini-SAS HD 50cm w/ SB, 30AWG,HF,RoHS/REACH,PBF
    Cable CBL-SAST-0568 - Internal Mini-SAS HD to Mini-SAS HD 35cm,30AWG,12Gb/s,HF,RoHS/REACH,PBF
    Cable CBL-SAST-0591 - cross-over mini SAS HD to 4 SATA w/SB, S. 75cm. 30AWG,HF,RoHS/REACH,PBF
    Motherboard (for CSE- 213XAC-R1K05LP)
    X9DRX+-F X10DRX X11DPX-T
    = Most optimized Chassis for SuperServer Configuration
    Blue color = Compatible
    Green color = Global SKU & Compatible
    Red dot & green color = Optimized + Global SKU
    Servers (for CSE- 213XAC-R1K05LP)
    2028R-TXR 2029P-TXRT
