Embedded / IoT Boards

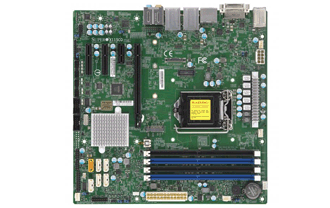

X11SCZ-F

• 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor.
Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP

• Intel® C246

• Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots

• 1 PCI-E 3.0 x16,
2 PCI-E 3.0 x4 (in x8 slot)
1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110

• 1 VGA D-Sub Connector port, 1 DVI - I port, 2 DP (DisplayPort) ports,
3 Independent Displays

• Intel® C246 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Intel® PHY I219LM LAN controller

Learn more →
X11SCV-Q

• 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor
Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 65W TDP

• Intel® Q370

• Up to 64GB Unbuffered non-ECC SO-DIMM, DDR4-2666MHz, in 2 DIMM slots

• 1 PCI-E 3.0 x16
1 M.2 M-Key PCI-E 3.0 x4, 2242/2280
1 M.2 E-Key CNVi/PCI-E 3.0 x1, 2230

• 1 DVI - D port, 1 HDMI port, 1 DP (DisplayPort) port, 1 eDP (Embedded DisplayPort) port,
3 Independent Displays, HDMI 2.0

• Intel® Q370 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10
X11SCV-Q: Q370 controller for 5SATA3 ports;RAID 0,1,5,10

• Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Intel® PHY I219LM LAN controller

Learn more →
X11SCV-L

• 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor
Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 65W TDP

• Intel® H310

• Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-2666MHz, in 2 DIMM slots

• 1 PCI-E 3.0 x16
1 M.2 E-Key PCI-E 2.0 x1, 2230

• 1 DVI - D port, 1 HDMI port, 1 DP (DisplayPort) port, 1 eDP (Embedded DisplayPort) port,
2 Independent Displays

• Intel® H310 controller for 4 SATA3 (6 Gbps) ports;
Only I-SATA0 - I-SATA3

• Single LAN with Intel® PHY I219LM LAN controller
Single LAN with Intel® Ethernet Controller I210-AT

Learn more →
X11SCQ-L

• 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor
Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP

• Intel® H310

• Up to 32GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 2 DIMM slots

• 1 PCI-E 3.0 x16
1 PCI-E 2.0 x4
1 PCI-E 2.0 x1

• 1 DVI - D port, 1 HDMI port, 1 DP (DisplayPort) port, 1 eDP (Embedded DisplayPort) port, 2 Independent Displays

• Intel® H310 controller for 4 SATA3 (6 Gbps) ports;

• Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Intel® PHY I219LM LAN controller

Learn more →
X11SCQ

• 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor
Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP

• Intel® Q370

• Up to 64GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots

• 1 PCI-E 3.0 x16,
1 PCI-E 3.0 x1,
2 PCI-E 3.0 x4
M.2 Interface: 1 PCI-E 3.0 x4
M.2 Form Factor: 2242/2280/22110
M.2 Key: M-Key

• 1 DVI - D port, 1 HDMI port, 1 DP (DisplayPort) port, 1 eDP (Embedded DisplayPort) port,
3 Independent Displays

• Intel® Q370 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Intel® PHY I219LM LAN controller

Learn more →
X11SAN-WOHS

• Intel® Pentium Processor N4200 (6W, 4C)

• Intel® Goldmont microarchitecture 14nm System-on-Chip

• Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket

• Dual GbE LAN with Intel® i210-AT

• 1 M.2 B-Key 2280, 1 Full size Mini-PCI-E, 1 SATA 3.0

• 1 HDMI, 1 VGA, 1 48-bit LVDS, Intel® HD Graphic 3 independent displays

• 1 USB 3.1 Gen2 Type-C port, 2 USB 3.0 ports, 4 USB 2.0 ports, 4 COM ports, 1 SATA 3.0, 8-bit GPIO, SMBus

• Supports on board TPM 2.0

• Supports 12V DC power input

Learn more →
X11SAN

• Intel® Pentium Processor N4200 (6W, 4C)

• Intel® Goldmont microarchitecture 14nm System-on-Chip

• Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket

• Dual GbE LAN with Intel® i210-AT

• 1 M.2 B-Key 2280, 1 Full size Mini-PCI-E, 1 SATA 3.0

• 1 HDMI, 1 VGA, 1 48-bit LVDS, Intel® HD Graphic 3 independent displays

• 1 USB 3.1 Gen2 Type-C port, 2 USB 3.0 ports, 4 USB 2.0 ports, 4 COM ports, 1 SATA 3.0, 8-bit GPIO, SMBus

• Supports on board TPM 2.0

• Supports 12V DC power input

Learn more →
X11SAA

• Intel® Pentium Processor N4200 (6W, 4C)

• Intel® Goldmont microarchitecture 14nm System-on-Chip

• Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket

• 1 PCI-E 2.0 x2 (in x8), 1 Mini-PCIe (mSATA support) and 2 SATA 3.0

• 1 M.2 M-key with SATA

• 4 SATA 3.0 (RAID 0, 1, 10)

• 1 HDMI, 1 DP, 1 VGA, Intel HD Graphic 3 independent displays

• Dual GbE LAN with Intel® i210-AT

• 2 USB 3.0 ports (2 rear), 8 USB 2.0 (2 rear, 5 via header(s), 1 Type A)

• 1 SATA DOM, 3 COM, TPM header and Audio Header

Learn more →
X11SDS-8C

• Intel® Xeon® Processor D-2146NT, 8-Core, 16 Threads, 80W

• System on Chip

• Up to 256GB Registered ECC RDIMM or 512GB ECC LRDIMM, DDR4-2133MHz in 4 DIMM slots

• 4 AIOM Slot for PCI-E 3.0 x8 Expansion Modules

• 2 PCI-E EDSFF-Short Drive Slots

• Dual SFP+
Dual 10GBase-T RJ45
Single 1GBase-T RJ45
*Using AOM-SMF-TP4F

• M.2 Slots:
2 M-Keys 2242/80/110 (PCI-E 3.0 x4/SATA)
1 B-Key 3042 (PCI-E 3.0 x4/SATA)
1 E-Key 2230 (PCI-E 3.0 x2)

• Intel Quick Assist Technology

Learn more →
X11SDS-14C

• Intel® Xeon® Processor D-2173IT, 14-Core, 28 Threads, 70W

• System on Chip

• Up to 256GB Registered ECC RDIMM or 512GB ECC LRDIMM, DDR4-2133MHz in 4 DIMM slots

• 4 AIOM Slot for PCI-E 3.0 x8 Expansion Modules

• 2 PCI-E EDSFF-Short Drive Slots

• Dual SFP+
Dual 10GBase-T RJ45
Single 1GBase-T RJ45
*Using AOM-SMF-TP4F

• M.2 Slots:
2 M-Keys 2242/80/110 (PCI-E 3.0 x4/SATA)
1 B-Key 3042 (PCI-E 3.0 x4/SATA)
1 E-Key 2230 (PCI-E 3.0 x2)

Learn more →
X11SDS-12C

• Intel® Xeon® Processor D-2163IT, 12-Core, 24 Threads, 75W

• System on Chip

• Up to 256GB Registered ECC RDIMM or 512GB ECC LRDIMM, DDR4-2133MHz in 4 DIMM slots

• 4 AIOM Slot for PCI-E 3.0 x8 Expansion Modules

• 2 PCI-E EDSFF-Short Drive Slots

• Dual SFP+
Dual 10GBase-T RJ45
Single 1GBase-T RJ45
*Using AOM-SMF-TP4F

• M.2 Slots:
2 M-Keys 2242/80/110 (PCI-E 3.0 x4/SATA)
1 B-Key 3042 (PCI-E 3.0 x4/SATA)
1 E-Key 2230 (PCI-E 3.0 x2)

Learn more →
X11SDD-8C-F

• Intel® Xeon® Processor D-2141I., Single Socket FCBGA2518 supported, CPU TDP support 65W

• System on Chip

• Up to 256GB ECC RDIMM, DDR4-2133MHz; Up to 512GB ECC LRDIMM, in 4 DIMM slots

• 1 PCI-E 3.0 x16,
1 PCI-E 3.0 x8 (Micro Low Profile)
2 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2260/2280/22110,
2 PCI-E 3.0 NVMe x4 External Port(s)

• 2 SATA3 (6 Gbps) ports;

• Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI) via Backplane

Learn more →
