• Intel® Xeon® Processor D-2146NT, CPU TDP support Up to 80W TDP

• System on Chip

• Up to 256GB Registered ECC RDIMM, DDR4-2133MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2133MHz, in 4 DIMM slots

• 1 PCI-E 3.0 x8,
1 PCI-E 3.0 x16
1 Mini-PCI-E,
2 PCI-E 3.0 NVMe x4 Internal Port(s)
1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280
1 M.2 B-Key SATA/PCI-E 3.0 x2, 3042
U.2 Interface: 2 PCI-E 3.0 x4

• 1 VGA D-Sub Connector port

• SoC controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Quad LAN with Intel® Ethernet Controller I350-AM4
Dual LAN with 10G SFP+ LAN via SoC
Dual LAN with 10Gbase-T

• Intel Quick Assist Technology

• Supports 12V DC power input

• Intel® Xeon® Processor D-2141I, 8-Core, 16 Threads, 65W

• System on Chip

• Up to 256GB Registered ECC RDIMM or 512GB ECC LRDIMM, DDR4-2133MHz in 4 DIMM slots

• 1 PCI-E 3.0 x8
1 PCI-E 3.0 x4 NVMe Internal Port via OCuLink

• Dual LAN with 10GBase-T via Intel® SoC

• Up to 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
4 SATA ports via OCuLink (or PCI-E 3.0 x4 for NVMe)

• 2 USB 3.0 ports (rear)
2 USB 2.0 ports (via header)

• 12V DC or ATX Power Input

• Intel® Xeon® Processor D-2141I, 8-Core, 16 Threads, 65W

• System on Chip

• Up to 256GB Registered ECC RDIMM or 512GB ECC LRDIMM, DDR4-2133MHz in 4 DIMM slots

• 1 PCI-E 3.0 x8
1 PCI-E 3.0 x4 NVMe Internal Port via OCuLink

• Dual LAN with 10GBase-T via Intel® SoC

• Up to 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
4 SATA ports via OCuLink (or PCI-E 3.0 x4 for NVMe)

• 2 USB 3.0 ports (rear)
2 USB 2.0 ports (via header)

• 12V DC or ATX Power Input

• Intel® Xeon® Processor D-2123IT, CPU TDP support Up to 60W TDP

• System on Chip

• Up to 256GB Registered ECC RDIMM, DDR4-2133MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2133MHz, in 4 DIMM slots

• 1 PCI-E 3.0 x8,
1 PCI-E 3.0 x16
1 Mini-PCI-E,
2 PCI-E 3.0 NVMe x4 Internal Port(s)
1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280
1 M.2 B-Key SATA/PCI-E 3.0 x2, 3042
U.2 Interface: 2 PCI-E 3.0 x4

• 1 VGA D-Sub Connector port

• SoC controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Quad LAN with Intel® Ethernet Controller I350-AM4
Dual LAN with 10G SFP+ LAN via SoC
Dual LAN with 10Gbase-T

• Supports 12V DC power input

• Intel® Xeon® Processor D-2123IT, 4-Core, 8 Threads, 60W

• System on Chip

• Up to 256GB Registered ECC RDIMM or 512GB ECC LRDIMM, DDR4-2400MHz in 4 DIMM slots

• 1 PCI-E 3.0 x8
1 PCI-E 3.0 x4 NVMe Internal Port via OCuLink

• Dual LAN with 10GBase-T via Intel® SoC

• Up to 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
4 SATA ports via OCuLink (or PCI-E 3.0 x4 for NVMe)

• 2 USB 3.0 ports (rear)
2 USB 2.0 ports (via header)

• 12V DC or ATX Power Input

• Intel® Xeon® Processor D-2183IT, CPU TDP support Up to 100W TDP

• System on Chip

• Up to 256GB Registered ECC RDIMM, DDR4-2400MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2400MHz, in 4 DIMM slots

• 1 PCI-E 3.0 x8,
1 PCI-E 3.0 x16
1 Mini-PCI-E,
2 PCI-E 3.0 NVMe x4 Internal Port(s)
1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280
1 M.2 B-Key SATA/PCI-E 3.0 x2, 3042
U.2 Interface: 2 PCI-E 3.0 x4

• 1 VGA D-Sub Connector port

• SoC controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Quad LAN with Intel® Ethernet Controller I350-AM4
Dual LAN with 10G SFP+ LAN via SoC
Dual LAN with 10Gbase-T

• Supports 12V DC power input

• Intel® Xeon® Processor D-2183IT, 16-Core, 32 Threads, 100W

• System on Chip

• Up to 256GB Registered ECC RDIMM or 512GB ECC LRDIMM, DDR4-2400MHz in 4 DIMM slots

• 1 PCI-E 3.0 x8
1 PCI-E 3.0 x4 NVMe Internal Port via OCuLink

• Dual LAN with 10GBase-T via Intel® SoC

• Up to 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
4 SATA ports via OCuLink (or PCI-E 3.0 x4 for NVMe)

• 2 USB 3.0 ports (rear)
2 USB 2.0 ports (via header)

• 12V DC or ATX Power Input

• Intel® Xeon® Processor D-2183IT, 16-Core, 32 Threads, 100W

• System on Chip

• Up to 256GB Registered ECC RDIMM or 512GB ECC LRDIMM, DDR4-2400MHz in 4 DIMM slots

• 1 PCI-E 3.0 x8
1 PCI-E 3.0 x4 NVMe Internal Port via OCuLink

• Dual LAN with 10GBase-T via Intel® SoC

• Up to 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
4 SATA ports via OCuLink (or PCI-E 3.0 x4 for NVMe)

• 2 USB 3.0 ports (rear)
2 USB 2.0 ports (via header)

• 12V DC or ATX Power Input

• Intel® Xeon® Processor D-2166NT, CPU TDP support Up to 85W TDP

• System on Chip

• Up to 256GB Registered ECC RDIMM, DDR4-2133MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2133MHz, in 4 DIMM slots

• 1 PCI-E 3.0 x8,
1 PCI-E 3.0 x16
1 Mini-PCI-E,
2 PCI-E 3.0 NVMe x4 Internal Port(s)
1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280
1 M.2 B-Key SATA/PCI-E 3.0 x2, 3042
U.2 Interface: 2 PCI-E 3.0 x4

• 1 VGA D-Sub Connector port

• SoC controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Quad LAN with Intel® Ethernet Controller I350-AM4
Dual LAN with 10G SFP+ LAN via SoC
Dual LAN with 10Gbase-T

• Intel Quick Assist Technology

• Supports 12V DC power input

• Intel® Xeon® Processor D-2166NT, 12-Core, 24 Threads, 85W

• System on Chip

• Up to 256GB Registered ECC RDIMM or 512GB ECC LRDIMM, DDR4-2133MHz in 4 DIMM slots

• 1 PCI-E 3.0 x8
1 PCI-E 3.0 x4 NVMe Internal Port via OCuLink

• Dual LAN with 10GBase-T via Intel® SoC

• Up to 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
4 SATA ports via OCuLink (or PCI-E 3.0 x4 for NVMe)

• 2 USB 3.0 ports (rear)
2 USB 2.0 ports (via header)

• 12V DC or ATX Power Input

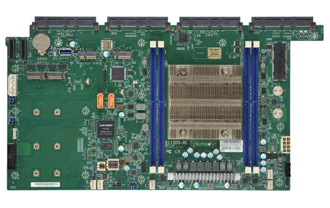

• Intel® Xeon® Processor D-2183IT, 16-Core, 32 Threads, 100W

• System on Chip

• Up to 256GB Registered ECC RDIMM or 512GB ECC LRDIMM, DDR4-2400MHz in 4 DIMM slots

• 4 AIOM Slot for PCI-E 3.0 x8 Expansion Modules

• 2 PCI-E EDSFF-Short Drive Slots

• Dual SFP+
Dual 10GBase-T RJ45
Single 1GBase-T RJ45
*Using AOM-SMF-TP4F

• M.2 Slots:
2 M-Keys 2242/80/110 (PCI-E 3.0 x4/SATA)
1 B-Key 3042 (PCI-E 3.0 x4/SATA)
1 E-Key 2230 (PCI-E 3.0 x2)

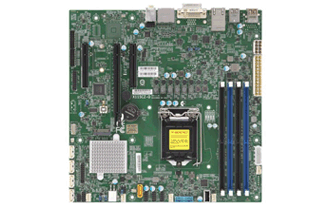

• 8th/9th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor.
Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP

• Intel® Q370

• Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots

• 1 PCI-E 3.0 x16,
2 PCI-E 3.0 x4 (in x8 slot)
M.2 Interface: 1 SATA/PCI-E 3.0 x4
M.2 Form Factor: 2280/22110
M.2 Key: M-Key

• 1 DVI - I port, 2 DP (DisplayPort) ports,
3 Independent Displays

• Intel® Q370 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10

• Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Intel® PHY I219LM LAN controller
