    SBI-610P-1C2N

    Print

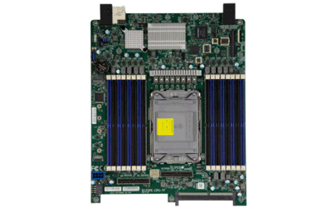

    Intergrated Board
    B12SPE-CPU-25G
    Views Angled ViewsTop ViewsRear Views
    Manual

    Key Features

    • Key Applications
      - Cloud Service
      - Simulation & Modeling
      - AI Inferencing
      - High-performance Computing (HPC)

      Key Features
    • 1. 70 CPUs per 42U Rack
    • 2. Single socket P+ (LGA-4189) supports 3rd Gen Intel® Xeon® Scalable processors
    • 3. Intel® C621A chipset
    • 4. 16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
    • 5. 2 Hot-plug 2.5" NVMe/SAS3/SATA3 drive bays; 1 NVMe/SATA3 M.2
    • 6. Dual 25G onboard Ethernet
    • 7. IPMI 2.0, KVM over IP, Virtual Media over LAN
    • 8. Graphics: Aspeed AST2600
    • 9. Cooling: Passive CPU heatsink CPU1: SNK-P1044V
    • 10. Broadcom 3108 HW RAID
    Specifications
    Product SKUs
    SuperBlade Sled
    • SBI-610P-1C2N
    Motherboard
    • MBD-B12SPE-CPU-25G

    Processor
    CPU
    • Single Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable Processors
    • TDP up to 270W

    System Memory
    Memory Capacity
    • 16 DIMM slots
    • Up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
    • Supports Intel® Optane™ Persistent Memory††
    Memory Type
    • 3200/2933/2666/2400MHz ECC DDR4 RDIMM/LRDIMM
    Note †† Please contact your Supermicro sales rep for more info.

    On-Board Devices
    Chipset
    • Intel® C621A chipset
    Network Controllers
    • 1 optional 25GbE Mezzanine card
    • Dual 25G Ethernet
    IPMI
    • Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
    Graphics
    • Aspeed AST2600

    System BIOS
    BIOS Type
    • 256Mb SPI Flash EEPROM with AMI® BIOS
    BIOS Features
    • Plug and Play (PnP)
    • PCI 2.2
    • ACPI up to 3.0
    • USB Keyboard support
    Dimensions
    Height
    • 9.75"
    Width
    • 1.75"
    Depth
    • 23.5"
    Weight
    • 12.6 lbs (5.72 kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    • KVM button
    LEDs
    • Power LED
    • UID / KVM LED
    • Network Activity LED
    • Fault LED
    Connector
    • SUV (Serial/USB/Video) & KVM Connector

    Drive Bays
    Hot-swap
    • 2 Hot-plug 2.5" NVMe/SAS3/SATA3 drive bays
    M.2
    • 1 NVMe/SATA3 M.2

    Input / Output
    TPM
    • 1 TPM Header

    Cooling
    Heatsink
    • Passive CPU heatsink CPU1: SNK-P1044V

    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:

         10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:

         -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:

         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:

         5% to 95% (non-condensing)


    Parts List
    Parts List - (Items Included)
      Part Number Qty Description
    Motherboard / Chassis MBD-B12SPE-CPU-25G-P

    MCP-680-61005-0N    		 1

    1    		 Super B12SPE-CPU-25G Motherboard

    6U 10 SuperBlade UP B12 Blade chassis, for GPU
    Add-on Card / Module AOM-BLG-L16X2A-P 1 GPU Riser card for B12SPE-CPU,RoHS
    Add-on Card / Module AOM-BPN-SB10-P 1 2xU.2 backplane for B12SPE-CPU,RoHS
    Add-on Card / Module AOM-BPNIO-SCE2-P 1 AOM card for B12SPE-CPU, 2xSAS/NVMe,RoHS
    Hard Drive Tray MCP-220-00170-0B 2 Black hot swap tool-less NVMe 2.5" HDD tray with orange button
    Air Shroud MCP-310-61005-0B 1 6U 10 SuperBlade B12SPE Processor Tray Air Shroud
    Optional Parts List
      Part Number Qty Description
    TPM security module

    (optional, not included)    		 AOM-TPM-9670V
    AOM-TPM-9671V    		 1 TPM module (Vertical) TPM 2.0
    TPM module (Vertical) TPM 1.2.
    Heatsink / Retention SNK-P1044V - 1U Passive CPU Heat Sink for B12 ICX/CPX CPU
    AOC AOC-VROCPREMOD

    AOC-VROCSTNMOD    		 - Intel VROC Premium, RAID 0, 1, 5, 10

    Intel VROC HW key (RSTe) standard upgrade module
    Networking AOC-B25G-6X4D - Dual-port 25G Mezz card for SuperBlade 6U Chassis (Mellanox ConnectX-4 Lx EN)
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
