Key Features
- Compute Intensive Applications
- HPC, Data Center, Enterprise Server
- Hyperscale / Hyperconverged
Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Single AMD EPYC™ 7003/7002 Series Processor
(7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
2. Up to 2TB ECC 3DS LRDIMM,
up to DDR4-3200MHz; 8 DIMM slots
3. 2 PCI-E 4.0 x16 (LP) slots
4. Flexible Networking support via SIOM;
Dedicated IPMI 2.0 LAN
• Software Out of Band License key
(SFT-OOB-LIC) included for OOB BIOS management
5. 3 Hot-swap 3.5" SATA3 drive bays
M.2 Interface: 4 SATA/PCI-E 4.0 x4
M.2 Form Factor: 2280, 22110, 2260, 2242
M.2 Key: M-key
6. 2000W Redundant Power Supplies
Titanium Level (96%)
(Full redundancy based on configuration and application load)


Processor/Chipset (per Node)

CPU	Single AMD EPYC™ 7003/7002 Series Processor (7003 Series Processor drop-in support requires BIOS version 2.0 or newer) Socket SP3 Supports CPU TDP / cTDP up to 280W*
Cores	Up to 64 Cores


Note	* Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization


System Memory (per Node)

Memory Capacity	8 DIMM slots Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs 8-channel memory bus
Memory Type	DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
Memory Sizes	8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)


On-Board Devices (per Node)

Chipset	System on Chip
Storage	SATA3 (6Gbps) via AMD EPYC
Network Controllers	Barebones and Complete System must have at least one SIOM installed per node
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video	ASPEED AST2500 BMC


Input / Output (per Node)

LAN	Provided via SIOM (optional) 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.0 ports (rear) 1 USB 2.0 port (Type A)
Video	1 VGA port
DOM	1 SuperDOM (Disk on Module) port
Others	2 COM ports (header) 1 TPM 2.0 header


Management (per Node)

Software	IPMI 2.0 KVM with dedicated LAN SSM, SUM SuperDoctor® 5 Watch Dog
Power Configurations	ACPI / APM Power Management


Dimensions and Weight

Width	17.25" (438mm)
Height	3.47" (88mm)
Depth	30.5" (774mm)
Package	26.4" (W) x 11.2" (H) x 39.8" (D)
Weight	Gross Weight: 85 lbs (38.6 kg) Net Weight: 54.5 lbs (24.7 kg)
Available Colors	Black


Front Panel (per Node)

Buttons	Power On/Off button UID button
LEDs	Power status LED HDD activity LED Network activity LEDs Universal Information (UID) LED


Expansion Slots (per Node)

PCI-Express	2 PCI-E 4.0 (x16) Low-profile slots 1 SIOM card support (must be assembled/integrated with SIOM)
M.2	Interface: 4 SATA/PCI-E 4.0 x4 Form Factor: 2280, 22110, 2260, 2242 Key: M-key


Power Supply (76mm Width)
2000W Redundant Power Supplies with PMBus
Total Output Power	1000W/1800W/1980W/2000W
Dimension (W x H x L)	76 x 40 x 336 mm
Input	1000W: 100-127 Vac / 12-9.5 A / 50-60 Hz 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only)
+12V	Max: 83.3A / Min: 0A (100-127 Vac) Max: 150A / Min: 0A (200-220 Vac) Max: 165A / Min: 0A (220-230 Vac) Max: 166.7A / Min: 0A (230-240 Vac) Max: 166.7A / Min: 0A (200-240 Vac) (UL/cUL only)
+5Vsb	Max: 1A / Min: 0A
Output Type	27 Pairs Gold Finger Connector
Certification	Titanium Level [ Test Report ]


Operating Environment

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 30°C (50°F ~ 85°F) All CPU SKUs supported 10°C ~ 35°C (50°F ~ 95°F) See Note * Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)


Parts List - (Items Included)

	Part Number	Qty	Description

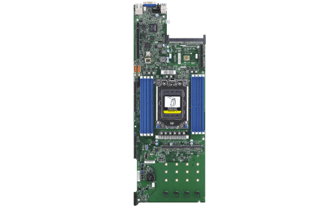

Motherboard / Chassis	MBD-H12SST-PS CSE-827HQ+-R2K04BP2	4 1	Super H12SST-PS Motherboard 2U Chassis
Backplane	BPN-ADP-6SATA3P	4	Backplane adapter card; 6SATA ports,RoHS/REACH,PBF
Backplane	BPN-SAS3-827HQ2	1	2U 12-Port 4-Node Backplane Supports 3x3.5" SAS3/SATA3 HDD per Node
Drive Tray(s)	MCP-220-00075-0B	12	Black gen 5.5 hot-swap 3.5" HDD tray
Parts	MCP-240-82715-0N	1	TwinPro SC827HQ+ BPN retention bracket assembly
Riser Card	RSC-P-6-X2	4	1U LHS TwinPro riser card with one PCI-E 4.0 x16 slot,HF,RoH
Riser Card	RSC-PR-6-X2	4	1U RHS TwinPro Riser card with one PCI-E 4.0 x16 slot,HF,RoH
Software	SFT-OOB-LIC	4	License key for enabling OOB BIOS management
Heatsink / Retention	SNK-P0062P	4	1U Passive CPU Heat Sink for AMD Socket SP3 Processors
Air Shroud	MCP-310-82723-0B	4	SC827HQ+ mylar air shroud for MBD-H12SST-PS-P
Power Supply	PWS-2K04A-1R	2	AC-DC 2000W, Titanium Level, Redundancy, 1U, PMBus 1.2, +12V/+5Vsb, 360x76x40mm,HF,RoHS/REACH
FAN	FAN-0162L4	4	80x80x38 mm, 13.5K RPM, HCP, LMV, and LPC Cooling Fan,RoHS/REACH
Cable	CBL-PWCD-0578-1	2	PWCD,US,IEC60320 C14 TO C13,3FT,14AWG,RoHS
Software	SFT-OOB-LIC	1	License key for enabling OOB BIOS management


Optional Parts List

	Part Number	Qty	Description
Hot-swap 3.5" to 2.5" Hard Disk Drive Tray	MCP-220-00043-0N	-	Black Hot-swap gen 4 3.5" to 2.5" HDD tray
Global Services & Support	OS4HR3/2/1 OSNBD3/2/1	- -	3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service
Software	FT-DCMS-Single	1	DataCenter Management Package (per node license)
TPM security module	AOM-TPM-9655V	-	TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF;
TPM security module	AOM-TPM-9665V	-	TPM 2.0 module with Infineon 9665, RoHS/REACH,PBF;
SIOM	-	-	Supermicro SIOM solutions [Details]
