Key Applications
- High Performance Computing
- Hyper-Converged Infrastructure
- Big Data / Big Science
- Oil immersion, Liquid Cooling

Key Features

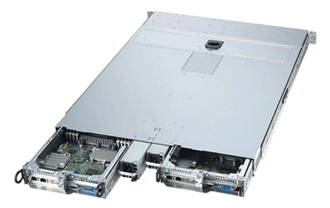

Two hot-pluggable systems (nodes) in a 1U form factor. Each node supports the following:
1. Dual Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable Processors
2. Intel® C621A chipset
3. 16 DIMMs, Up to 4TB 3DS ECC DDR4-3200 LRDIMM/RDIMM
4. 2 PCI-E 4.0 x16 (LP), 1 PCI-E 4.0 x8 (with M.2 adapter installed for support 2 NVME up to 22x80 mm)
5. Intel® X710 Dual port 10GBase-T LAN onboard
6. 4x 2.5" hot-swap SATA drive bays
7. 6 counter-rotating 4cm PWM fans with optimal fan speed control (Per System)
8. Two 1000W redundant power supplies with PMBus
9. ASPEED AST2600 BMC, 2 USB, VGA. RoT, 2 SATADOM ports
SATA (6Gbps); 4 slots per node; RAID 0, 1, 5, 10 support.


Product SKUs

SYS-120TP-DTTR	SuperServer SYS-120TP-DTTR (Black front & sliver body)


Processor (per Node)

CPU	Dual Socket P+ (LGA 4189) 3rd Gen Intel® Xeon® Scalable processors Support CPU TDP 185W *
Cores	Up to 32C/64T; Up to 48MB Cache
Note	*Please contact Supermicro Technical Support for supporting conditions of high power (TDP 150W and above) or high base frequency (3.0 GHz and above) processors.


System Memory (per Node)

Memory	Memory Capacity: 16 DIMM slots Up to 4TB: 16x 256 GB DRAM Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM
Memory Voltage	1.2 V
Error Detection	ECC


On-Board Devices (per Node)

SATA	SATA3 (6Gbps) via Intel C621A; RAID 0, 1, 5, 10 support
Chipset	Intel® C621A
Network Connectivity	2x 10GbE BaseT with Intel® X710-AT2
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support


Input / Output (per Node)

LAN	1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.0 port(s) (2 rear)
Video	1 VGA port(s)
DOM	2 SuperDOM (Disk on Module) port
Others	M.2 2 NVME M.2 (up to 22x80 mm) support via installed SCC-P2N2M2-P2 and M.2 for OS boot only.


Management

Software	Supermicro Out of Band (OOB) Software License Key(Included per Node) Redfish API IPMI 2.0 SSM Intel® Node Manager SPM KVM with dedicated LAN SUM NMI Watch Dog SuperDoctor® 5
Power Configurations	ACPI/APM Power Management ACPI Power Management Power-on mode for AC power recovery


PC Health Monitoring

CPU	5 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors


Dimensions and Weight

Height	1.7" (43mm)
Width	17.25" (438mm)
Depth	28.25" (718mm)
Package	8" (H) x 29.6" (W) x 38.4" (D)
Weight	Net Weight: 33.5 lbs (15.2 kg) Gross Weight: 48.1 lbs (21.9 kg)
Available Color	Black front & sliver body


Front Panel

Buttons	Power On/Off button UID button
LEDs	Network activity LED Power status LED System information (overheat/UID) LED


Expansion Slots (per Node)

PCI-Express (PCI-E)	Slot 1: PCI-E 4.0 x16 LP Slot 2: PCI-E 4.0 x16 LP Internal Slot: M.2



System Cooling

Fans	6x 4cm heavy duty fans with optimal fan speed control
Air Shroud	2 Air Shroud(s)


Power Supply

1U 1000W Redundant, Titanium, 38(W) X 40(H) X 360(L) mm
Dimension (W x H x L)	38 x 40 x 360 mm
AC Input	800W: 100-127Vac / 50-60Hz 1000W: 200-240Vac / 50-60Hz
+12V	Max: 66.7A / Min: 0A (100Vac-127Vac) Max: 83A / Min: 0A (200Vac-240Vac)
5V SB	Max: 4A / Min: 0A
Output Type	Gold Finger Connector
Certification	Titanium Level [ Test Report ]


Operating Environment

Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)


Parts List - (Items Included)

	Part Number	Qty	Description
Motherboard / Chassis	MBD-X12DPT-PT6 CSE-809H-R1K05P3	2 1	Super X12DPT-PT6 Motherboard 1U Chassis
Backplane	BPN-ADP-6SATA3P	2	Backplan adapter card; 6SATA ports,RoHS/REACH,PBF
Backplane	BPN-SAS3-809H3	1	1U 8-Port 2-Node 12Gbps Backplane for 4x2.5" SAS3/SATA3 HDD/
Cable 1	CBL-PWCD-0900	2	PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17
Riser Card	RSC-P-6G4	2	1U LHS TwinPro Riser card with one PCI-E 4.0x16lotH,RoHS
Riser Card	RSC-PR-6-X2	2	1U RHS TwinPro Riser card with one PCI-E 4.0 x16 slot,HF,RoH
Storage Controller Card	SCC-P2N2M2-P2	2	2x NVMe M.2 carrier up to 2280 for X12 Twinpro
Software	SFT-OOB-LIC	2	License key for enabling OOB BIOS management
Heatsink / Retention	SNK-P0077V	2	X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
Heatsink / Retention	SNK-P0077VM	2	X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base w/ Channel
*Power Supply	PWS-1K05A-1R	2	1U 1000W Redundant Power Supply Titanium, 38X40X360mm length
Notes: Parts with * are inside the chassis Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.


Optional Parts List

	Part Number	Qty	Description
SATA-DOM	SSD-DM064-SMCMVN1	2	SMC SATADOM,64GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS
	SSD-DM032-SMCMVN1	2	SMC SATADOM,32GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS
	SSD-DM016-SMCMVN1	2	SMC SATADOM,16GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS
	SSD-DM128-SMCMVN1	2	SMC SATADOM, 128GB, SATA 6Gb/s, MLC, uSSD, 15nm,HF,RoHS/REACH
TPM security module (optional, not included)	AOM-TPM-9671H-S	1	SPI capable TPM 1.2 with Infineon 9670 controller with Horizontal form factor
TPM security module (optional, not included)	AOM-TPM-9670H-S	1	SPI capable TPM 2.0 with Infineon 9670 controller with Horizontal form factor
