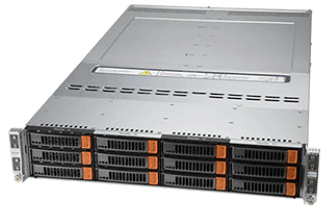

    SYS-620BT-HNC8R

    Print

    Key Features

    • Key Applications
      - Hyperconverged Infrastructure
      - Scale-Out File Storage
      - Container Storage

      Key Features
      Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

      1. Socket P+ (LGA 4189) support 3rd Gen Intel® Xeon® Scalable processors
    • 2. Intel® C621A
    • 3. 20 DIMM Slots (16 DIMM Slots + 4 Intel® Optane™ Persistent Memory Slots)
    • 4. 2 PCI-E 4.0 x16 (LP) slot;
      Tool-less support
      Internal PCI-E 3.0 x8 for 2 M.2 NVMe/SATA support onboard
      Optional NVMe Boot Controller via AOC-SMG3-2M2-B
    • 5. Network connectivity via AIOM (OCP 3.0 compliant)
    • 6. 3 Hot-swap 3.5" drive bays; 3 PCI-E 4.0 NVMe/SAS/SATA 3.5" drives
    • 7 4 cooling fans per 2U enclosure, 14.9K RPM; Shared Cooling Design
      Liquid Cooling Support
    • 8. 2600W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
    • 9. Built-in SAS3 Support via Broadcom 3808; IT Mode
    Specifications
    Product SKUs
    SYS-620BT-HNC8R
    • SuperServer SYS-620BT-HNC8R (Black)

    Motherboard

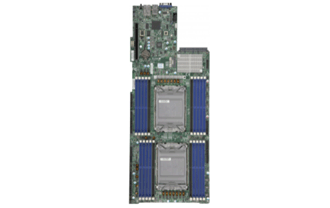

    Super X12DPT-B6

    Processor (per Node)
    CPU
    • Dual Socket P+ (LGA 4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    • Support CPU TDP 185W *
    Cores
    • 32C/64T
    Note
    • *Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization

    System Memory (per Node)
    Memory
    • Memory Capacity: 16 DIMM slots (16 DRAM + 4 PMem)
    • UP to 4TB: 16x 256 GB DRAM
    • UP to 6TB: 8x 256 GB DRAM and 8x 512 GB PMem
    • Memory Type: 3200MHz ECC DDR4 RDIMM
    • Intel® Optane™ persistent memory 200 series

    On-Board Devices (per Node)
    SAS
    • SAS3 (12Gbps) via Broadcom® 3808 (IT mode)
    Chipset
    • Intel® C621A
    Network Connectivity
    • Via AIOM
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

    Input / Output (per Node)
    LAN
    • 1 RJ45 Dedicated BMC LAN port
    USB
    • 2 USB 3.0 port(s) (2 rear)
    Video
    • 1 VGA port(s)
    Others
    • M.2 for boot drive only

    System BIOS
    BIOS Type
    • AMI 32MB Flash ROM

    Management
    Software
    • Supemicro Out of Band (OOB) License (Included per Node)
    • SuperCloud Composer
    • SSM
    • Intel® Node Manager
    • SPM
    • KVM with dedicated LAN
    • IPMI 2.0
    • SUM
    • Watch Dog
    • SuperDoctor® 5
    Power Configurations
    • ACPI / APM Power Management

    PC Health Monitoring
    CPU
    • 7+1 Phase-switching voltage regulator
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    FAN
    • Fans with tachometer monitoring
    • Pulse Width Modulated (PWM) fan connectors
    • Status monitor for speed control
    Temperature
    • Monitoring for CPU and chassis environment
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-827BQ-000NP

    Dimensions and Weight
    Height
    • 3.47" (88mm)
    Width
    • 17.68" (449mm)
    Depth
    • 30.5" (774mm)
    Package
    • 9.76" (H) x 24.65" (W) x 45.28" (D)
    Weight
    • Net Weight: 87.13 lbs (39.52 kg)
    • Gross Weight: 114.66 lbs (52.01 kg)
    Available Color
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    • UID button
    LEDs
      • HDD activity LED
      • Network activity LEDs
      • Power status LED
      • Universal Information (UID) LED

    Expansion Slots (per Node)
    PCI-Express (PCI-E)
    • Slot 1: PCI-E 4.0 x16 LP
    • Slot 2: PCI-E 4.0 x16 LP
    • Internal Slot: M.2

    Drive Bays / Storage (per Node)
    Hot-swap
    • 3x 3.5" hot-swap NVMe/SATA/SAS drive bays (3x 2.5" NVMe hybrid; 3x 3.5" NVMe hybrid)
    M.2
    • 2 M.2 NVMe OR 2 M.2 SATA3

    System Cooling
    Fans
    • 4x 14.9K RPM Heavy Duty 8cm Fan(s)

    Power Supply
    1U 2600W Redundant Titanium PWS, 45(W) X 40(H) X 480(L)
    Total Output Power
    • 2600W : 208 - 240 Vac
    • 2600W : 220 - 240 Vdc for CQC only
    Dimension

    (W x H x L)
    • 45 x 40 x 480 mm
    AC Input
    • 208-240Vac / 12.5A-15A / 50-60Hz
    • 220-240Vdc / 12.5A-13.5A (CQC only)
    +12V
    • Max: 216.6A / Min: 0A
    12V SB
    • Max: 4.5A / Min: 0A
    Certification Titanium Level 94%+   Titanium Level




      [
    Test Report ]

    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
         -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
         8% to 90% (Non-Condensing)
    • Non-operating Relative Humidity:
         5% to 95% (Non-Condensing)


    Parts List
    Parts List - (Items Included)


    Part Number

    Qty

    Description

    Motherboard / Chassis MBD-X12DPT-B6

    CSE-827BQ-000NP
    4

    1
    Super X12DPT-B6 Motherboard

    2U Chassis
    Add-on Card / Module AOC-SMG3-2H8M2-BW-P 4 2x Hybrid M.2 riser carrier card for X12 BigTwin,RoHS
    Backplane BPN-NVME4-827BHQ-S3 1 2U 12-Port 4-Node All-Hybrid BT BPN for 3xNVMe4/SAS4/SATA3 Medias per Node
    Cable 1 CBL-PWCD-0376-IS 2 PWCD,US,IEC60320 C19 TO C20,940mm (3ft),14AWG,15A,250V,Black
    Cable 2 CBL-SAST-1221-100 4 Slimline x8 (STR) to 2x Slimline x4 (STR),INT,21/16CM,1
    Drive Tray(s) MCP-220-00133-0B-BULK 12 Black gen 8 hot-swap 3.5
    Air Shroud MCP-310-21730-0B 4 BigTwin 2U4N plastic air shroud for X12DPT-B
    Riser Card RSC-PR-6-X2 4 1U RHS TwinPro Riser card with one PCI-E 4.0 x16 slot,HF,RoH
    Heatsink / Retention SNK-P0077PW 4 1U Passive CPU HS 92mm Width for X12 Whitley Platform
    Heatsink / Retention SNK-P0077VM 4 X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base w/ Channel
    *Power Supply PWS-2K60A-1R 2 1U 2600W Redundant Titanium PWS, 45(W) X 40(H) X 480(L)
    *Power Distributor PDB-PT217-BGTWN 1 2U Big Twin Power Distributor Board Support Redundant 2KW
    Notes:
    1. Parts with * are inside the chassis
    2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
    Optional Parts List
      Part Number Qty Description
    3.5-to-2.5" HDD Conversion Tray MCP-220-00140-0B - Black gen 8 hot-swap 3.5-to-2.5 Tool-less HDD tray, orange tab
    M.2 NVMe RAID Controller AOC-SMG3-2M2-B-P - 2x M.2 NVMe RAID Controller Card
    SPI Capable TPM 1.2 AOM-TPM-9671H-S - SPI Capable TPM 1.2 Provisioned for Server, Horizontal Form Factor
    SPI Capable TPM 2.0 AOM-TPM-9670H-S - SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor
    SPI Capable TPM 2.0 with FIPS 140-2 AOM-TPM-9670H-FIPS - SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor, Supporting FIPS 140-2
    SuperCloud Composer License SFT-SDDC-SINGLE - SDDC Monitor License - Single License per Monitored host
    System Management Suite SFT-DCMS-Single - Supermicro System Management Software Suite node
    VROC Intel SSD Only AOC-VROCINTMOD - Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
    VROC Premium AOC-VROCPREMOD - Intel VROC Premium, RAID 0, 1, 5, 10
    VROC Standard AOC-VROCSTNMOD - Intel VROC Standard, RAID 0, 1, 10
