    SYS-510P-M

    Print

    Key Features

    • Key Applications
      - Small Business
      - Web/Hosting Application
      - Email/Firewall/Print Server

      Key Features
      1. Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 220W TDP.
    • 2. 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM
    • 3. 1 PCI-E 4.0 x16 (FHHL) slot
    • 4 Intel® Ethernet Controller i350 2x 1GbE RJ45
    • 5. 4x hot-swap 3.5'' Hybrid SATA3/NVMe drive bays, SAS3 with additional SAS controller card; Onboard 2x NVMe/SATA M.2
    • 6. Single Platinum 500W Power Supply
    Specifications
    Product SKUs
    SYS-510P-M
    • SuperServer SYS-510P-M (Black)

    Motherboard

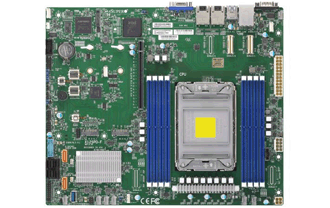

    Super X12SPO-F

    Processor
    CPU
    • Single Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    • Support CPU TDP 220W

    System Memory
    Memory
    • Memory Capacity: 8 DIMM slots
    • UP to 2TB: 8x 256 GB DRAM
    • UP to 3TB: 4x 256 GB DRAM and 4x 512 GB PMem
    • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM
    • Intel® Optane™ persistent memory 200 series
    Memory Voltage
    • 1.25 V
    Error Detection
    • Yes

    On-Board Devices
    SATA
    • SATA3 (6Gbps); RAID 0/1/5/10 support
    NVMe
    • NVMe; RAID 0/1/5/10 support
    Chipset
    • Intel® C621A
    Network Connectivity
    • 2x 1GbE BaseT with Intel® i350
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

    Input / Output
    SATA
    • 10 SATA (6Gbps) port(s)
    LAN
    • 1 RJ45 Dedicated IPMI LAN port
    • 2 RJ45 1GbE LAN ports
    USB
    • 5 USB 3.2 Gen 1 port(s) (2 headers; 2 rear; 1 Type A)
    • 6 USB 2.0 port(s) (4 headers; 2 rear)
    Video
    • 1 VGA port(s)
    Serial Port
    • 2 COM Port(s) (1 header; 1 rear)
    DOM
    • 2 Super DOM (Disk on Module) port with built-in power

    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM

    Management
    Software
    • IPMI2.0
    • Redfish API
    • SSM
    • Intel® Node Manager
    • SPM
    • KVM with dedicated LAN
    • SUM
    • NMI
    Power Configurations
    • ACPI/APM Power Management

    PC Health Monitoring
    CPU
    • 7+1 Phase-switching voltage regulator
    • Monitors for CPU Cores, Chipset Voltages, Memory
    FAN
    • Fans with tachometer monitoring
    • Pulse Width Modulated (PWM) fan connectors
    • Status monitor for speed control
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-813MF2TS-505CBP

    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 19.98" (507mm)
    Package
    • 8.5" (H) x 24" (W) x 29.5" (D)
    Weight
    • Net Weight: 17.6 lbs (8 kg)
    • Gross Weight: 30.4 lbs (13.8 kg)
    Available Color
    • Black

    Front Panel
    Buttons
    • Power On/Off
    • System Reset
    LEDs
      • Device Activity
      • LAN 1 Activity
      • LAN 2 Activity
      • Power status
      • System information

    Expansion Slots
    PCI-Express (PCI-E)
    • Slot 1: PCI-E 4.0 x16 FHHL

    Drive Bays / Storage
    Drive Bays
    • 4x 3.5" NVMe/SATA drive bays (4x 3.5" NVMe hybrid)
    M.2
    • 2x PCI-E 3.0 x 4 and SATA
    • M-key, 2280, 22110
    Peripheral Bays
    • 2x 2.5" drive bays

    System Cooling
    Fans
    • 2 AOC cooling Fan(s) (optional)
    • 4 middle cooling PWM 40x40x28mm Fan(s)

    Power Supply
    1U 500W Multi-output, Platinum level with PMbus 24pin, W100xL180xH40mm,RoHS/REACH
    Dimension

    (W x H x L)
    • 100 x 40 x 180 mm
    Certification Platinum Level Certified 94%+   Platinum Level




      [ Test Report ]

    Operating Environment
    Environmental Spec.
    • Operating Temperature:
         10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
         -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)


    Parts List
    Parts List - (Items Included)


    Part Number

    Qty

    Description

    Motherboard / Chassis MBD-X12SPO-F

    CSE-813MF2TS-505CBP
    1

    1
    Super X12SPO-F Motherboard

    1U Chassis
    Backplane BPN-SAS3-815TQ-N4 1 4-port 1U SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3/NVMe Storage Devices
    Cable 1 CBL-0182L 1 PWR EXTENSION.HDD TO RIGHT ANGLE HDD,PBF
    Cable 2 CBL-SAST-0811 1 MINI SAS HD-4 SATA (RA),12G,INT,50/50/60/70,70CM SB,30AWG
    Manual MNL-2267-QRG 1 510P-M/MR Quick Reference Guide
    Riser Card RSC-S-6G4 1 1U LHS Standard riser card with one PCI-E 4.0 x16 slot,HF,Ro
    Heatsink / Retention SNK-P0077P 1 1U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
    *Power Supply PWS-505P-1H 1 1U 500W Multi-output, Platinum level w/ PMbus 24pin, W100xL180xH40mm,RoHS/REACH
    *Cable 3 CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
    *Peripheral Drive1 CSE-PT93L-B 1 Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS
    *FAN 1 FAN-0154L4 4 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
    *Front Panel FPB-FP813-D 1 Front control board dual color for SC815,SC813M (C)
    *Drive Tray(s) MCP-220-00075-0B 4 Black gen 5.5 hot-swap 3.5" HDD tray
    *Parts MCP-260-00078-0N 1 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF
    *Rail Set MCP-290-00102-0N 1set Outer rail, quick-release type, 25.6\" to 33.05\"
    *Rail Set MCP-290-00108-0N 1set Inner rail, front, short, quick-release type
    *Rail Set MCP-290-00110-0N 1set Inner rail, extension (quick) for 1U 17.2
    *Fan Holder MCP-320-00060-0N 1 Slim Fan tray for six 40x28 fans in SC813M (for X11DPL-i 12"x10.15")
    *Parts MCP-340-00001-01 2 Dummy fan 40x28mm
    Notes:
    1. Parts with * are inside the chassis
    2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
    Optional Parts List
      Part Number Qty Description
    3.5" to 2.5" Converter Tray(s) MCP-220-00043-0N - Hot-swap Gen-4 3.5" to 2.5" HDD tray, Black
    3.5'' to 2.5" NVMe Drive Tray(s) MCP-220-00138-0B - Tool-less Hot-swap Gen-5.5 NVMe 3.5'' to 2.5'' drive tray, Orange tab, Black
    Add-on Card for additional M.2 AOC-SLG3-2H8M2 - Standard LP, PCI-E 3.0 x8, supports 2x NVMe/SATA M-Key M.2 Modules; RAID 0,1
    Cooling Fan(s) FAN-0154L4 - 40x40x28 mm, 22.5K RPM, Middle Cooling Fan
    DVD-ROM / DVD-RW DVM-TEAC-DVD-SBT5 1 TEAC slim DVD-ROM SATA drive
    DVM-PLDS-DVDRW-SBT5 1 PHILPS slim DVD-RW SATA drive
    DVD-ROM Accessory MCP-220-81502-0N 1 Slim SATA DVD mounting kit
    Front Bezel CSE-PTFB-813LB 1 Black Front Bezel
    CSE-PTFB-813-02B 1 Black Front Bezel w/ Round Venting Holes
    Hot-swap 2.5" kit (DVD slot) MCP-220-81506-0N 1 Single 2.5" SAS3 (12Gb/s) hot swap in slim DVD form factor
    Hot-swap 2.5" kit (FDD slot) MCP-220-81504-0N 1 Single 2.5" SAS3 (12Gb/s) hot swap in slim FDD form factor
    Inlet Thermal Sensor MCP-280-00034-0N 1 Universal Thermal sensor kit with 40cm I2C cable
    Intel VROC RAID Key for NVMe AOC-VROCPREMOD 1 Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5
    AOC-VROCINTMOD 1 Intel SSD Only Upgrade module; RAID 0/1/10/5
    AOC-VROCSTNMOD 1 Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10
    NVMe Cable(s) CBL-SAST-1264-85 - Slimline x8 (STR) to 2x Oculink x4 (STR),64CM,85 OHM,Ro
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
    Storage Control Card and Cable(s) AOC-S3008L-L8I 1 Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8, 63HDD; RAID 0, 1, 10
    AOC-S3108L-H8iR-16DD 1 Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
    AOC-S3908L-H8iR-16DD + 1x CBL-SAST-1275A-100 1 Standard LP, 8 internal ports (12Gb/s) PCI-E 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
    Storage Control Card and Cable(s) (HBA) AOC-S3008L-L8E 1 Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8, 122HDD; HBA
    AOC-S3808L-L8IT + 1x CBL-SAST-1275A-100 1 Standard LP, 8 internal ports (12Gb/s) PCI-E 4.0 x8, 122HDD; HBA
    TPM AOM-TPM-9671H-S 1 TPM 1.2, horizontal form factor, provisioned for server
    AOM-TPM-9670H-S 1 TPM 2.0, horizontal form factor, provisioned for server
