AS -1114CS-TNR
Print
Intergrated Board
Key Features
- Key Applications
- Financial Services
- Cloud Computing
- Network Appliance
- Private Cloud
- Content Delivery Network (CDN)
- Deep Learning Inferencing
Key Features
1.Single AMD EPYC™ 7002/7003 Series Processor
- 2.16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
- 3.Expansion slots:
2 PCI-E 4.0 x16 (FHHL) slots,
2 AIOM slots for flexible networking
(One x8 AIOM slot and one x16 AIOM slot)
- 4.Integrated IPMI 2.0 + KVM with dedicated LAN
• Software Out of Band License
key (SFT-OOB-LIC) included
for OOB BIOS management
- 5.10 Hot-swap 2.5" SATA3 drive bays,
optional 10x SAS3/NVMe support via additional SAS/NVMe kit
M.2 Interface: 2 PCI-E 4.0 x4
M.2 Form Factor: 2242, 2260, 2280, 22110
M.2 Key: M-Key
- 6.2 USB 3.0 ports (rear),
1 VGA, 1 COM,
ASPEED AST2600 BMC graphics
- 7.Tool-less Drive Trays and Tool-less Brackets
- 8.860W Redundant Platinum Level Power Supplies
(Full redundancy based on configuration and application load)
Specifications
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Doctor 5
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Parts List
 |
|||
| Parts List - (Items Included) | |||
 |
|||
| |
Part Number |
Qty |
Description |
| Motherboard / Chassis |
MBD-H12SSW-AN6 CSE-LB16TS-R860AWP2 |
1 1 |

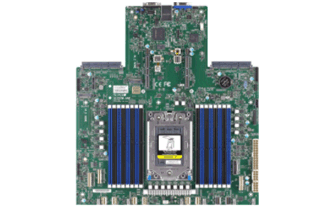

Super H12SSW-AN6 Motherboard 1U Chassis |
| Backplane | BPN-SAS3-LB16A-N10 | 1 | 1U 10-Slot SFF Hybrid Backplane Supports 10xSAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 2x(1x4) + 1x(2x2) Power Connectors |
| Cable 1 | CBL-SAST-1222-100 | 1 | Slimline x8 (LE) to 2x Slimline x4 (STR),22/22CM,100 OH |
| Cable 2 | CBL-SAST-1230LP-100 | 1 | SlimlineLP x4 (STR) to Slimline x4 (STR),30CM,100 OHM |
| FAN | FAN-0141L4 | 6 | 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan |
| Riser Card | RSC-D-6G4 | 1 | 1U LHS DCO Riser card with one PCI-E 4.0 x16 slot,HF,RoHS |
| Riser Card | RSC-DR-6G4 | 1 | 1U RHS DCO Riser card with one PCI-E 4.0 x16 slot,HF,RoHS |
| Heatsink / Retention | SNK-P0062P | 1 | 1U Passive CPU Heat Sink for AMD Socket SP3 Processors |
| *Power Supply | PWS-860P-1R2 | 2 | 1U 860W, Redundant power supply, 54.5mm width, Platinum with |
| *Power Distributor | PDB-PT112-S2424 | 1 | WIO X11 Support,PDB-PT112-S2424 is based on PDB-PT112-2424 |
| *Rail Set | MCP-290-00063-0N | 1set | Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH |
| Software | SFT-OOB-LIC | 1 | OOB Management Package (per node license) |
Notes:
|
|||
|
|||
| Optional Parts List | |||
|
|||
| Part Number | Qty | Description | |
| Storage Control Card and Cable(s) |
AOC-S3008L-L8e 1x CBL-SAST-1260-100 (support up to 8 SAS3 HDD) |
- |
Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBA; MiniSAS HD x8 (LE) to 2x Slimline x4 (STR),60CM,100 OHM |
|
AOC-S3008L-L8i 1x CBL-SAST-1260-100 (support up to 8 SAS3 HDD) |
- |
Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E; MiniSAS HD x8 (LE) to 2x Slimline x4 (STR),60CM,100 OHM |
|
|
AOC-S3108L-H8iR/16DD 1x CBL-SAST-1260-100 (support up to 8 SAS3 HDD) |
- |
Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; MiniSAS HD x8 (LE) to 2x Slimline x4 (STR),60CM,100 OHM |
|
|
AOC-S3616L-L16IT 1x CBL-SAST-1285-100 1x CBL-SAST-1260-100 (support up to 12 SAS3 HDD) |
- |
16 int 12Gb/s ports, 16xGen3, IOC/IT mode - LP; Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s; MiniSAS HD x8 (LE) to 2x Slimline x4 (STR),60CM,100 OHM |
|
| Cable Management Arm | MCP-290-00152-0N | 1 | 1U Supermicro Cable Management Arm 2nd Gen |
| CacheVault(s) | BTR-TFM8G-LSICVM02 | - | CacheVault for Broadcom 3108 |
| BKT-BBU-BRACKET-05 | Supercap mounting bracket for PCI-E location | ||
| BTR-TFM8G-LSICVM02 | - | CacheVault for Broadcom 3108 | |
| MCP-240-00127-0N | Supercap mounting bracket for 2.5" HDD location | ||
| Optional Kit for NVMe Solution | CBL-SAST-1222-85 (Support 2 NVMe drives slot per cables for HDD slot 0~3 and 8~9) |
- | Slimline X8 (LE) to Slimline X8 (STR), 22CM,85 OHM,RoHS |
| CBL-SAST-1219LP-85 (Support 2 NVMe drives slot per cables for HDD slot 4~7) |
- | Slimline x8 (STR) to 2x SlimlineLP x4 (RE/LE),FFC,19CM,8 | |
| M.2 by AOC | AOC-SLG3-2H8M2 | 1 | 2x Hybrid NVMe/SATA M.2 RAID Carrier, Standard LP,RoHS |
| TPM | AOM-TPM-9655V | - | Vertical TPM with Infineon 9655 TCG 1.2 |
| AOM-TPM-9655V-S | - | Based on AOM-TPM-9655V with Server TXT package | |
| AOM-TPM-9665V | - | AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH | |
| AOM-TPM-9665V-S | - | Vertical TPM TCG 2.0 Provisioned for a server,RoHS/REACH | |
| Global Services & Support | OS4HR3/2/1 | - | 3/2/1-year onsite 24x7x4 service |
| OSNBD3/2/1 | - | 3/2/1-year onsite NBD service | |
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
|
|||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
