SYS-120U-TNR
Print

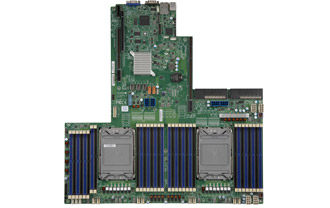

Intergrated Board
Key Features
- Key Applications
- Virtualization
- HPC
- Cloud Computing
- High End Enterprise Server
- Software Defined Storage
- Application Tier Service Provider
- 5G/Telco
Key Features
1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
- 2. Intel® C621A Chipset
- 3. 32 DIMM Slots;
Up to 8TB DRAM;
Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);
3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
- 4. Intel® Optane™ Persistent Memory 200 series
1 Internal PCI-E 4.0 x16
1 PCI-E 4.0 x16 (LP)
2 PCI-E 4.0 x16 (FH, 10.5"L)
- 5. Flexible networking options
- 6. 12x2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
- 7. 8 heavy duty fans with optimal fan speed control
- 8. 1200W redundant Titanium level power supplies
Specifications
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Titanium Level Parts List
| Parts List - (Items Included) | |||
 |
|||
 |
Part Number |
Qty |
Description |
| Motherboard / Chassis |
MBD-X12DPU-6 CSE-119UH3TS-R1K22P-T |
1 1 |
Super X12DPU-6 Motherboard 1U Chassis |
| Backplane | BPN-NVME4-119A-S12 | 1 | 1U 12-Slot SFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Device,HF,RoHS |
| Cable 1 | CBL-PWEX-0920-1 | 1 | 2x4pin,P4.2,Female,GPU to 2 2x2,P4.2,Female,67cm,YRB, |
| Cable 2 | CBL-PWEX-0921-1 | 1 | 2x4,P4.2,F,GPU to 2x2,P4.2,F,33cm,YRB,18AWG,10.5A/p,RoHS |
| Cable 3 | CBL-SAST-1241F-100 | 1 | Slimline x4 (STR) to Slimline x4 (STR),FFC,INT,41CM,100 |
| Cable 4 | CBL-SAST-1250F-100 | 1 | Slimline x4 (STR) to Slimline x4 (STR),FFC,INT,50CM,100 |
| Cable 5 | CBL-SAST-1270F-100 | 1 | Slimline x4 (STR) to Slimline x4 (STR),FFC,INT,70CM,100 |
| Air Shroud | MCP-310-11907-0N | 1 | CSE-119UH3 Plastic Air Shroud (right side) for X12DPU |
| Air Shroud | MCP-310-11908-0N | 1 | CSE-119UH3 Plastic Air Shroud (left side) for X12DPU |
| Riser Card | RSC-W-66G4 | 1 | 1U LHS WIO Riser card with two PCI-E 4.0 x16 slots,HF,RoHS |
| Riser Card | RSC-WR-6 | 1 | 1U RHS WIO Riser card with one PCI-E 4.0 x16 slot,HF,RoHS |
| Heatsink / Retention | SNK-P0077P | 2 | 1U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms |
| *Power Supply | PWS-1K22A-1R | 2 | 1U 1200W/800W Titanium Redundant Power Supply CRPS 73.5x203x40mm,RoHS/REACH |
| *Cable 6 | CBL-CDAT-1290F | 1 | [NR] FRONT CNTL,20 TO 20 PIN, P0.5, FFC,FLAT, 90CM, STD |
| *Cable 7 | CBL-CUSB-1265-119 | 1 | [NR] USB 3.0(F) Type A, RA to USB3.0 20pin,65CM,26/32AWG |
| *Cable 8 | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH |
| *FAN 1 | FAN-0210L4 | 8 | 40x40x56 mm, 29.5K-25.5K RPM, Counter-rotating Fan, RoHS |
| *Front Panel | FPB-FP119UH | 1 | Front control board for 119UHTS 1U Ultra |
| *Parts | MCP-160-11901-0B | 1 | 1U Ultra Mylar cable channel for X12 |
| *Parts | MCP-160-11902-0B | 1 | 1U Ultra FP1 cable protective Mylar |
| *Drive Tray(s) | MCP-220-00187-0B | 12 | 2.5 thin profile drive tray, standard color tab, for SC119UH |
| *Rear Window | MCP-240-81916-0N | 1 | Ultra I/O Rear window for SC819U, 119U tool-less chassis (No opening) |
| *Rail Set | MCP-290-00102-0N | 1set | Outer rail, quick-release type, 25.6\" to 33.05\" |
| *Rail Set | MCP-290-00112-0N | 1set | Inner rail, extension, long (quick) for 1U 17.2 |
| *Rail Set | MCP-290-00179-0N | 1set | 1U Inner rail, front, quick-release type (W/O handle) |
| *Air Shroud | MCP-310-81905-0B | 1 | Plastic air shroud for SC819U, 119U, 829U, 219U (PWS),RoHS/REACH |
| *Fan Holder | MCP-320-00056-0B | 32 | 40X56 rubber fan pin for SC819U, SC119U,RoHS/REACH |
| *Fan Holder | MCP-320-11901-0B | 2 | Fan Holder for 4pcs 40x56 fans with cable tunnel optimize for X12DPU and SC119UH3 |
Notes:
|
|||
| Optional Parts List | |||
|
|||
| Part Number | Qty | Description | |
| Add-on card for M.2 support | AOC-SLG3-2H8M2-O | - | 2x Hybrid NVMe/SATA M.2 RAID Carrier, Standard LP,RoHS |
| CacheVaults | BTR-CV3108-1U1 | - | CacheVault for Broadcom 3108 with Supercap mounting in 1U 40x56 fan tray |
| BTR-CVPM05 + BKT-BBU-BRACKET-05 | - | CacheVault for Broadcom 3908/3916 with Supercap | |
| Drive Tray | MCP-220-00178-0B | 1 ~ 12 | 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH |
| Global Services & Support | OS4HR3/2/1 | - | 3/2/1-year onsite 24x7x4 service |
| OSNBD3/2/1 | - | 3/2/1-year onsite NBD service | |
| Intel® VROC RAID Key Options | AOC-VROCPREMOD | 1 | Intel VROC Premium, RAID 0, 1, 5, 10 |
| AOC-VROCINTMOD | 1 | Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) | |
| AOC-VROCSTNMOD | 1 | Intel VROC Standard, RAID 0, 1, 10 | |
| NVMe Support Cable Kit | CBL-KIT-120U-TNR-12 | 1 | 12 NVMe Cables Kit for X12 Ultra SYS-120U-TNR |
| Optional Storage Controller Card + Cable(s) | AOC-S3808L-L8iT-O + 1x CBL-SAST-1264F-100 | - | Standard LP, 8 internal ports (12Gb/s) Gen-4; HBA |
| AOC-S3108L-H8iR-16DD + 1x CBL-SAST-1260-100 | - | Standard LP, 8 internal ports (12Gb/s) Gen-3; RAID 0, 1, 5, 6, 10, 50, 60 | |
| AOC-S3916L-H16iR-32DD-O + 1x CBL-SAST-1265F-100, 1x CBL-SAST-1271F-100 | - | Standard LP, 16 internal ports (12Gb/s) Gen-4; RAID 0, 1, 5, 6, 10, 50, 60 | |
| AOC-S3008L-L8i + 1x CBL-SAST-1260-100 | - | Standard LP, 8 internal ports (12Gb/s) Gen-3; RAID 0,1,1E | |
| AOC-S3008L-L8E + 1x CBL-SAST-1260-100 | - | Standard LP, 8 internal ports (12Gb/s) Gen-3; HBA | |
| AOC-S3816L-L16iT-O + 1x CBL-SAST-1264F-100, 1x CBL-SAST-1265F-100 | - | Standard LP, 16 internal ports (12Gb/s) Gen-4; HBA | |
| AOC-S3908L-H8iR-16DD-O + 1x CBL-SAST-1271F-100 | - | Standard LP, 8 internal ports (12Gb/s) Gen-4; RAID 0, 1, 5, 6, 10, 50, 60 | |
| AOC-S3008L-L8E+-O + 1x CBL-SAST-1260-100 | - | Standard LP, 8 internal ports (12Gb/s) Gen-3; HBA + I2C | |
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Trusted Platform Module Options | AOM-TPM-9670V-S-O | 1 | SPI capable vertical TPM 2.0 provisioned for server,RoHS |
| AOM-TPM-9670V-S-FIPS-P | 1 | AOM-TPM-9670V-S-FIPS TPM 2.0 support TAA and FIPS,RoHS | |
| AOM-TPM-9671V-S-O | 1 | SPI capable vertical TPM 1.2 provisioned for server,RoHS | |
| Ultra Riser Card Options + Rear Window | AOC-URG4N4-O | 1 | 1U Ultra Riser without NIC, with 1 PCI-E 4.0 x16 (internal), and 4 NVMe ports (2x SlimSAS x8).,RoHS |
| AOC-URG4N4-I4XTS-O + MCP-240-81911-0N | 1 | 1U Ultra Riser with 2-port 10GBase-T RJ45 & 2-port 10G SFP+, based on Intel Carlsville X710-TM4, with 1 PCI-E 4.0 x16 (internal), and 4 NVMe ports (2x SlimSAS x8).,RoHS | |
| AOC-URG4N4-I2XT-O + MCP-240-81909-0N | 1 | 1U Ultra Riser with 2-port 10GBase-T RJ45, based on Intel Carlsville X710-TM4, with 1 PCI-E 4.0 x16 (internal), and 4 NVMe ports (2x SlimSAS x8),RoHS | |
