    SYS-620C-TN12R

    Print

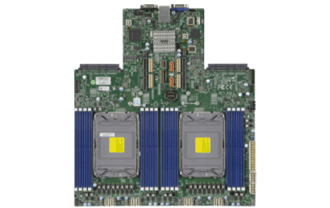

    Intergrated Board
    X12DDW-A6
    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • Key Applications
      - Web Server, Firewall Application
      - Data Center Optimized, Value IaaS
      - Cloud Computing, Compact Server
      - DNS & Gateway Servers, Firewall Application
      - CDN, Edge Nodes

      Key Features
      1. Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
    • 2. Intel® C621A Chipset
    • 3.16 DIMMs up to 6TB 3DS ECC DDR4-3200: LRDIMM/RDIMM/Intel® DCPMM
    • 4. 4 PCI-E 4.0 x16 FHHL (OR) 2 PCI-E 4.0 x16 FHHL and 4 PCI-E 4.0 x8 FHHL;
      2 PCI-E 4.0 x16 AIOM (OCP 3.0);
      2 PCI-E 3.0 x2 NVMe M.2
    • 5. Dual AIOM with NCSI (OCP 3.0) for networking, 1 dedicated IPMI LAN
    • 6. 12x 3.5/2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
    • 7. 3 heavy duty fans with optimal fan speed control, 1 air shroud
    • 8. 1200W redundant Titanium level 100-240Vac and 200-240 Vdc power supplies
    • 9. 1 VGA, 1 COM, 2 USB 3.0 (rear)
    Specifications
    Product SKUs
    SYS-620C-TN12R
    • SuperServer SYS-620C-TN12R (Black front & sliver body)

    Motherboard

    Super X12DDW-A6

    Processor/Cache
    CPU
    • Dual Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    • 3 UPI up to 11.2GT/s
    • Support CPU TDP 270W
    Cores
    • Up to 40C/80T

    System Memory
    Memory
    • Memory Capacity: 16 DIMM slots
    • UP to 4TB: 16x 256 GB DRAM
    • UP to 6TB: 8x 256 GB DRAM and 8x 512 GB PMem
    • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM
    • Intel® Optane™ persistent memory 200 series
    Memory Voltage
    • 1.2 V
    Error Detection
    • ECC

    On-Board Devices
    NVMe
    • NVMe; RAID 0/1/5/10 support
    SATA
    • SATA3 (6Gbps); RAID 0/1/5/10 support
    Chipset
    • Intel® C621A
    Network Connectivity
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

    Input / Output
    SATA
    • 1 SuperDOM port(s)
    LAN
    • 1 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 port(s) (2 rear)
    Video
    • 1 VGA port(s)

    System BIOS
    BIOS Type
    • AMI 32MB SPI FLASH ROM

    Management
    Software
    • SCC
    • Redfish API
    • IPMI 2.0
    • SSM
    • Intel® Node Manager
    • SPM
    • KVM with dedicated LAN
    • SUM
    • NMI
    • Watch Dog
    • SuperDoctor® 5
    Power Configurations
    • ACPI/APM Power Management

    PC Health Monitoring
    CPU
    • 4+1 Phase-switching voltage regulator
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    FAN
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    • Fans with tachometer monitorin
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-LA26AC12-R1K23AW

    Dimensions and Weight
    Height
    • 3.5" (89mm)
    Width
    • 17.2" (437mm)
    Depth
    • 25.5" (648mm)
    Package
    • 11.4" (H) x 26.7" (W) x 34.5" (D)
    Weight
    • Net Weight: 33.5 lbs (15.2 kg)
    • Gross Weight: 60 lbs (27.2 kg)
    Available Color
    • Black front & sliver body

    Front Panel
    Buttons
    • Power On/Off button
    LEDs
      • Power status LED
      • HDD activity LED
      • Network activity LEDs
      • Universal Information (UID) LED

    Expansion Slots
    PCI-Express (PCI-E)
    • Slot 1: PCI-E 4.0 x8 FH, 6.6"L (optional x16 by merging slot 2)
    • Slot 2: PCI-E 4.0 x8 FH, 6.6"L
    • Slot 3: PCI-E 4.0 x16 FH, 6.6"L
    • Slot 4: PCI-E 4.0 x8 FH, 6.6"L
    • Slot 5: PCI-E 4.0 x8 FH, 6.6"L (optional x16 by merging slot 4)
    • Slot 6: PCI-E 4.0 x16 FH, 6.6"L
    • Slot A1: PCI-E 4.0 x16 OCP 3.0 Mezzanine NIC
    • Slot A2: PCI-E 4.0 x16 OCP 3.0 Mezzanine NIC


      • (Slot 1, 2, 4 and 5 can support FH, 10.5"L by using 1U heatsinks. Some slots share PCIe lanes with NVMe drives.)

    Drive Bays / Storage
    Hot-swap
    • 12x 3.5" hot-swap NVMe/SATA/SAS drive bays (12x 2.5" NVMe hybrid) (Default 3.5" drive trays can also support 2.5" drives.)
    M.2
    • 2 M.2 NVMe
    • M-Key, 2280

    System Cooling
    Fans
    • 3x 8cm heavy duty fans with optimal fan speed control
    Air Shroud
    • 1 Air Shroud(s)

    Power Supply
    AC 1200W, Titanium Level, Redundancy,PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
    Dimension

    (W x H x L)
    • 76 x 40 x 336 mm
    Output Type
    • Gold Finger
    Certification Titanium Level 94%+   Titanium Level



      [ Test Report ]

    Operating Environment
    Environmental Spec.
    • Operating Temperature:
         10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
         -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)


    Parts List
    Parts List - (Items Included)


    		 Part Number

    		 Qty

    		 Description
    Motherboard / Chassis MBD-X12DDW-A6

    CSE-LA26AC12-R1K23AW     		1

    1     		Super X12DDW-A6 Motherboard

    2U Chassis
    Backplane BPN-SAS3-LA26A-N12 1 2U 12-Slot LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS
    Cable 1 CBL-SAST-1208LP-85 4 SlimlineLP x8 (STR) to SlimlineLP x8 (STR),8CM,85 OHM,Ro
    Cable 2 CBL-SAST-1274LP-100 1 SlimlineLP x8 (LE) to 2x Slimline x4 (STR),68/76CM,100 O
    Cable 3 CBL-SAST-1285LP-100 1 SlimlineLP x4 (STR) to Slimline x4 (STR),57CM,100 OHM,Ro
    Parts MCP-150-00022-0B 6 Rubber pad, 5mm H, 10x10mm
    Air Shroud MCP-310-82606-0B 1 Mylar air shroud X12DDW for SCLA26-AW
    Manual MNL-2344-QRG 1 620C-TN12R Quick Reference Guide
    Riser Card RSC-D2-668G4 1 2U LHS DCO Riser card with two PCI-E 4.0 x16 and one PCI-E
    Riser Card RSC-D2R-668G4 1 2U RHS DCO Riser card with two PCI-E 4.0 x16 and one PCI-E
    Heatsink / Retention SNK-P0078P 2 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
    *Power Supply PWS-1K23A-1R 2 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
    *Power Distributor PDB-PT826-S4824 1 Based on PDB-PT826-8824 to add 2pcs 8pin for option support
    *Cable 4 CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
    *FAN 1 FAN-0206L4 3 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers
    *Drive Tray(s) MCP-220-00184-0B 12 Black gen-9 tool-less cost-effective 3.5
    *Rear Window MCP-240-00170-0N 1 2U X12 WIO rear window for SCLA26
    *Rail Set MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W
    *Drive Tray(s) MCP-290-82607-0N 1 826B/216B rear dummy cover for 2 X 2.5
    Notes:
    1. Parts with * are inside the chassis
    2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
    Optional Parts List
      Part Number Qty Description
    3108 CacheVault MCP-240-00127-0N 1 SuperCap mounting bracket for 2.5" HDD location
    BTR-TFM8G-LSICVM02 1 CacheVault for Broadcom 3108
    BKT-BBU-BRACKET-05 1 SuperCap mounting bracket for PCI-E location
    3108 RAID Card AOC-S3108L-H8IR-16DD 1 Standard LP, 8 internal ports (12Gb/s) Gen-3, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
    CBL-SAST-1260-100 1 MiniSAS HD x8 (LE) to 2x Slimline x4 (STR),60CM
    3808 HBA Card CBL-SAST-1276F-100 1 Slimline x8 (LE) to 2x Slimline x4 (STR),76/76CM
    AOC-S3808L-L8IT 1 Standard LP, 8 internal ports (12Gb/s) Gen-4, 16HDD; HBA;
    3816 HBA Card CBL-SAST-1276F-100 1 Slimline x8 (LE) to 2x Slimline x4 (STR),76/76CM
    CBL-SAST-1265F-100 1 Slimline x8 (STR) to Slimline x4 (STR),64CM
    AOC-S3816L-L16IT 1 Standard LP, 16 internal ports (12Gb/s) Gen-4, 122HDD; HBA;
    3908 RAID Card AOC-S3908L-H8IR-16DD 1 Standard LP, 8 internal ports (12Gb/s) Gen-3, 122HDD; RAID 0, 1, 5, 6, 10, 50, 60;
    CBL-SAST-1276F-100 1 Slimline x8 (LE) to 2x Slimline x4 (STR),76/76CM
    3908/3916 CacheVault MCP-240-00127-0N 1 SuperCap mounting bracket for 2.5" HDD location
    BTR-CVPM05 1 CacheVault for Broadcom 3908/3916
    BKT-BBU-BRACKET-05 1 SuperCap mounting bracket for PCI-E location
    3916 RAID Card CBL-SAST-1276F-100 1 Slimline x8 (LE) to 2x Slimline x4 (STR),76/76CM
    CBL-SAST-1265F-100 1 Slimline x8 (STR) to Slimline x4 (STR),64CM
    AOC-S3916L-H16IR-32DD 1 Standard LP, 16 internal ports (12Gb/s) Gen-4, 32HDD; RAID 0, 1, 5, 6, 10, 50, 60;
    Add-on card for additional M.2 AOC-SLG3-2M2 - Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules
    AOC-SLG3-2H8M2 - Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe/SATA Modules; RAID 0,1
    AIOM Network Card(s) AOC-AG-i4M - OCP 3.0 AIOM NIC, 4x 1GbE RJ45, PCI-E 2.1 x4, Intel® i350-AM4
    AOC-AG-i2M - OCP 3.0 AIOM NIC, 2x 1GbE RJ45, PCI-E 2.1 x4, Intel® i350-AM2
    AOC-ATG-i4SM - OCP 3.0 AIOM NIC, 4x 10GbE SFP+, PCI-E 3.0 x8, Intel® XL710-BM1
    AOC-A25G-m2SM - OCP 3.0 AIOM NIC, 2x 25GbE SFP28, PCI-E x8, Mellanox® CX-6 LX
    AOC-ATG-i2TM - OCP 3.0 AIOM NIC, 2x 10GbE RJ45, PCI-E 3.0 x4, Intel® X550-AT2
    AOC-A25G-b2SM - OCP 3.0 AIOM NIC, 2x 25GbE SFP28, PCI-E x8, Broadcom® BCM57414
    AOC-ATG-i2T2SM - OCP 3.0 AIOM NIC, 4x 10GbE RJ45 & SFP+, PCI-E x8, Intel® X710-TM4
    AOC-A100G-m2CM - OCP 3.0 AIOM NIC, 2x 100GbE QSFP28, PCI-E 4.0 x16, Mellanox® CX-6 DX
    AOC-ATG-i2SM - OCP 3.0 AIOM NIC, 2x 10GbE SFP+, PCI-E 3.0 x8, Intel® X710-BM2
    AOC-A100G-b2CM - OCP 3.0 AIOM NIC, 2x 100GbE QSFP28, PCI-E 4.0 x16, Broadcom® BCM57508
    AOC-ATGC-i2TM - OCP 3.0 AIOM NIC, 2x 10GbE RJ45, PCI-E 3.0 x4, Intel X710-AT2
    AOC-AH25G-m2S2TM - OCP 3.0 AIOM NIC, 2x 25GbE SFP28 & 2x 10GbE RJ45, PCI-E x8/x4, Mellanox® CX4 Lx EN & Intel® X550-AT2
    AOC-AG-i4SM - OCP 3.0 AIOM NIC, 4x 1GbE SFP, PCI-E 2.1 x4, Intel® i350-AM4
    Cable Management Arm MCP-120-82601-0N 1 Cable arm adapter for SCLA26-AW
    MCP-290-00073-0N 1 Supermicro Cable Management Arm for 2U, 3U and 4U chassis
    GPU Support SNK-P0077P 2 1U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
    MCP-310-82613-0N 1 Plastic air shroud X12DDW for SCLA26-AW(GPU)
    CBL-PWEX-1040 2 PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM
    Intel VROC Key AOC-VROCSTNMOD 1 Intel VROC Standard, RAID 0, 1, 10
    AOC-VROCPREMOD 1 Intel VROC Premium, RAID 0, 1, 5, 10
    AOC-VROCINTMOD 1 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
    NVMe Cables Kit CBL-KIT-620C-TN12R-12 1 Supports 12x NVMe drives. Kit includes:
    4x CBL-SAST-1236LP-85 (NVMe drive slot # 0-7)
    2x CBL-SAST-1267FLP-85 (NVMe drive slot # 8-11)
    Rear Window NVMe Drive Kit MCP-220-82620-0N 1 Rear Window Module for 2x 2.5" NVMe Drives PCIE Gen 4
    CBL-SAST-1236LP-85 1 Slimline x8 (STR) to 2x SlimlineLP x4 (STR),40/40CM
    Rear Window SATA Drive Kit MCP-220-82616-0N 1 Rear Window Module for 2x 2.5" SATA/SAS Drives
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
    TPM security module AOM-TPM-9670V-S-FIPS 1 SPI capable TPM 2.0 with Infineon 9670 controller w/ FIPS; vertical form factor
    AOM-TPM-9671V 1 SPI capable TPM 1.2 with Infineon 9670 controller; vertical form factor
    AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller; vertical form factor
    Note: For special low power setup SKU (3 optional parts below), please contact our sales for details.
    Fan FAN-0181L4 3 80x80x38 mm 9.4K RPM Chassis Middle Fan
    Power Supply PWS-1K23A-1R 1 1200W 100-240Vac, and DC240 input
    Power Supply Dummy Cover CSE-PT0130L 1 Power Supply Dummy Cover
