    SYS-220HE-FTNRD

    Print

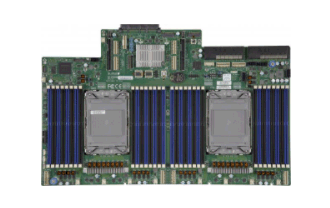

    Intergrated Board
    X12DHM-6
    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • Key Applications
      - 5G Core and Edge
      - Telecom Micro Data Center
      - AI Inference and Machine Learning
      - Network Function Virtualization
      - Cloud Computing

      Key Features
      1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
    • 2. 32 DIMM Slots;
      Up to 8TB DRAM;
      Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);
      3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
      Intel® Optane™ Persistent Memory 200 series
    • 3. 4 PCI-E 4.0 x16 slots with GPU/Accelerator support
    • 4. Flexible networking options with 2 AIOM networking slot (OCP NIC 3.0 compatible)
    • 5. Up to 6x 2.5" hot-swap drive bays with options to support NVMe/SATA/SAS drives
    • 6. 6 heavy duty hot-swap fans with optimal fan speed control
      Front I/O, tool-less design
    • 7. 1300W redundant DC power supplies
    Specifications
    Product SKUs
    SYS-220HE-FTNRD
    • SuperServer SYS-220HE-FTNRD

    Motherboard


    Super X12DHM-6

    Processor/Cache
    CPU
    • Dual Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    • 3 UPI up to 11.2GT/s
    • Support CPU TDP 270W *
    Cores
    • Up to 40C/80T; Up to 60MB Cache
    Note
    • *Require NDA. Please reach out to Supermicro sales representative for more details.

    System Memory
    Memory
    • Memory Capacity: 32 DIMM slots
    • UP to 8TB: 32x 256 GB DRAM
    • UP to 12TB: 16x 512 GB PMem and 16x 256 GB DRAM
    • Memory Type: 3200MHz ECC DDR4
    • Intel® Optane™ persistent memory 200 series
    Memory Voltage
    • 1.2 V
    Error Detection
    • ECC

    On-Board Devices
    Chipset
    • Intel® C621A
    Network Connectivity
    • 2x 1GbE BaseT with Intel® i350-AM2 (optional)
    • 4x 1GbE C or 4x 1GbE SFP with Intel® i350-AM4 (optional)
    • 2x 10GbE BaseT with Intel® X550-AT2 (optional)
    • 2x 10GbE SFP+ with Intel® X710-BM2 (optional)
    • 4x 10GbE SFP+ with Intel® XL710-BM1 (optional)
    • 4x 10GbE RJ45/SFP+ with Intel® X710-TM4 (optional)
    • 2x 25GbE SFP28 with Broadcom® BCM57414 (optional)
    • 4x 25GbE RJ45/SFP28 with Mellanox® CX-4 Lx EN Intel® X550-AT2 (optional)
    • 2x 100GbE QSFP28 with Broadcom® BCM57508 (optional)
    • 1x 1Gb with Aspeed 2600
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    BMC
    • ASPEED AST2600 BMC

    System BIOS
    BIOS Type
    • AMI 256MB SPI Flash

    Management
    Software
    • Redfish API
    • IPMI 2.0
    • SSM
    • Intel® Node Manager
    • SPM
    • KVM with dedicated LAN
    • SUM
    • NMI
    • Watch Dog
    • SuperDoctor® 5
    Power Configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management

    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    FAN
    • Fans with tachometer monitoring
    • Pulse Width Modulated (PWM) fan connectors
    • Status monitor for speed control
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-HE211-R000NFP

    Dimensions and Weight
    Height
    • 3.5" (88.9mm)
    Width
    • 17.2" (436.88mm)
    Depth
    • 22.6" (574mm)
    Package
    • 9.7" (H) x 23.5" (W) x 36.9" (D)
    Weight
    • Net Weight: 34.4 lbs (15.6 kg)
    • Gross Weight: 47.4 lbs (21.5 kg)
    Available Color
    • N/A

    Front Panel
    Buttons
    • Power On/Off
    • UID button
    LEDs
      • HDD activity
      • LAN1 activity
      • Power status
      • System information

    Expansion Slots
    PCI-Express (PCI-E)
    • Slot 1: (Optional) PCI-E 4.0 x16 or x8 FH, 10.5"L
    • Slot 2: (Optional) PCI-E 4.0 x8 FH, 10.5"L
    • Slot 3: (Optional) PCI-E 4.0 x16 or x8 FH, 10.5"L
    • Slot 4: (Optional) PCI-E 4.0 x16 or x8 FH, 10.5"L
    • Slot 5: (Optional) PCI-E 4.0 x16 or x8 FH, 10.5"L
    • Slot 6: (Optional) PCI-E 4.0 x8 FH, 10.5"L
    • Slot 7: (Optional) PCI-E 4.0 x16 or x8 FH, 6.6"L
    • Slot 8: (Optional) PCI-E 4.0 x8 FH, 6.6"L
    Note
    • If Slot 1 is configured as PCI-E x16, Slot 2 will be disabled; If Slot 3 is configured as PCI-E x16, Slot 4 will be disabled; If Slot 5 is configured as PCI-E x16, Slot 6 will be disabled; If Slot 7 is configured as PCI-E x16, Slot 8 will be disabled.

    Drive Bays / Storage
    Hot-swap
    • 6x 2.5" hot-swap NVMe/SATA/SAS drive bays (6x 2.5" NVMe hybrid)
    M.2
    • 2 M.2 NVMe OR 2 M.2 SATA3

    System Cooling
    Fans
    • 6x 6cm heavy duty fans with optimal fan speed control
    Air Shroud
    • 4 Air Shroud(s)

    Power Supply
    1300W Redundant DC -48V Power Supplies with PMBus
    Dimension

    (W x H x L)
    • 73.5 x 40 x 203 mm
    +12V
    • Max: 108.3A
    12V SB
    • Max: 2.1A / Min: 0A
    Output Type
    • 25 Pairs Gold Finger Connector
    Certification

      [ Test Report ]

    Operating Environment
    Environmental Spec.
    • Operating Temperature:
         5°C ~ 40°C (41°F ~ 104°F)
    • Non-operating Temperature:
         -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)


    Parts List
    Parts List - (Items Included)


    		 Part Number

    		 Qty

    		 Description
    Motherboard / Chassis MBD-X12DHM-6

    CSE-HE211-R000NFP     		1

    1     		Super X12DHM-6 Motherboard

    2U Chassis
    Add-on Card / Module AOM-AIOM-2X8-P 1 2nd AIOM board (cable solution) for Hyper-E 2U system,RoHS
    Add-on Card / Module AOM-HE211-AIOM-P 1 AIOM connection for Hyper-E 2U system,RoHS
    Add-on Card / Module AOM-HS119-IO-P 1 Hyper IO Board,RoHS
    Backplane BPN-NVME4-HE211N-S6 1 1U 6-Slot BPN Supports 6 x SAS3/SATA3/NVMe4 Storage Device,HF,RoHS
    Cable 1 CBL-GNZ4-1221LP-85 1 Genz4C (STR) to 2x SlimlineLP x8 (STR),21/23CM,85 OHM,R
    Cable 2 CBL-OTHR-1117 1 [NR] 2x15,PH1.0 to 2x15,PH1.0,28AWG,30CM,1A/pin,RoHS
    Cable 3 CBL-PWEX-1088-26 3 2x4,PH4.2 + 2x2pin,PH3.0 to 2x4,PH3.0,26/54CM,16AWG,9A
    Cable 4 CBL-PWEX-1226 1 Microfit,2x4,PH3.0 to Microfit,2x4,PH3.0,30CM,9A/P,16AW
    Cable 5 CBL-SAST-1218LP-85 1 SlimlineLP X8 (STR) to SlimlineLP x8 (STR),INT,19CM,85
    Cable 6 CBL-SAST-1222LP-85 1 SlimlineLP X8 (STR) to SlimlineLP x8 (STR),27CM,85 OHM,
    Cable 7 CBL-SAST-1223LP-85 1 SlimlineLP X8 (STR) to SlimlineLP x8 (STR),INT,12CM,85
    Cable 8 CBL-SAST-1226LP-85 1 SlimlineLP X8 (STR) to SlimlineLP x8 (STR),25CM,85 OHM,
    Cable 9 CBL-SAST-1229LP-85 3 SlimlineLP X8 (STR) to SlimlineLP x8 (STR),INT,28CM,85
    Cable 10 CBL-SAST-1230LP-85 1 SlimlineLP X8 (STR) to SlimlineLP x8 (RA),INT,29CM,85 O
    Cable 11 CBL-SAST-1232LP-85 1 [NR] SlimlineLP X8 (STR) to SlimlineLP x8 (RA),INT,32CM,85 O
    Cable 12 CBL-SAST-1243LP-85 1 SlimlineLP X8 (RA) to SlimlineLP x8 (STR),INT,43CM,85 O
    Cable 13 CBL-SAST-1249LP-85 1 SlimlineLP x8 (STR) tp 2x SlimlineLP x4 (STR),49/61CM,8
    FAN 1 FAN-0215L4 6 60x60x56 mm, 17K-17K RPM, Counter-rotating Cooling Fan for 2U Hyper-E (CSE-HE211) Series Servers
    Power Supply PWS-1K30F-1R 2 1300W -48Vdc single output power supply
    Riser Card RSC-H2-6888G4 1 2U LHS Hyper riser card with one PCI-E 4.0 x16 and three PCI
    Riser Card RSC-H2-68G4 2 2U LHS Hyper riser card with one PCI-E 4.0 x16 and one PCI-E
    Heatsink / Retention SNK-P0078PR 2 2U Proprietary Passive CPU Heat Sink for X12 Generation Hype-E Series Servers
    *Cable 14 CBL-CDAT-1290F 1 [NR] FRONT CNTL,20 TO 20 PIN, P0.5, FFC,FLAT, 90CM, STD
    *Cable 15 CBL-PWEX-1104-8 1 [NR[ 2x4,PH3.0,M to 2x3,PH2.0,F,3A/pin,22AWG,8CM
    *Front Panel FPB-FP826-T 1 Chassis front control board for SC826
    *Drive Tray(s) MCP-220-00178-0B 6 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH
    Notes:
    1. Parts with * are inside the chassis
    2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
