    SYS-420GP-TNR

    Print

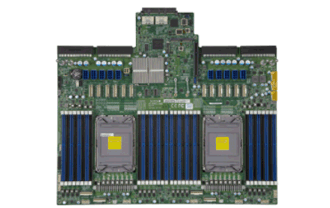

    Intergrated Board
    X12DPG-OA6
    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • Key Applications
    • - High Performance Computing
      - Rendering
      - VDI
      - AI/Deep Learning Training

      Key Features
    • 1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
    • 2. Intel® C621A Chipset
    • 3. 32 DIMM Slots;
      Up to 8TB DRAM;
      Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);
      3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
      Intel® Optane™ Persistent Memory 200 series
    • 4. 12 PCI-E Gen 4.0 X16 FHFL Slots
      AIOM/OCP 3.0 Support
    • 5. Flexible networking options
    • 6. 16x HOT SWAP 2.5” SATA/SAS
      2 M.2 NVMe
      8x HOT SWAP 2.5” NVMe
      Total 24x 2.5" Hot-swap drive bays
    • 7. 8 Removable heavy duty fans w/ Optimal Fan Speed Control
    • 8. 4x 2000W redundant Titanium level power supplies
    Specifications
    Product SKUs
    SYS-420GP-TNR
    • SuperServer SYS-420GP-TNR (Black Front & Silver Body)

    Motherboard
    Super X12DPG-OA6

    Processor/Cache
    CPU
    • Dual Socket P+ (LG-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    • 3 UPI up to 11.2GT/s
    • Support CPU TDP 270W

    GPU
    Supported GPU
    • NVIDIA A100,A40, and RTX A6000
    CPU-GPU Interconnect
    • PCI-E 4.0 x16 Switch Dual-Root
    GPU-GPU Interconnect
    • None

    System Memory
    Memory
    • Memory Capacity: 32 DIMM slots
    • UP to 8TB: 32x 256 GB DRAM
    • UP to 12TB: 16x 512 GB PMem
    • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM
    • Intel® Optane™ persistent memory 200 series
    Memory Voltage
    • 1.2 V
    Error Detection
    • ECC

    On-Board Devices
    SATA
    • SATA3 (6Gbps); RAID 0/1/5/10 support
    Chipset
    • Intel® C621A
    Network Connectivity
    • 2x 1GbE BaseT with Intel® I350
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    BMC
    • ASPEED AST2600 BMC

    Input / Output
    Video
    • 1 VGA port(s)

    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM

    Management
    Software
    • Redfish API
    • IPMI 2.0
    • SSM
    • Intel® Node Manager
    • SPM
    • KVM with dedicated LAN
    • SUM
    • NMI
    • Watch Dog
    • SuperDoctor® 5
    Power Configurations
    • ACPI Power Management
    • Power-on mode for AC power recovery

    PC Health Monitoring
    CPU
    • 4+1 Phase-switching voltage regulator
    • Monitors for CPU Cores, Chipset Voltages, Memory
    FAN
    • Fans with tachometer monitoring
    • Pulse Width Modulated (PWM) fan connectors
    • Status monitor for speed control
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 4U Rackmount
    Model
    • CSE-418G2TS-R4016BP

    Dimensions and Weight
    Height
    • 7" (178mm)
    Width
    • 17.2" (437mm)
    Depth
    • 29" (737mm)
    Package
    • 26.57" (H) x 27" (W) x 41" (D)
    Weight
    • Net Weight: 65.5 lbs (29.7 kg)
    • Gross Weight: 100 lbs (45.3 kg)
    Available Color
    • Black Front & Silver Body


    Expansion Slots
    PCI-Express (PCI-E)
    • Slot 10: PCI-E 4.0 x16 FHFL
    • Slot 11: PCI-E 4.0 x16 FHFL
    • Slot 12: PCI-E 4.0 x16 FHFL
    • Slot 1: PCI-E 4.0 x16 FHFL
    • Slot 2: PCI-E 4.0 x16 FHFL
    • Slot 3: PCI-E 4.0 x16 FHFL
    • Slot 4: PCI-E 4.0 x16 FHFL
    • Slot 5: PCI-E 4.0 x16 FHFL
    • Slot 6: PCI-E 4.0 x16 FHFL
    • Slot 7: PCI-E 4.0 x16 FHFL
    • Slot 8: PCI-E 4.0 x16 FHFL
    • Slot 9: PCI-E 4.0 x16 FHFL

    Drive Bays / Storage
    Hot-swap
    • 16x 2.5" hot-swap SATA/SAS, 8x 2.5” Hot-swap NVMe drive bays
    M.2
    • 2 M.2 NVMe

    System Cooling
    Fans
    • 8 heavy duty fans with optimal fan speed control

    Power Supply
    2000W Redundant Power Supplies with PMBus
    Dimension

    (W x H x L)
    • 73.5 x 40 x 203 mm
    AC Input
    • 1000W: 100-127Vac / 50-60Hz
    • 1800W: 200-220Vac / 50-60Hz
    • 1980W: 220-230Vac / 50-60Hz
    • 2000W: 220-240Vac / 50-60Hz
    • 2000W: 230-240Vac / 50-60Hz
    • 2000W: 230-240Vdc (For CCC Only)
    +12V
    • Max: 83A / Min: 0A (100Vac-127Vac)
    • Max: 150A / Min: 0A (200Vac-220Vac)
    • Max: 165A / Min: 0A (220Vac-230Vac)
    • Max: 166A / Min: 0A (230Vac-240Vac)
    12V SB
    • Max: 3.5A / Min: 0A
    Output Type
    • 25 Pairs Gold Finger Connector
    Certification Titanium Level94%+   Titanium Level



      [ Test Report ]

    Operating Environment
    Environmental Spec.
    • Operating Temperature:
         10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
         -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)


    Parts List
    Parts List - (Items Included)


    		 Part Number

    		 Qty

    		 Description
    Motherboard / Chassis MBD-X12DPG-OA6

    CSE-418G2TS-R4016BP     		1

    1     		Super X12DPG-OA6 Motherboard

    4U Chassis
    Add-on Card / Module AOM-PCIE4-418P-1-P 1 GPU board for 4U PCIE GPU system,HF,RoHS
    Add-on Card / Module AOM-PIO-I2G 1 AOM-PIO-I2G
    Backplane BPN-NVME4-216N-S24 1 2U 24-slot all-hybrid direct-attached backplane, support 24x 2.5" NVME Gen4 / SAS / SATA storage devices.,RoHS
    Cable 1 CBL-PWCD-0900 4 PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17
    Cable 2 CBL-PWEX-0925 2 2x4,P3.0 to 2x4,P4.2,YL/RED,9.5A,55cm,16AWG,RoHS
    Cable 3 CBL-PWEX-0929 1 [NR]2x4,PH4.2 to MicroFit,2x4,PH3,YL/RED,9.5A/pin,80CM,16AWG
    Cable 4 CBL-PWEX-1028 10 GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C
    Cable 5 CBL-PWEX-1080 1 Mini-Fit 2x2 F, to Mini-Fit 2x2 F, 10A/pin,7cm,16AWG,RoH
    Cable 6 CBL-SAST-1215-85 4 Slimline x8 (STR) to Slimline x8 (STR),INT,15CM,85 OHM,
    Cable 7 CBL-SAST-1231-85 6 Slimline x8 (STR) to Slimline x8 (STR),INT,30CM, 85 OHM
    Cable 8 CBL-SAST-1235-85 6 Slimline x8 (STR) to Slimline x8 (STR),INT,35CM,85 OHM
    Cable 9 CBL-SAST-1244-85 2 Slimline x8 (STR) to Slimline x8 (STR),45CM,85 OHM,RoHS
    Cable 10 CBL-SAST-1266-100 2 Slimline x4 (STR) to Slimline x4 (STR) x4,INT 66CM,100
    Drive Tray(s) MCP-220-00047-0B 16 Black gen 3rd hot-swap 2.5inch HDD tray
    Drive Tray(s) MCP-220-00167-0B 8 Gen 3 2.5-inch Tool-less NVMe drive tray (clip design),RoHS
    Heatsink / Retention SNK-P0080AP4 2 4U Active CPU Heat Sink for X12 Generation DP Workstations and 4U Servers
    *Power Supply PWS-2K08A-1R 4 1U 2000W 100-240VAC Titanium Ultra power supply 73.5x40x203mm
    *Cable 11 CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
    *Cable 12 CBL-OTHR-0794 1 VGA,DB 15pin,F to 2x8,PH2.54,10CM,30 AWG,RoHS
    *Cable 13 CBL-PWEX-1069 8 PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,30CM,22AWG,5A/pin,RoHS
    *FAN 1 FAN-0199L4-1 8 92x92x38 mm, 11.5K RPM Cooling fan w/ 5A Fan Connector,RoHS
    *Front Panel FPB-TMP-002 1 Thermal Sensor board with 40cm I2C cable
    *Drive Tray(s) MCP-220-21602-0B 3 Black 2.5"; HDD dummy cover for SC213,216 (8 HDD Hex hole)
    *Rear Window MCP-240-84802-0N 1 21 slot rear window for SC418X
    *Parts MCP-260-41802-0N 1 IO shield for X12DPG-OA in SC418G
    *Front Panel MCP-280-82601-0N 1 Front control board adapter (TB826) for SC216,826,936,846
    *Rail Set MCP-290-00057-0N 1 set Rail set, quick/quick, default for 4U 17.2"; W
    *Rail Set MCP-290-00060-0N 1 Threaded rail adapter default for round hole rack
    *Rail Set MCP-290-00115-0N 1 Inner rail, quick-release type
    *Rail Set MCP-290-00117-0N 1 Outer rail, quick-release type
    Notes:
    1. Parts with * are inside the chassis
    2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
