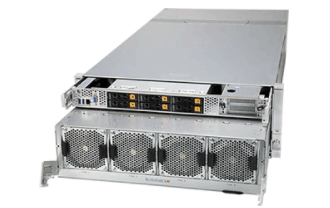

    SYS-420GP-TNAR

    Print

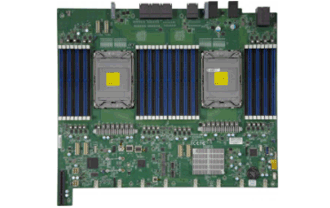

    Intergrated Board
    X12DGO-6
    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • Key Applications
      - High Performance Computing
      - AI/Deep Learning Training

      Key Features
      1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
    • 2. Intel® C621A Chipset
    • 3. 32 DIMM Slots;
      Up to 8TB DRAM;
      Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);
      3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
      Intel® Optane™ Persistent Memory 200 series
    • 4. 10 PCI-E Gen 4.0 X16 LP Slots
      AIOM/OCP 3.0 Support
    • 5. Flexible networking options
      2 M.2 NVMe and SATA
    • 6. 6x 2.5" Hot-swap NVMe/SATA/SAS drive bays
    • 7. 4 heavy duty fans with optimal fan speed control
    • 8. 4x 2200W redundant Titanium level power supplies
    Specifications
    Product SKUs
    SYS-420GP-TNAR
    • SuperServer SYS-420GP-TNAR (Black Front & Silver Body)

    Motherboard


    Super X12DGO-6

    Processor/Cache
    CPU
    • Dual Socket P+ (LG-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    • 3 UPI up to 11.2GT/s
    • Support CPU TDP 270W

    GPU
    Supported GPU
    • NVIDIA HGX A100 8
    CPU-GPU Interconnect
    • PCI-E 4.0 x16 CPU-to-GPU Interconnect
    GPU-GPU Interconnect
    • NVIDIA® NVLink™ with NVSwitch™ GPU-GPU Interconnect

    System Memory
    Memory
    • Memory Capacity: 32 DIMM slots
    • UP to 8TB: 32x 256 GB DRAM
    • UP to 12TB: 16x 512 GB PMem
    • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM
    • Intel® Optane™ persistent memory 200 series
    Memory Voltage
    • 1.2 V
    Error Detection
    • ECC

    On-Board Devices
    SATA
    • SATA3 (6Gbps); RAID 0/1/5/10 support
    Chipset
    • Intel® C621A
    Network Connectivity
    • 2x 10GbE BaseT with Intel® X550-AT2 (optional)
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    BMC
    • ASPEED AST2600 BMC

    Input / Output
    Video
    • 1 VGA port(s)

    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM

    Management
    Software
    • Redfish API
    • IPMI 2.0
    • SSM
    • Intel® Node Manager
    • SPM
    • KVM with dedicated LAN
    • SUM
    • NMI
    • Watch Dog
    • SuperDoctor® 5
    Power Configurations
    • ACPI Power Management
    • Power-on mode for AC power recovery

    PC Health Monitoring
    CPU
    • 4+1 Phase-switching voltage regulator
    • Monitors for CPU Cores, Chipset Voltages, Memory
    FAN
    • Fans with tachometer monitoring
    • Pulse Width Modulated (PWM) fan connectors
    • Status monitor for speed control
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 4U Rackmount
    Model
    • CSE-438G

    Dimensions and Weight
    Height
    • 6.9" (174mm)
    Width
    • 17.6" (446mm)
    Depth
    • 35.4" (900mm)
    Package
    • 29.5" (H) x 27.4" (W) x 44.9" (D)
    Weight
    • Net Weight: 166 lbs (75.3 kg)
    • Gross Weight: 225 lbs (102.1 kg)
    Available Color
    • Black Front & Silver Body


    Expansion Slots
    PCI-Express (PCI-E)
    • Slot 10: PCI-E 4.0 x16 LP
    • Slot 1: PCI-E 4.0 x16 LP
    • Slot 2: PCI-E 4.0 x16 LP
    • Slot 3: PCI-E 4.0 x16 LP
    • Slot 4: PCI-E 4.0 x16 LP
    • Slot 5: PCI-E 4.0 x16 LP
    • Slot 6: PCI-E 4.0 x16 LP
    • Slot 7: PCI-E 4.0 x16 LP
    • Slot 8: PCI-E 4.0 x16 LP
    • Slot 9: PCI-E 4.0 x16 LP

    Drive Bays / Storage
    Hot-swap
    • 6x 2.5" hot-swap NVMe/SATA/SAS drive bays
    M.2
    • 2 M.2 NVMe OR 2 M.2 SATA3

    System Cooling
    Fans
    • 4 heavy duty fans with optimal fan speed control

    Power Supply
    4x 2200W Redundant Power Supplies, Titanium Level
    Dimension

    (W x H x L)
    • 106.5 x 82.4 x 203.3 mm
    AC Input
    • 1200W: 100-127Vdc / 11A-14A / 50-60Hz
    • 2000W: 180-220Vdc / 11A-13A / 50-60Hz (UL/CUL only)
    • 1800W: 200-220Vdc / 9.5A-10A / 50-60Hz
    • 1980W: 220-230Vdc / 9.8A-10A / 50-60Hz
    • 2200W: 220-240Vdc / 11A-12A / 50-60Hz (UL/CUL only)
    • 2090W: 230-240Vdc / 9.8A-10A / 50-60Hz
    +12V
    • Max: 10A / Min: 9.5A (200Vdc-220Vdc) (CQC only)
    • Max: 10A / Min: 9.8A (220Vdc-230Vdc) (CQC only)
    • Max: 10A / Min: 9.8A (230Vdc-240Vdc) (CQC only)
    • Max: 10A / Min: 9.8A (230Vdc-240Vdc) (CQC only)
    Output Type
    • Backplanes (connector)
    Certification Titanium Level94%+   Titanium Level



      [ Test Report ]

    Operating Environment
    Environmental Spec.
    • Operating Temperature:
         10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
         40°C to 60°C (40°F to 140°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)


    Parts List
    Parts List - (Items Included)


    		 Part Number

    		 Qty

    		 Description
    Motherboard / Chassis MBD-X12DGO-6

    CSE-438G     		1

    1     		Super X12DGO-6 Motherboard

    4U Chassis
    Add-on Card / Module AOM-438G-AIOM-P 1 AIOM adapter card for CSE-438G,RoHS
    Add-on Card / Module AOM-438G-FAN-P 1 Fan adaptor for SC1018G,RoHS
    Add-on Card / Module AOM-DGO-IO-P 1 I/O riser card for 4U 8 SXM4 GPU system 420GP-TEVRT,RoHS
    Add-on Card / Module AOM-SXM4-IO-P 1 PCIE Gen4 switch board for 4U 8 SXM4 GPU system,RoHS
    Backplane BPN-GPU-438G 1 Midplane for 4U AMD/Intel Delta GPU system,RoHS
    Backplane BPN-NVME4-F418-B6S6 1 1U 6-Slot SFF Backplane Supports 6xSAS3/SATA3/NVMe4 Storage Devices. The Backplane is for X12 FatTwin Product Line.,HF,RoHS
    Cable 1 CBL-GNZ2-12105F-85 1 GENZ 2C x16 (STR) to 2x Slimline x4 (STR),FFC,FOLD,105.
    Cable 2 CBL-GNZ2-1281F-85 1 GENZ 2C x16 (STR),Slimline x8 (STR) to 2x 2x Slimline x4
    Cable 3 CBL-PWCD-0900 4 PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17
    Cable 4 CBL-PWEX-1114-30 1 Microfit,2x4, PH3.0 to Microfit,2x4, PH3.0,30CM,9A/pin,
    Cable 5 CBL-PWEX-1117-40 2 MiniFit,2x2,PH4.2,F to MiniFit,2x2,PH4.2,F,40CM,8A/pin,
    Cable 6 CBL-SAST-1238FLP-85 1 SlimlineLP x8 (STR) to SlimlineLP x8 (STR),FFC,BNDL,38C
    Cable 7 CBL-SAST-1242-100 2 Slimline x4 (STR) to MiniSAS HD x4 (STR),INT,43CM,100 O
    Cable 8 CBL-SAST-1258FLP-85 1 SlimlineLP x8 (STR) to SlimlineLP x8 (STR),FFC,BNDL,58C
    FAN 1 FAN-0196L4-1 4 92x92x76 mm, 13.3K-12.2K RPM Counter-rotating Fan, w/ SMC Fan Board
    Power Supply PWS-2K21G-2R 4 AC-DC 2200W at high and 1200W at low line multi-output
    Riser Card RSC-G-66G4 1 1U LHS GPU Riser card with two PCI-E 4.0 x16 slots,RoHS
    Heatsink / Retention SNK-P0077V 2 X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
    *Cable 9 CBL-OTHR-0794 1 VGA,DB 15pin,F to 2x8,PH2.54,10CM,30 AWG,RoHS
    Notes:
    1. Parts with * are inside the chassis
    2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
