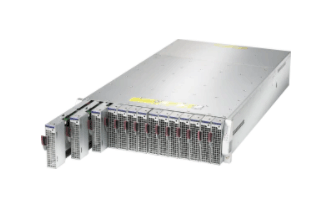

    MBS-314E-6219M

    Print
    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • Key Applications
      - Cyber Security
      - Cloud Service - Dedicated Hosting
      - Cloud Service - Dynamic Front End Web
      - Visual & Audio - Media Delivery Transcoding

      Key Features
    • 1. 392 UP nodes per 42U Rack
    • 2. 28 UP nodes in 3U
    • 3. Per blade supports Intel® Xeon®
      processor E-2100, E-2200 series
    • 4. Per blade support up to 64GB DDR4 memory
    • 5. Per blade support up to 2.5" NVMe drives
    • 6. Per System supports 10GbE LAN and
      two switch modules for redundancy
    • 7. Per system supports Central Management Module
    • 8. Front-loading nodes for easy and servicing
    • 9. N+1 or N+N power redundancy with
      Titanium level efficiency (96%)
    • 10. Vapor chamber heatsinks
    • 11. Out of Band (OOB)
      software management licenses
    Specifications
    Product SKUs
    MicroBlade Server System
    • MBS-314E-6219M
    MicroBlade Sled
    Motherboard

    Switch Module
    MBM-XEM-002
    • Broadcom BCM56846 10GbE Low Latency Switch
    • 2x 40G and 4x10G uplinks
    • 56x 10/1Gbps downlinks (MicroBlade)
    • 1 Console port, 1 USB port
    Details
    • See Details

    Central Management Module (CMM)
    MBM-CMM-FIO
    • CMM with Front IO support
    Details
      See Details

    Processor (per node)
    CPU
    • Dual Socket H4 (LGA 1151),

      CPU TDP support up to 95W
    • Support Intel® Xeon® processor E-2100 / E-2200 series
    Cores
    • Up to 8 cores, 12 threads

    System Memory (per node)
    Memory Capacity
    • 2 DDR4 DIMM sockets
    • Supports up to 64GB DDR4 ECC VLP UDIMM
    Memory Type
    • 2666MHz ECC DDR4 UDIMM
    DIMM Sizes
    • 32GB
    Memory Voltage
    • 1.2 V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors

        (using ECC memory)

    On-Board Devices (per node)
    Chipset
    • Intel® C246 chipset
    Network Controllers
    • Dual 10GbE LAN ports via BCM57414
    IPMI
    • Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)

    System BIOS
    BIOS Type
    • 128Mb Flash EEPROM
    BIOS Features
    • Plug and Play (PnP)
    • APM 1.2
    • SMBIOS 2.7.1
    Dimensions
    Height
    • 1.2" (30.48mm)
    Width
    • 4.94" (125.48mm)
    Depth
    • 23.2" (589.28mm)
    Weight
    • Gross Weight: 120.3 lbs (54.57 kg)
    Available Color
    • Silver Grey

    Front Panel
    LEDs
    • Power LED
    • Fault LED
    • Network Activity LED
    • UID / KVM LED

    Drive Bays (per node)
    Internal
    • 2x 2.5" U.2 NVMe (7mm) drives
    Others
    • 1x SATA DOM

    Input / Output
    TPM
    • 1 TPM Header

    Operating Environment / Compliance
    Environmental Spec.
    • Operating Temperature:

         10°C to 38°C (50°F to 100.4°F)
    • Non-operating Temperature:

         -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:

         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:

         5% to 95% (non-condensing)

    Electromagnetic Compatibility (EMC)
    United States / Canada
    • FCC- Emissions (US) Verification
    Europe
    • EN55022 - Emissions
    • EN55024 - Immunity
    • EN61000-3-2 - Harmonics
    • EN61000-3-3 - Voltage Flicker
    • CE - EMC Directive 89/336/EEC
    Parts List
    Parts List - (Items Included)
      Part Number Qty Description
    Server Enclosure MBE-314E-422 1 [NR]Enterprise MicroBlade3U w/ 4x 2200W PSU
    MicroBlade Sled MBI-6219M-2N 14 Dual E-2100 per blade support up to 4x2.5 NVMe
    Switch MBM-XEM-002 2 Blade 10G Ethernet Broadcom switch with 2xQSFP and 4xSFP+
    CMM MBM-CMM-FIO 1 MicroBlade Chassis Management Module with Front IO support
    Heatsink / Retention SNK-P1040V 28 Low Profile CPU Heat Sink for MicroBlade Server
    Software SFT-OOB-LIC 28 OOB Management Package (per node license)
    Optional Parts List (per node)
      Part Number Qty Description
    TPM security module

    (optional, not included)    		 AOM-TPM-9670V
    AOM-TPM-9671V    		 1 TPM module (Vertical) TPM 2.0
    TPM module (Vertical) TPM 1.2.
    SATA DOM MEM-IDSAHM3A-016G

    MEM-IDSAHM3A-032G

    MEM-IDSAHM3A-064G

    MEM-IDSAHM3A-128G    		 1 SATA3 DOM SH 3ME3 V2 16GB MLC w/ Pin8 VCC Horizontal

    SATA3 DOM SH 3ME3 V2 32GB MLC w/ Pin8 VCC Horizontal

    SATA3 DOM SH 3ME3 V2 64GB MLC w/ Pin8 VCC Horizontal

    SATA3 DOM SH 3ME3 V2 128GB MLC w/ Pin8 VCC Horizontal
