    SBA-4119S-T2N

    Print

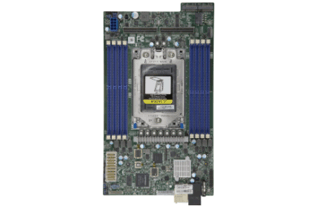

    Intergrated Board
    BH12SSi-M25
    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • 1.100 CPUs per 42U Rack
    • 2.Single AMD EPYC™ 7002 Series Processor
    • 3.TDP up to 280W
    • 4.8 DIMMs; up to 2TB 3DS ECC DDR4-3200MHz LRDIMM
    • 5.2 Hot-plug 2.5" NVMe/SATA3 drive bays;
      2 PCI-E x4 M.2
    • 6.Dual 25G onboard
    • 7.IPMI 2.0, KVM over IP, Virtual Media over LAN
    • 8.Graphics: Aspeed AST2500 BMC
    Specifications
    Product SKUs
    SBA-4119S-T2N
    • Single-Socket Blade SBA-4119S-T2N
    Motherboard
    Super BH12SSi-M25
    Processor/Cache
    CPU
    • Single AMD EPYC™ 7002 Series Processor
    • Socket SP3
    • Support CPU TDP up to 280W
    Cores
    • Up to 64 Cores
    System Memory
    Memory Capacity
    • 8 DIMM slots
    • Up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
    Memory Type
    • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
    On-Board Devices
    Chipset
    • System on Chip
    Network Controllers
    • Dual 25G onboard via Mellanox CX4
    IPMI
    • Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
    Graphics
    • Aspeed AST2500 BMC
    System BIOS
    BIOS Type
    • 128Mb SPI Flash EEPROM with AMI® BIOS
    BIOS Features
    • Plug and Play (PnP)
    • PCI 2.2
    • ACPI up to 3.0
    • USB Keyboard support
    Dimensions
    Height
    • 6.5"
    Width
    • 1.75"
    Depth
    • 23.5"
    Weight
    • 9.5 lbs (4.3 kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    LEDs
    • Power LED
    • UID / KVM LED
    • Network Activity LED
    • Fault LED
    Drive Bays
    Hot-swap
    • 2 Hot-Plug 2.5" NVMe/SATA3 drive bays
    M.2
    • 2 PCI-E x4 M.2
    Input / Output
    TPM
    • 1 TPM Header
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
      10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
      -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
      8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
      5% to 95% (non-condensing)

    Parts List
    Parts List - (Items Included)
    Part Number Qty Description
    Motherboard / Chassis MBD-BH12SSi-M25
    MCP-680-41006-0N     		1
    1     		Super BH12SSi-M25 Motherboard
    4U 10 SuperBlade Processor Blade chassis
    Add-on Card / Module AOM-BPNIO-SNEA-P 1 AOM card for 4U SuperBlade, 2xSATA/NVMe, RoHS,RoHS
    Add-on Card / Module AOM-BPNIO-FPE-P 1 AOM-BPNIO-FPE, Front Control I/O module for SuperBlade,RoHS
    Hard Drive Tray MCP-220-00170-0B 2 Black hot swap tool-less NVMe 2.5" HDD tray with orange button for SuperBlade use
    Air Shroud MCP-310-41006-0N 1 4U 10 SuperBlade AMD Tray Air Shroud - HDD
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Optional Parts List
    Part Number Qty Description
    Heat Sink SNK-P1043V 1 1U standard AMD vapor chamber Heat Sink
    TPM security module
    (optional, not included)    		 AOM-TPM-9665V
    AOM-TPM-9655V     		1 TPM module (Vertical) TPM 2.0
    TPM module (Vertical) TPM 1.2.
    Networking AOC-IBH-X4ES-O
    AOC-B25G-X4D
    AOC-IBH-X6HS-B     		1 Mezzanine card, InfiniBand EDR Single Port based on ConnectX-4
    2-port 25GbE Mezzanine Card (Mellanox ConnectX-4 Lx EN)
    SuperBlade InfiniBand HDR one port Mezzanine card,Mellanox ConnectX-6,RoHS
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
