    AS -F2014S-RNTR

    Print

    Key Features

    • - Hyperscale / Hyperconverged
      - HPC and Big Data
      - Data Center Enterprise Applications
      - Scale Out Storage
      - Telco Data Center
      - Virtualization Server

    • 4 Hot-pluggable System Nodes in a 4U form factor.
      Each node supports:
    • 1. Single AMD EPYC™ 7002 Series Processor
    • 2. Up to 2TB ECC 3DS LRDIMM,
      up to DDR4-3200MHz; 8 DIMM slots
    • 3. Expansion slots: 1 PCI-E 4.0 x16 (LP Riser)
      1 PCI-E 4.0 x8 (for Internal RAID AOC)
    • 4. AIOM Network card,
      1 dedicated IPMI LAN port
    • 5. 1 VGA, 2 USB 3.0 ports
    • 6. 8 Hot-swap 3.5" drive bays:
      Front 6 SATA (Optional NVMe support),
      Rear 2 SATA/NVMe
      M.2 Interface: 4 SATA/PCI-E 4.0 x4
      M.2 Form Factor: 2242, 2260, 2280, 22110
      M.2 Key: M-Key
    • 7. 2x 8cm 13.5K RPM middle fans
    • 8. 2200W Redundant Power Supplies
      Titanium Level (96%)
      (Full redundancy based on
      configuration and application load)
    Specifications
    Product SKUs
    AS -F2014S-RNTR
    • A+ Server F2014S-RNTR (Black)
    Motherboard

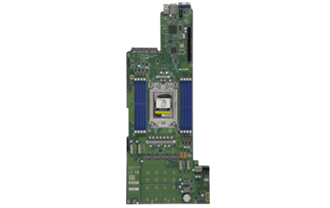

    Super H12SSFR-AN6
    Processor/Chipset (per Node)
    CPU
    • Single AMD EPYC™ 7002 Series Processor
    • Socket SP3
    • Supports CPU TDP / cTDP up to 280W*
    Cores
    • Up to 64 Cores
    Note * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
    System Memory (per Node)
    Memory Capacity
    • 8 DIMM slots
    • Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
    • 8-channel memory bus
    Memory Type
    • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
    Memory Sizes
    • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • System on Chip
    SATA
    • SATA3 (6Gbps)
    Network Controllers
    • Flexible networking via AIOM (not included, must add 1 per node)
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • ASPEED AST2600 BMC
    Input / Output (per node)
    LAN
    • Flexible networking via AIOM
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (rear)
    VGA
    • 1 VGA port
    Others
    • 1 COM port
    • 1 TPM 2.0 header
    System BIOS
    BIOS Type
    • 256Mb SPI Flash EEPROM with AMI BIOS
    Management
    Software
    Power Configurations
    • ACPI Power Management
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 4U Rackmount
    Model
    • CSE-F424AS3-R2K20BP
    Dimensions and Weight
    Width
    • 17.63" (448mm)
    Height
    • 6.96" (177mm)
    Depth
    • 29" (737mm)
    Package
    • 28.3" (W) x 15.0" (H) x 42.4" (D)
    Weight
    • Net Weight: 150 lbs (68.04 kg)
    • Gross Weight: 200 lbs (90.71 kg)
    Available Colors
    • Black
    Front Panel (per node)
    Buttons
    • Power On/Off button
    • UID button
    LEDs
    • Power status LED
    • Hard drive activity LED
    • Network activity LEDs
    • Information LED (UID, Fan failure, Overheat)
    Expansion Slots (per node)
    PCI-Express
    • 1 PCI-E 4.0 x16 (Low-profile riser)
    • 1 PCI-E 4.0 x8 (Internal RAID AOC)
    Drive Bays (per node)
    Hot-swap
    • 8 Hot-swap 3.5" drive bays: Front 6 SATA (optional NVMe support), Rear 2 SATA/NVMe
    M.2
    • M.2 Interface: 4 SATA/PCI-E 4.0 x4
    • M.2 Form Factor: 2242, 2260, 2280, 22110
    • M.2 Key: M-Key
    Backplane
    1 SATA/NVMe backplane
    System Cooling (per node)
    Fans
    • 2x 8cm 13.5K RPM middle fans

    Power Supply
    2200W Redundant Power Supplies with PMBus
    Total Output Power and Input
    • 1200W with Input 100-127Vac
    • 1800W with Input 200-220Vac
    • 1980W with Input 220-230Vac
    • 2090W with Input 230-240Vac
    • 2200W with Input 220-240Vac (for UL/cUL use only)
    • 2090W with Input 230-240Vdc (for CCC only)
    AC Input Frequency
    • 50-60Hz
    Dimension
    (W x H x L)
    • 76 x 40 x 336 mm
    +12V
    • Max: 100A / Min: 0A (100-127Vac)
    • Max: 150A / Min: 0A (200-220Vac)
    • Max: 165A / Min: 0A (220-230Vac)
    • Max: 174.17A / Min: 0A (230-240Vac)
    • Max: 183.3A / Min: 0A (220-240Vac)
    5VSB
    • Max: 1A / Min: 0A
    Output Type
    • Backplanes (gold finger)
    Certification Titanium Level 96%   Titanium Level
      [ Test Report ]
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
      10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
      -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
      8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
      5% to 95% (non-condensing)

    Parts List
    Parts List - (Items Included)

    Part Number
    Qty
    Description
    Motherboard / Chassis MBD-H12SSFR-AN6
    CSE-F424AS3-R2K20BP
    4
    1
    Super H12SSFR-AN6 Motherboard
    4U Chassis
    Backplane BPN-ADP-2UPWR 4 Backplane adapter card for 2UPWR,RoHS/REACH
    Backplane BPN-SAS3-F424-A2N2A 4 2-Port Hybrid Backplane support 2 x SAS3/SATA3/NVMe Storage Devices
    Backplane BPN-SAS3-F424-A6N6 4 6-Port Hybrid Backplane Supports 6x3.5
    Cable 1 CBL-0486L 12 2x2 to 2x2 15cm Power Cable HF
    Cable 2 CBL-OTHR-1211-28 4 2x10pin (PH 1) to 2x10pin (PH 1),11CM,28AWG,1A/pin,RoHS
    Cable 3 CBL-PWCD-0900 4 PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17
    Cable 4 CBL-SAST-1228-100 4 Slimline x4(STR) to 2x MiniSAS HD x4(STR),55/15CM,100OH
    Cable 5 CBL-SAST-1239F-85 4 Slimline x8 (RE) to 2x Oculink x4 (STR),FFC,28/28CM,85
    Cable 6 CBL-SAST-1247-100 4 Slimline x4 (LE) to MiniSAS HD x4 (STR),47CM,100 OHm,Ro
    Heatsink / Retention SNK-P0063PB 4 Proprietary 2U Passive CPU Heat Sink for AMD SP3 Processors
    Power Supply PWS-2K20A-1R 4 1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Optional Parts List
    Part Number Qty Description
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
