    AS -2123BT-HTR

    Print

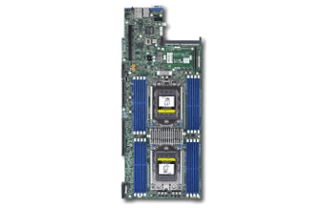

    Intergrated Board
    H11DST-B
    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • - Compute Intensive Application
      - HPC, Data Center, Enterprise Server
      - Hyperscale / Hyperconverged
    • Four "hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
    • 1.Dual AMD EPYC™ 7001/7002* Series Processors (*AMD EPYC 7002 series drop-in support requires board revision 2.x)
    • 2.2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs (7001 Processors)
      4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs (Board revision 2.x required + 7002 Processors)
    • 3.2 PCI-E 3.0 x16 (LP) slot; 1 SIOM card support (flexible networking)
      Note: must bundle with Network card
    • 4.Integrated IPMI 2.0 + KVM with dedicated LAN
      • Software Out of Band License
       key (SFT-OOB-LIC) included
       for OOB BIOS management
    • 5.6 Hot-swap 2.5" SATA3 drive bays
      M.2 Interface: 1 SATA/PCI-E 3.0 x4
      M.2 Form Factor: 2280, 22110
      M.2 Key: M-key
    • 6.Video via Aspeed AST2500 BMC
    • 7.2200W Redundant Power Supplies
      Titanium Level (96%)
      (Full redundancy based on configuration and application load)
    Specifications
    Product SKUs
    AS -2123BT-HTR
    • A+ Server 2123BT-HTR (Black)
    Motherboard (per Node)
    Super H11DST-B
    Processor/Chipset (per Node)
    CPU
    • Dual AMD EPYC™ 7001/7002* series Processors
      (* Board revision 2.x required)
    • Socket SP3
    • Supports CPU TDP 200W / cTDP up to 200W**
    Cores
    • Up to 32 Cores (Board revision 1.x + 7001 Processors)
    • Up to 64 Cores (Board revision 2.x + 7002 Processors)
    Note ** Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
    System Memory (per Node)
    Memory Capacity
    • 16 DIMM slots
    • Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors)
    • Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors)
    • 8-channel memory bus
    • For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
    Memory Type
    • DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs (7001 Processors)
    • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors)
    Memory Sizes
    • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB*
      (* Board revision 2.x required + 7002 processors)
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices (per Node)
    Chipset
    • System on Chip
    Storage
    • SATA3 (6Gbps) via AMD EPYC
    Network
    • 1 PCI-E 3.0 x16 SIOM LAN Networking Slot for flexible networking, see SIOM LAN options support matrix (Must bundle with at least one SIOM network card)
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Video
    • ASPEED AST2500 BMC
    Input / Output (per Node)
    LAN
    • Provided via SIOM (optional)
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (rear)
    Video
    • 1 VGA port
    DOM
    • 1 SuperDOM (Disk on Module) port
    Others
    • 1 COM port (header)
    • 1 TPM 2.0 header
    System BIOS (per Node)
    BIOS Type
    • AMI 128Mb SPI Flash ROM
    Management (per Node)
    Software
    Power Configurations
    • ACPI / APM Power Management
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-217BHQ+-R2K22BP2
    Dimensions and Weight
    Width
    • 17.68" (449mm)
    Height
    • 3.47" (88mm)
    Depth
    • 28.75" (730mm)
    Package
    • 24.33" (618mm) H x 9.57" (243mm) W x 45.08" (1145mm) D
    Weight
    • Gross Weight: 85 lbs (38.6 kg)
    • Net Weight: 54.5 lbs (24.7 kg)
    Available Colors
    • Black
    Front Panel (per Node)
    Buttons
    • Power On/Off button
    • UID button
    LEDs
    • Power status LED
    • HDD activity LED
    • Network activity LEDs
    • Universal Information (UID) LED
    Expansion Slots (per Node)
    PCI-Express
    • 2 PCI-E 3.0 (x16) Low-profile slots
    • 1 SIOM card support
      (must bundle with network card)
    M.2
    • Interface: 1 SATA/PCI-E 3.0 x4
    • Form Factor: 2280, 22110
    • Key: M-key
    Drive Bays (per Node)
    Hot-swap
    • 6 Hot-swap 2.5" SATA3 drive bays
    System Cooling
    Fans
    • 4 Heavy duty 8cm PWM fans
    Power Supply
    2200W Redundant Power Supplies with PMBus
    Total Output Power
    • 1200W/1800W/1980W/2090/2200W
    Dimension
    (W x H x L)
    • 45 x 40 x 480 mm
    Input
    • 1200W: 100-127Vac / 50-60Hz
    • 1800W: 200-220Vac / 50-60Hz
    • 1980W: 220-230Vac / 50-60Hz
    • 2090W: 230-240Vac / 50-60Hz
    • 2090W: 180-220Vac (for UL/cUL only)
    • 2200W: 220-240Vac (for UL/cUL only)
    • 2090W: 230-240Vdc (for CCC only)
    +12V
    • Max: 100A / Min: 0A (100-127Vac)
    • Max: 150A / Min: 0A (200-220Vac)
    • Max: 165A / Min: 0A (220-230Vac)
    • Max: 174.17A / Min: 0A (230-240Vac)
    • Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only)
    • Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only)
    • Max: 174.17A / Min: 0A (230-240Vdc, CCC only)
    12Vsb
    • Max: 2.1A / Min: 0A
    Output Type
    • Gold Finger
    Certification Titanium Level 96% Titanium Level
    [ Test Report ]
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
      10°C ~ 30°C (50°F ~ 86°F)
      * Support for operating above 30°C is available in certain system configurations. Contact your Supermicro sales rep or Technical Support for more details.
    • Non-operating Temperature:
      -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
      8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
      5% to 95% (non-condensing)

    Parts List
    Parts List - (Items Included)

    		Part Number
    		 Qty
    		 Description
    Motherboard / Chassis MBD-H11DST-B
    CSE-217BHQ+-R2K22BP2     		4
    1     		Super H11DST-B Motherboard
    2U Chassis
    Backplane BPN-ADP-6SATA3-1UB 4 Support 6 SATA HDD adaptor card for Big Twin
    Backplane BPN-SAS3-217BHQ 1 2U 4-Node 24-Port Backplane Supports 6x2.5\" SATA3/SAS3 SSD/HDD per Node
    Drive Tray(s) MCP-220-00141-0B-BULK 24 Black Gen3 hot-swap 2.5 inch HDD tray with lock improved EMI
    Parts MCP-240-21722-0N 1 217B/827B BigTwin type II (Edge card) BPN retention bkt assy
    Riser Card RSC-P-6 4 RSC-P-6 (1U LHS TwinPro RSC with 1 PCI-Ex16),RoHS
    Riser Card RSC-R1UTP-E16R 4 1U RHS TwinPro Riser card with one PCI-E x16 slot
    Software SFT-OOB-LIC 4 License key for enabling OOB BIOS management
    Heatsink / Retention SNK-P0062PM 4 1U Passive Front CPU Heat Sink w/ a 30-mm Wide Middle Air Channel for AMD H11 2U4N Big Twin Series Servers
    Heatsink / Retention SNK-P0062PW 4 1U Proprietary 93-mm Wide Passive Rear CPU Heat Sink for AMD H11 2U4N Big Twin Series Servers
    Power Supply PWS-2K22A-1R 2 1U 2200W Redundant Power Supply Titanium, 45(W) X 40(H) X 48
    FAN FAN-0183L4 4 80x80x38 mm, 16.5K RPM, Non-hot-swappable Middle Cooling Fan for X11 Twin Pro, X10 and X11 Big Twin Series Servers
    Optional Parts List
    Part Number Qty Description
    Global Services & Support OS4HR3/2/1
    OSNBD3/2/1     		-
    -     		3/2/1-year onsite 24x7x4 service
    3/2/1-year onsite NBD service
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
    TPM security module AOM-TPM-9655V - TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF;
    AOM-TPM-9655V-S - TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF; Provisioned for TXT
    AOM-TPM-9665V - TPM 2.0 module with Infineon 9665, RoHS/REACH,PBF;
    AOM-TPM-9665V-S - TPM 2.0 module with Infineon 9665, RoHS/REACH,PBF; Provisioned for TXT
    SIOM - - Supermicro SIOM solutions [Details]
