    AS -4124GS-TNR

    Print

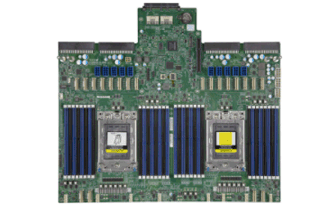

    Intergrated Board
    H12DSG-O-CPU
    Views Angled ViewsTop ViewsFront ViewsRear Views
    Manual

    Key Features

    • - AI / Deep Learning

    • 1.Supports up to 8 double-width GPUs
      Direct connect for maximum performance
    • 2.Dual AMD EPYC™ 7002 Series Processors
    • 3.8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
    • 4.9 PCI-E 4.0 x16
      (Option: 10 PCI-E 4.0 x16 slots without NVMe devices)
    • 5.Up to 24 Hot-swap 2.5" drive bays.
      With included hardware:
       • 2x 2.5" SATA in RAID 1 via onboard
        Marvell 9230
       • 4x 2.5" NVMe (depends on PCI-E quantity based on
    • 4)
      RAID controller option available for 24 HDDs
    • 6.2 GbE LAN ports (rear)
    • 7.8 Hot-swap 11.5K RPM cooling fans
    • 8.2000W (2+2) Redundant Power Supplies
      Titanium Level (96%+)
      (full redundancy based on configuration and application load)
    Specifications
    Product SKUs
    AS -4124GS-TNR
    • A+ Server 4124GS-TNR (Black)
    Motherboard
    Super H12DSG-O-CPU
    Processor/Cache
    CPU
    • Dual AMD EPYC™ 7002 Series Processors*
    • Socket SP3
    • Supports CPU TDP up to 280W**
    Cores
    • Up to 128 Cores (64 per CPU)
    Note * Supports 2 CPUs only – single socket not supported
    ** Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
    System Memory
    Memory Capacity
    • 32 DIMM slots*
    • Up to 8TB 3DS ECC DDR4-3200MH RDIMM/LRDIMM
    Memory Type
    • 3200MHz ECC DDR4 RDIMM/LRDIMM
    Note * Minimum 16 DIMMs required
    On-Board Devices
    Chipset
    • System on Chip (SoC)
    SATA
    • SATA3 (6Gbps)
    Network Controllers
    • Provided via riser card
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • ASPEED AST2500 BMC
    Input / Output
    SATA
    • 24 SATA3 (6Gbps) ports
    LAN
    • 2 RJ45 GbE LAN ports (rear)
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (rear)
    Video
    • 1 VGA Connector
    COM Port
    • 1 COM port (header)
    System BIOS
    BIOS Type
    • AMI 32Mb SPI Flash ROM
    Management
    Software
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 4U Rackmountable
    • Rackmount Kit (MCP-290-00057-0N)
    Model
    • CSE-418GTS-R4016BP
    Dimensions
    Height
    • 7.0" (178mm)
    Width
    • 17.2" (437mm)
    Depth
    • 29" (737mm)
    Weight
    • Net Weight: 65.5 lbs (29.7 kg)
    • Gross Weight: 100 lbs (45.3 kg)
    Available Colors
    • Black
    Drive Bays / Storage
    Hot-swap
    • Up to 24x 2.5" SAS/SATA drive bays
    • 2x 2.5" SATA supported natively*
    • 4x 2.5" NVMe supported natively
    • RAID controller option available for 24 HDDs
    Note * 2x drives in RAID 1 only via onboard Marvell 9230
    Expansion Slots
    PCI-Express
    • 9 PCI-E 4.0 x16 (FHFL) slots
    • or 10 PCI-E 4.0 x16 (FHFL) slots without NVMe devices
    System Cooling
    Fans
    • 8x 11.5K RPM heavy duty fans
    Power Supply
    2000W Redundant Power Supplies with PMBus
    Total Output Power
    • 1000W: 100 – 127Vac
    • 1800W: 200 – 220Vac
    • 1980W: 220 – 230Vac
    • 2000W: 230 – 240Vac
    • 2000W: 220 – 240Vac (UL only)
    Dimension
    (W x H x L)
    • 73.5 x 40 x 203 mm
    Input
    • 100-127Vac / 12-9A / 50-60Hz
    • 200-220Vac / 10-9.8A / 50-60Hz
    • 220-230Vac / 10-9.8A / 50-60Hz
    • 230-240Vac / 10-9.8A / 50-60Hz
    • 220-240Vac / 11-10A / 50-60Hz (UL only)
    +12V
    • Max: 83A / Min: 0A (100-127Vac)
    • Max: 150A / Min: 0A (200-220Vac)
    • Max: 165A / Min: 0A (220-230Vac)
    • Max: 166A / Min: 0A (230-240Vac)
    • Max: 166A / Min: 0A (220-240Vac) (UL only)
    12Vsb
    • Max: 3.5A / Min: 0A
    Output Type
    • 25 Pairs Gold Finger Connector
    Certification Titanium Level 96% Titanium Level
    [ Test Report ]
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
      10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
      -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
      8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
      5% to 95% (non-condensing)

    Parts List
    Parts List - (Items Included)

    		Part Number
    		 Qty
    		 Description
    Motherboard / Chassis MBD-H12DSG-O-CPU
    CSE-418GTS-R4016BP     		1
    1     		Super H12DSG-O-CPU Motherboard
    CSE-418GTS-R4016BP Chassis
    Add-on Card / Module AOM-PCIE4-418N-1-P 1 GPU board for 4U PCIE GPU system,HF
    Add-on Card / Module AOM-PIO-I2G 1 AOM-PIO-I2G
    Backplane BPN-SAS3-216A-N4 1 24-port 2U SAS3 12Gbps hybrid backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices
    Cable 1 CBL-0010L 1 9 PIN SERIAL PORT DTK CABLE, LF
    Cable 2 CBL-0234L 2 Y CABLE FOR 4-PIN HDD
    Cable 3 CBL-0449L 2 HDD power extension for X8OBN, special 8pin to 4 HDD
    Cable 4 CBL-PWEX-1028 8 GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C
    Cable 5 CBL-PWEX-1080 1 Mini-Fit 2x2 F, to Mini-Fit 2x2 F, 10A/pin,7cm,16AWG,RoH
    Cable 6 CBL-SAST-0826 2 SLIMLINE SAS x8 (LE) to 2x MINI SAS HD,INT, 70CM,32AWG,
    Cable 7 CBL-SAST-122EF-85 8 Slimline x8 (STR) to Slimline x8 (STR),FFC,INT,20/25CM,
    Cable 8 CBL-SAST-1267-85 2 Slimline x8 (STR) to Slimline x8 (STR),INT,67CM,85 OHM,
    Cable 9 CBL-SAST-1295-100 1 Slimline x4 (STR) to MiniSAS HD x4 (STR),INT,95CM,RoHS
    Heatsink / Retention SNK-P0064AP4 2 4U Active CPU Heat Sink for AMD Socket SP3 Platform
    * Power Supply PWS-2K08A-1R 4 1U 2000W 90-264VAC/47-63Hz, and wide DC input 180Vdc~300Vdc,
    * Cable 10 CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
    * Cable 11 CBL-0174L 4 14AWG USA POWER CORD 6FT PB FREE
    * Cable 12 CBL-OTHR-0794 1 VGA cable to internal 2x8 header for IO card
    * Cable 13 CBL-PWEX-1069 8 PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,30CM,22AWG,5A/pin,RoHS
    * FAN 1 FAN-0199L4 8 92x92x38 mm, 11.5K RPM Cooling fan w/ 5A Fan Connector,RoHS
    * Front Panel FPB-TMP-002 1 Thermal Sensor board with 40cm I2C cable
    * Drive Tray(s) MCP-220-00047-0B 24 Black gen 3rd hot-swap 2.5inch HDD tray
    * Drive Tray(s) MCP-220-21602-0B 3 Black 2.5"; HDD dummy cover for SC213,216 (8 HDD Hex hole)
    * Rear Window MCP-240-84802-0N 1 21 slot rear window for SC418X
    * Parts MCP-260-41802-0N 1 IO shield for X12DPG-OA in SC418G
    * Front Panel MCP-280-82601-0N 1 Front control board adapter (TB826) for SC216,826,936,846
    * Rail Set MCP-290-00057-0N 1 set Rail set, quick/quick, default for 4U 17.2"; W
    * Rail Set MCP-290-00060-0N 1 Threaded rail adapter default for round hole rack
    * Rail Set MCP-290-00115-0N 1 Inner rail, quick-release type
    * Rail Set MCP-290-00117-0N 1 Outer rail, quick-release type
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Notes:
    1. Parts with * are inside the chassis
    2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
    Optional Parts List
    Part Number Qty Description
    0.5U LID MCP-230-41803-0N 1 Top cover for GTX card support
    1U LID MCP-230-41806-0N 1 Top cover for NVLINK BRIDGE support
    2.5" NVMe Drive Trays MCP-220-00121-0B
    MCP-220-00167-0B
          		1 per drive Black Gen-3 2.5" NVMe drive tray. Orange tab with lock
    Black Gen-3 2.5" NVMe drive tray. Orange tab with lock, Tool-less
    GPU Cables CBL-PWEX-0665 1 per GPU GPU power cable (for NVIDIA P40, M40, M60, AMD MI25). 8pin FEMALE BLK to 8pin FEMALE WHT. 30cm 18AWG.
    CBL-PWEX-1017 1 per GPU GPU power cable (for NVIDIA QUADRO, GTX). 8pin FEMALE CPU BLUE to 2x 6pin FEMALE / 2x 1pin FEMALE. 20cm 16AWG/20AWG.
    CBL-PWEX-10401 1 per GPU GPU power cable (for NVIDIA QUADRO, GTX). 8pin MALE CPU to 2x 6pin FEMALE / 2x 1pin FEMALE. 5cm 20AWG/16AWG.
    Note: 1. Use with CBL-PWEX-1028
    Storage Controller Cards and Cables AOC-S3008L-L8I2 1 Broadcom 3008 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,1E,10
    AOC-S3008L-L8E2 1 Broadcom 3008 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, HBA only
    AOC-S3108L-H8IR2 1 Broadcom 3108 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,5,6,10,50,60
    AOC-S3108L-H8IR-16DD2 1 Broadcom 3108 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,5,6,10,50,60. Maximum 16 HDD support with expander backplane
    CBL-SAST-0531 2 n/a
    BKT-BBU-BRACKET-05 1 Remote Mounting Board for Supercap. Installs in PCI-E slot.
    Note: 2. Requires x2 CBL-SAST-0531
    Global Services & Support OS4HR3/2/1
    OSNBD3/2/1     		-
    -     		3/2/1-year onsite 24x7x4 service
    3/2/1-year onsite NBD service
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
