    AS -2013S-C0R

    Print

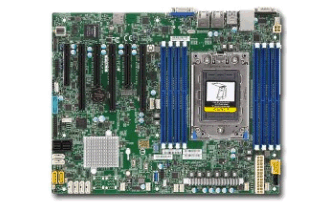

    Intergrated Board
    H11SSL-C
    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • - Cloud and Virtualization needs
      •- Connectivity/Storage
      - Computer Nodes
      - Database Processing & Storage
      •- High End Enterprise Server
      •- Hosting & Application delivery

    • 1. Single AMD EPYC™ 7001/7002 Series Processor (AMD EPYC 7002 series drop-in support requires board revision 2.x)
    • 2. 1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs
      2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs (Board revision 2.x required)
    • 3. Expansion slots:
      3 PCI-E 3.0 x16 (low profile);
      3 PCI-E 3.0 x8 (low profile)
      M.2 Interface: PCI-E 3.0 x4 (NVMe based)
      M.2 Form Factor: 2280, 22110
      M.2 Key: Onboard M-key
      Number of M.2: Single
    • 4. Integrated IPMI 2.0 + KVM with dedicated LAN
      • Software Out of Band License
       key (SFT-OOB-LIC) included
       for OOB BIOS management
    • 5. 2x 1GbE LAN ports via Intel® I210
    • 6. 8 hot-swap 3.5" SAS3/SATA3 Drive Bays (on-board Broadcom 3008 IR mode),
      1 M.2 NVMe SSD slot Supported
    • 7. 740W Redundant Platinum Level Power Supplies
      (Full redundancy based on configuration and application load)
    Specifications
    Product SKUs
    AS -2013S-C0R
    • A+ Server 2013S-C0R
    Motherboard
    H11SSL-C
    Processor/Chipset
    CPU
    • Single AMD EPYC™ 7001/7002* series Processor (*Board revision 2.x required)
    • Socket SP3
    • Supports CPU TDP 225W / cTDP up to 240W*
    Cores
    • Up to 32 Cores (Board revision 1.x + 7001 Processors)
    • Up to 64 Cores (Board revision 2.x + 7002 Processors)
    Chipset
    • System on Chip (SoC)
    System Memory
    Memory Capacity
    • 8 DIMM slots
    • Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors)
    • Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors)
    • 8-channel memory bus
    Memory Type
    • DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
    • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors)
    DIMM Sizes
    • 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB*
      (* Board revision 2.x required + 7002 Processors)
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    SATA/SAS
    • SATA3 (6 Gbps)
    • Broadcom 3008 SAS3 (12 Gbps) controller
    • IR mode; RAID 0, 1, 10
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    • ASPEED AST2500 BMC
    Network Controllers
    • Intel® I210 Controller
    VGA
    • ASPEED AST2500 BMC
    Expansion Slots
    PCI Express
    • 3 PCI-E 3.0 x16 (low profile)
    • 3 PCI-E 3.0 x8 (low profile)
    M.2
    • Interface: PCI-E 3.0 x4 (NVMe based)
    • Form Factor: 2280, 22110
    • Key: Onboard M-key
    • Number of M.2: Single
    Input / Output
    SATA/SAS
    • 8 SATA3 (6 Gbps) /
    • 8 SAS3 ports via Broadcom 3008
    LAN
    • 2x 1GbE LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 3 USB 3.0 ports
    • 2 USB 2.0 ports
    VGA
    • 1 VGA port
    Others
    • 1 COM port (rear)
    • 2 SATA DOM power connector
    • TPM 1.2 header
    System BIOS
    BIOS Type
    • AMI 128Mb SPI Flash EEPROM
    BIOS Features
    • Plug and Play (PnP)
    • DMI 2.3
    • PCI 2.2
    • ACPI 5.1
    • USB Keyboard Support
    • SMBIOS 3.1.1
    Chassis
    Form Factor
    • 2U
    Model
    Dimensions
    Height
    • 3.5" (89mm)
    Width
    • 17.2" (437mm)
    Depth
    • 25.5" (647mm)
    Weight
    • Net Weight: 35.5 lbs (16.1 kg)
    • Gross Weight: 69 lbs (31.2 kg)
    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • 2x Network activity LEDs
    • System Overheat LED / Fan fail LED /
      UID LED
    Drive Bays
    Hot-swap
    • 8 hot-swap 3.5" SAS3/SATA3 Drive Bays
    Peripheral Drives
    DVD-ROM
    • Slim DVD-ROM drive (optional)
    Backplane
    HDD Backplane
    • Supports 8 SAS3/SATA3 3.5" HDD
    System Cooling
    Fans
    • 3 heavy-duty PWM fans with optimal fan speed control
    Power Supply with Power Distributor
    740W Redundant high-efficiency power supply with PMBus
    AC Input
    • 100-240 V, 50-60 Hz, 9-3.5 Amp
    DC Output
    • 4 Amp @ +5V standby
    • 61.7 Amp @ +12V
    Certification Platinum Level Certified Platinum Certified
    [ Test Report ]
    PC Health Monitoring
    CPU
    • Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
    • CPU switching voltage regulator
    FAN
    • Fan status tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU Thermal Trip Support
    • Thermal control for 8x Fan connectors
    • I²C Temperature Sensing Logic
    LED
    • CPU / System Overheat LED
    Other Features
    • Chassis Intrusion Detection
    • Chassis Intrusion Header
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
      10°C to 35°C (50°F to 95°F)
    • Non-operating Temperature:
      -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:
      8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
      5% to 95% (non-condensing)
    Parts List
    Parts List - (Items Included)
    Part Number Qty Description
    Motherboard MBD-H11SSL-C 1 Super H11SSL-C Motherboard
    Chassis CSE-825TQ-R740LPB 1 Black 2U SC825TQ LP chassis w/ Red. 740W PWS
    HD Backplane BPN-SAS3-825TQ 1 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD
    Cable CBL-SAST-0948 2 MINI SAS HD-4 SATA,12G,INT,60CM,60CM SB,30AWG
    Heat Sink SNK-P0063P 1 2U Passive CPU Heat Sink for AMD Socket SP3 Processors
    Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
    Optional Parts List
    Part Number Qty Description
    Network Card(s) AOC-S40G-i2Q - Standard LP 2-port 40GbE controller, based on Intel Fortville XL710
    AOC-SGP-i2 - Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2
    AOC-SGP-i4 - Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
    AOC-STG-b4S - Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
    AOC-STGN-i2S - Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
    AOC-STGN-i1S - Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599EN
    AOC-STG-i2T - Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
    AOC-STG-i2 - Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
    Hot-swap 3.5" to 2.5" Hard Disk Drive Tray MCP-220-00043-0N - STD Black hot-swap screw type 3.5"-to-2.5" converter drive tray
    MCP-220-00118-0B - STD Black hot-swap tool-less 3.5"-to-2.5" converter drive tray.
    Cable Management Arm MCP-290-00073-0N - Supermicro Cable Management Arm for 2U, 3U and 4U chassis (Extendable Length: 70mm to 830mm)
    Storage Controller card & cable AOC-S3008L-L8e
    & 2x CBL-SAST-0699
    AOC-S3008L-L8i
    & 2x CBL-SAST-0699
    AOC-S3108L-H8iR
    & 2x CBL-SAST-0699     		-

    -

    -
          		Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBA
    MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG
    Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E
    MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG
    Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60
    MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG
    CacheVault BTR-TFM8G-LSICVM02
    & BKT-BBU-BRACKET-05
    BTR-TFM8G-LSICVM02
    & MCP-240-00127-0N
    & MCP-220-00043-0N     		-

    -

          		CacheVault for Broadcom 3108,
    Supercap mounting bracket for PCI-E location
    CacheVault for Broadcom 3108,
    Supercap mounting bracket for 2.5" HDD location,
    STD Black hot-swap screw type 3.5"-to-2.5" converter drive tray
    Adapter Bracket MCP-120-82503-0N - Cable arm adapter for SC825LP,213LP (MCP-290-00073-0N required),HF,RoHS/REACH,PBF
    SATA DVD Kit MCP-220-81502-0N - Slim SATA DVD mounting kit for SC213,219,813,815,818,819,825,828,829,836,842
    TPM AOM-TPM-9655V - Vertical TPM with Infineon 9655 TCG 1.2
    AOM-TPM-9655V-S - Based on AOM-TPM-9655V with Server TXT package
    AOM-TPM-9665V - AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH
    AOM-TPM-9665V-S - Vertical TPM TCG 2.0 Provisioned for a server,RoHS/REACH
    Global Services & Support OS4HR3/2/1 - 3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1 - 3/2/1-year onsite NBD service
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
