AS -1013S-MTR
Print
Intergrated Board
Key Features
- - Web Hosting, VM
- Cloud Computing
- Connectivity/Storage
- Computer Nodes
- ·Single AMD EPYC™ 7001/7002 Series Processor
(AMD EPYC 7002 series drop-in support requires board revision 2.x)
- ·1TB Registered ECC DDR4 2666MHz SDRAM in 8 DIMMs
2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs (Board revision 2.x required)
- ·Expansion slots:
PCI-E 3.0 x16 (FH/HL) slot
M.2 Interface: PCI-E 3.0 x4 (NVMe based)
M.2 Form Factor: 2280, 22110
M.2 Key: Onboard M-key
Number of M.2: Single
- ·Integrated IPMI 2.0 + KVM with dedicated LAN
• Software Out of Band License
key (SFT-OOB-LIC) included
for OOB BIOS management
- ·2x 1GbE LAN ports via Intel® I210
- ·4 hot-swap 3.5" SATA3 drive bays
or 4 SAS3 ports (SAS Add-on Card is optional),
1 M.2 NVMe SSD Supported
- ·400W Redundant Platinum Level Power Supplies
(Full redundancy based on configuration and application load)
Specifications
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Platinum Level CertifiedParts List
 |
|||
| Parts List - (Items Included) | |||
 |
|||
| Part Number | Qty | Description | |

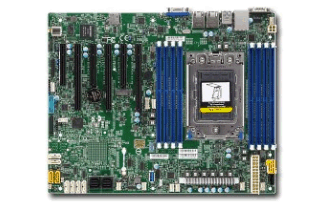

| Motherboard | MBD-H11SSL-i | 1 | Super H11SSL-i Motherboard |
| Chassis | CSE-813MFTQC-R407CB | 1 | 1U Chassis |
| HD Backplane | BPN-SAS3-815TQ | 1 | 1U 4-Port 12Gbps Backplane Support 4x3.5" SAS3/SATA3 HDD/SSD |
| Cable | CBL-0488L | 1 | SATA,INT,ROUND,ST-RA,55CM,30AWG |
| Cable | CBL-SAST-0639 | 2 | SATA,INT,ROUND,ST-RA,31CM,30AWG |
| Cable | CBL-SAST-0641 | 1 | SATA,INT,ROUND,ST-RA,45CM,30AWG |
| Part(s) | MCP-120-00031-0N | 1 | Riser card bracket for SC812,813,813M,815,111,113,113M |
| Air Shroud | MCP-310-81305-0B | 1 | Mylar air shroud for 1U X11SPW-TF,RoHS |
| Riser Card | RSC-RR1U-E16 | 1 | RSC-RR1U-E16 with PIC-E x16 output |
| Heat Sink | SNK-P0062P | 1 | 1U Passive CPU Heat Sink for AMD Socket SP3 Processors |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management |
|
|||
| Optional Parts List | |||
|
|||
| Part Number | Qty | Description | |
| Storage Control Card and Cable(s) | AOC-S3008L-L8e | - | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBA |
| 1x CBL-SAST-0811 | MINI SAS HD-4 SATA (RA),12G,INT,50/50/60/70,70CM SB,30AWG,RoHS/REACH | ||
| AOC-S3008L-L8i | - | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E | |
| 1x CBL-SAST-0811 | MINI SAS HD-4 SATA (RA),12G,INT,50/50/60/70,70CM SB,30AWG,RoHS/REACH | ||
| AOC-S3108L-H8iR | - | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60 | |
| 1x CBL-SAST-0811 | MINI SAS HD-4 SATA (RA),12G,INT,50/50/60/70,70CM SB,30AWG,RoHS/REACH | ||
| CacheVault(s) | BTR-TFM8G-LSICVM02 | - | CacheVault for Broadcom 3108 |
| MCP-240-00127-0N | Supercap mounting bracket for 2.5" HDD location | ||
| MCP-220-00043-0N | STD Black hot-swap screw type 3.5"-to-2.5" converter drive tray | ||
| Hot-swap 3.5" to 2.5" Hard Disk Drive Tray | MCP-220-00043-0N | - | STD Black hot-swap screw type 3.5"-to-2.5" converter drive tray |
| MCP-220-00118-0B | - | STD Black hot-swap tool-less 3.5"-to-2.5" converter drive tray | |
| DVD-ROM / DVD-RW | DVM-PNSC-DVD-SBT3 | - | Black Panasonic Slim DVD-ROM SATA Drive |
| MCP-220-81502-0N | Slim SATA DVD mounting kit | ||
| CBL-0099 | 25CM FDD 4 PIN TO SLIM 4 PIN power cable,24AWG | ||
| DVM-TEAC-DVD-SBT3 | - | Black TEAC Slim DVD-ROM SATA Drive | |
| MCP-220-81502-0N | Slim SATA DVD mounting kit | ||
| CBL-0099 | 25CM FDD 4 PIN TO SLIM 4 PIN power cable,24AWG | ||
| DVM-PLDS-DVDRW-SBT4 | - | Philips Slim Black DVD-RW SATA Drive, HF | |
| MCP-220-81502-0N | Slim SATA DVD mounting kit | ||
| CBL-0099 | 25CM FDD 4 PIN TO SLIM 4 PIN power cable,24AWG | ||
| Drive Tray(s) | MCP-220-00129-0B | - | Black 2x USB 3.0 port tray in slim FDD bay |
| Hot-Swap Drive Bays | 2.5" HDD Tray (FDD Slot) | MCP-220-81504-0N | - | 12G 2.5-in Hot-swap Slim Floppy Size Drive Kit w/Status LED |
| CBL-0210L (PWR) | |||
| Hot-Swap Drive Bays | 2.5" HDD Tray (DVD Slot) | MCP-220-81506-0N | - | 12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED |
| CBL-0099 (PWR) | |||
|
Hot-Swap Drive Bays | 2.5" HDD Tray (DVD Slot) + Hot-Swap Drive Bays | 2.5" HDD Tray (FDD Slot) |
MCP-220-81504-0N | - | 12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED + Slim DVD Size Drive Kit w/Status LED |
| MCP-220-81506-0N | |||
| CBL-SAST-0654 (data) x2 | |||
| CBL-0210L (PWR) | |||
| CBL-0099 (PWR) | |||
| CBL-0161L (Y-cable) | |||
| CBL-PWEX-0702 (PWD) | |||
| TPM | AOM-TPM-9655V | - | Vertical TPM with Infineon 9655 TCG 1.2 |
| AOM-TPM-9655V-S | - | Based on AOM-TPM-9655V with Server TXT package | |
| AOM-TPM-9665V | - | AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH | |
| AOM-TPM-9665V-S | - | Vertical TPM TCG 2.0 Provisioned for a server,RoHS/REACH | |
| FAN | FAN-0154L4 | 2 | 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH |
| Global Services & Support | OS4HR3/2/1 | - | 3/2/1-year onsite 24x7x4 service |
| OSNBD3/2/1 | - | 3/2/1-year onsite NBD service | |
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
