    AS -1123US-TN10RT

    Print

    Key Features

    • - Virtualization
      •- Cloud Computing
      •- High-End Enterprise Server

    • ·Dual AMD EPYC™ 7001/7002 Series Processors
      (AMD EPYC 7002 series drop-in support requires board revision 2.x)
    • ·4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs (7001 Processors)
      8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs (Board revision 2.x required + 7002 Processors)
    • ·Expansion slots:
      1 PCI-E 3.0 x16 (FH, 9.5"L) slot,
      1 PCI-E 3.0 x8 (LP) slot
    • ·Integrated IPMI 2.0 + KVM with dedicated LAN
      • Software Out of Band License
       key (SFT-OOB-LIC) included
       for OOB BIOS management
    • ·2x 10GBase-T LAN ports via Intel®X540
    • ·Drive Bays:10 hot-swap 2.5" U.2 NVMe drive bays
    • ·1000W Redundant Power Supplies
      Titanium Level (96%)
      (Full redundancy based on configuration and application load)
    Specifications
    Product SKUs
    AS -1123US-TN10RT
    • A+ Server 1123US-TN10RT

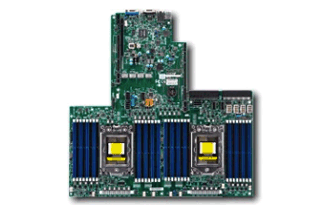

    Motherboard
    H11DSU-iN
    Processor/Chipset
    CPU
    • Dual AMD EPYC™ 7001/7002* series Processors
      (* Board revision 2.x required)
    • Socket SP3
    • Supports CPU cTDP up to 280W**
    Cores
    • Up to 32 Cores (Board revision 1.x + 7001 Processors)
    • Up to 64 Cores (Board revision 2.x + 7002 Processors)
    Chipset
    • System on Chip (SoC)
    Note ** Certain CPUs with high TDP higher than 225W may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
    System Memory
    Memory Capacity
    • 32 DIMM slots
    • Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors)
    • Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors)
    • 8-channel memory bus
    Memory Type
    • DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs (7001 Processors)
    • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors)
    DIMM Sizes
    • 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB*
      (* Board revision 2.x required + 7002 Processors)
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    • ASPEED AST2500 BMC
    Network Controllers
    • Intel® X540 Controller
    VGA
    • ASPEED AST2500 BMC
    Expansion Slots
    1U
    • 1 PCI-E 3.0 x16 (FH, 9.5"L) slot
    • 1 PCI-E 3.0 x8 (LP) slot


    (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)
    M.2
    • 1 M.2 PCI-E 3.0 x4 M-Key NVMe (2240/2260/2280/22110)
    • or 1 M.2 M-Key SATA3 via optional cable CBL-SAST-0639 (2240/2260/2280/22110)
    • or 2 Internal M.2 slots via optional cable CBL-SAST-0639 (NVMe 2260 + SATA 2260)
    Input / Output
    NVMe
    • 10 U.2 NVMe support
    LAN
    • 2x 10GbBase-T LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 5 USB 3.0 ports (2 rear + 2 front + 1 Type A)
    VGA
    • 2 VGA ports (1 rear, 1 onboard)
    Others
    • 1 COM port
    • 2 SATA DOM power connectors
    • TPM 1.2 header
    System BIOS
    BIOS Type
    • AMI 128Mb SPI Flash EEPROM
    BIOS Features
    • Plug and Play (PnP)
    • DMI 2.3
    • PCI 2.2
    • ACPI 5.1
    • USB Keyboard Support
    • SMBIOS 3.1.1
    Chassis
    Form Factor
    • 1U
    Model
    • CSE-119UTS-R1K02P-N10T
    Dimensions
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 27.82" (707mm)
    Weight
    • Net Weight: 26 lbs (11.8 kg)
    • Gross Weight: 41 lbs (18.6 kg)
    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • 2x Network activity LEDs
    • System Overheat LED / Fan fail LED /
      UID LED
    Drive Bays
    Hot-swap
    • 10 hot-swap 2.5" U.2 NVMe drive bays
    System Cooling
    Fans
    • 8 heavy-duty PWM fans with optimal fan speed control
    Air Shroud
    • 1 Air Shroud
    Power Supply
    1000W Redundant Power Supplies with PMBus
    Total Output Power
    • 800W/1000W
    Dimension
    (W x H x L)
    • 73.5 x 40 x 203 mm
    Input
    • 100-127Vac / 9.8 - 7A / 50-60Hz
    • 200-240Vac / 7 - 5A / 50-60Hz
    • 200-240Vdc / 7 - 5A (for CCC only)
    +12V
    • Max: 66.7A / Min: 0A (100-127Vac)
    • Max: 83A / Min: 0A (200-240Vac)
    • Max: 83A / Min: 0A (200-240Vdc)
    12Vsb
    • Max: 2.1A / Min: 0A
    Output Type
    • 25 Pairs Gold Finger Connector
    Certification Titanium Level 96% Titanium Level
    [ Test Report ]
    PC Health Monitoring
    CPU
    • Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
    • CPU switching voltage regulator
    FAN
    • Up to 8-fan status tachometer monitoring
    • Up to eight 4-pin fan headers
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU Thermal Trip Support
    • Thermal control for 8x Fan connectors
    • I²C Temperature Sensing Logic
    LED
    • CPU / System Overheat LED
    Other Features
    • Chassis Intrusion Detection
    • Chassis Intrusion Header
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
      10°C to 35°C (50°F to 95°F)
    • Non-operating Temperature:
      -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:
      8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
      5% to 95% (non-condensing)
    Parts List
    Parts List - (Items Included)
    Part Number Qty Description
    Motherboard MBD-H11DSU-iN 1 Super H11DSU-iN Motherboard
    Chassis CSE-119UTS-R1K02P-N10T 1 1U Chassis
    HD Backplane BPN-SAS3-116A-N10 1 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 10x 2.5-inch NVMe storage devices, 4 of them are SAS3/SATA3 drives compatible.
    Cable CBL-SAST-0818 2 OCuLink v. 1.0,INT,PCIe NVMe SSD, 55CM, 34AWG
    Cable CBL-SAST-0819 2 OCuLink v 1.0,INT,PCIe NVMe SSD, 65CM, 34AWG, RoHS/REACH
    Cable CBL-SAST-0849 4 MiniSAS HD source to OcuLink v 1.0,INT,PCIe, 57CM,34AWG
    Cable CBL-SAST-0841 2 MiniSAS HD source to OcuLink v 1.0,INT,PCIe, 76CM,34AWG,RoHS
    Riser Card RSC-R1UW-2E16 1 1U LHS WIO Riser card with two PCI-E x16 slots
    Riser Card RSC-UMR-8 1 1U Ultra RHS Riser Card with 1 PCIE/SATA Hybrid M.2 &1 PCIE
    Add-on Card AOC-SLG3-2E4R-P 1 NVMe AOC by 8, HF, RoHS/REACH
    Add-on Card AOC-SLG3-4E4R-P 1 NVMe AOC by 16, HF, RoHS/REACH
    Add-on Card AOC-UR-I2XT 1 1U Ultra Riser based on Intel X540 controller with 2 10Gbase-T ports and 1 internal PCI-E x8 3.0 slot
    Heat Sink SNK-P0062P 2 1U Passive CPU Heat Sink for AMD Socket SP3 Processors
    Mounting Rail(s) MCP-290-00102-0N 1 Outer rail, quick-release type, 25.6
    Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
    Optional Parts List
    Part Number Qty Description
    1U Cable Management Arm MCP-290-00165-0N 1 1U Supermicro Cable Management Arm 3rd Gen (optimize for Ultra)
    1 Internal M.2 slot (SATA) CBL-SAST-0639 - 1U Ultra RHS Riser Card with 1 SATA M.2 (up to 22110)
    2 Internal M.2 slots
    (NVMe 2260 + SATA 2260)
    CBL-SAST-0639 - 1U Ultra RHS Riser Card with 1 PCI-E/SATA Hybrid M.2 & 1 PCI-E x8 (up to 2260 for each device)
    TPM AOM-TPM-9655V - Vertical TPM with Infineon 9655 TCG 1.2
    AOM-TPM-9655V-S - Based on AOM-TPM-9655V with Server TXT package
    AOM-TPM-9665V - AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH
    AOM-TPM-9665V-S - Vertical TPM TCG 2.0 Provisioned for a server,RoHS/REACH
    Global Services & Support OS4HR3/2/1 - 3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1 - 3/2/1-year onsite NBD service
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
