    SYS-5039C-I

    Print

    Key Features

    • -Entry-Level Server for SOHO, SMB
      -Remote access for mobile users
      -Data sharing/storage and
      -Centralized backup
    • · Single Socket H4 (LGA 1151) supports
      Intel® Xeon® processor E-2100 /
      E-2200 series, 9th/8th Gen.
      Intel® Core™ i3 Processors,
      Intel® Celeron®, Intel® Pentium®
    • · Intel® C242 chipset
    • · Up to 128GB ECC UDIMM, up to
      DDR4-2666MHz; 4 DIMM slots
    • · 1 PCI-E 3.0 x8 (in x16) slot,
      2 PCI-E 3.0 x4 (in x8) slots
    • · 4 internal 3.5" drive bays,
      2 external 5.25" peripheral bays
    • · M.2 Interface: 1 PCI-E 3.0 x4
      M.2 Form Factor: 22110/2280
      M.2 Key: M-Key
    • · 2 USB 3.2 Gen1 (front), 2 USB 3.2
      Gen1 (rear), 2 USB 2.0 (rear)
    • · 1 COM port, 1 VGA port
      Power Supply
    • · 400W Gold Certified High Efficient
      Power Supply
    Specifications
    Product SKUs
    SuperWorkstation
    • SYS-5039C-I (Black)

    Motherboard

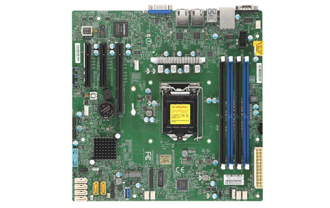

    Super X11SCL-F

    Processor
    CPU
    • Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
    • 8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor.
    Cores/Cache
    • 6 cores, 12 threads
    Note
    • BIOS version 1.0b or above is required to support Intel® Xeon® E-2200 and 9th Generation Intel® Core™ i3/Pentium®/Celeron® Processors

    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 128GB ECC UDIMM
    • Up to DDR4-2666MHz
    Memory Type
    • 2666/2400/2133MHz ECC DDR4 SDRAM
    DIMM Sizes
    • 32GB, 16GB, 8GB

    On-Board Devices
    Chipset
    • Intel® C242 chipset
    SATA
    • SATA3 (6Gbps) via Intel C242 controller
    • RAID 0, 1, 5, 10 support
    Network Controllers
    • Dual GbE LAN with Intel® I210-AT
    IPMI
    • ASPEED AST2500

    Input / Output
    SATA
    • 6 SATA3 (6Gbps) ports
    LAN
    • 2 RJ45 Ethernet LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.2 Gen1 (front)
    • 2 USB 3.2 Gen1 (rear)
    • 2 USB 2.0 (rear)
    Video
    • 1 VGA port
    Serial Port / Header
    • 1 COM port
    TPM
    • 1 TPM 2.0 Header

    Expansion Slots
    PCI-Express
    • 1 PCI-E 3.0 x8 (in x16) slot
    • 2 PCI-E 3.0 x4 (in x8) slots
    M.2
    • M.2 Interface: 1 PCI-E 3.0 x4
    • M.2 Form Factor: 22110/2280
    • M.2 Key: M-Key

    System BIOS
    BIOS Type
    • UEFI 256Mb
    BIOS Features
    • ACPI 6.0
    • SMBIOS 2.7
    • Plug and Play (PnP)
    • RTC (Real Time Clock) Wakeup
    • PCI F/W 3.0

    Management
    Software
    Chassis
    Form Factor
    • Mid-Tower
    Model

    Dimensions and Weight
    Height
    • 14.25" (362mm)
    Width
    • 7.25" (184mm)
    Depth
    • 16.75" (425mm)
    Gross Weight
    • 35.5 lbs (16.1 kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LED
    • System Information LED
    Ports
    • 2 USB 3.1 Gen 1 ports

    Drive Bays
    Internal
    • 4 Fixed 3.5" drive bays
    Peripheral
    • 2 External 5.25" Peripheral bays

    System Cooling
    Fans
    • 1x 9cm (rear) PWM fan w/ tool-less design
    • Optional 1x 8cm (front) cooling fan

    Power Supply
    Super quiet operation with 12cm cooling fan and 80plus gold certification
    Total Output Power and Input
    • 400W with Input 100 - 240Vac
    AC Input Frequency
    • 50-60Hz
    Dimensions (L x W x H)
    • 140 x 150 x 86 mm
    -12V
    • Max: 0.3A
    +12V
    • 18A
    +5V
    • Max: 22A
    +3.3V
    • Max: 24A
    +5V standby
    • Max: 3A
    Certification 80 PLUS   Gold Certified

    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
    • 4 CPU switch phase voltage regulator
    FAN
    • Low noise fan speed control
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for five 4-pin fan connectors
    • Platform Environmental Control Interface (PECI)

    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         10°C to 35°C (50°F to 95°F)
    • Non-operating Temperature:
         -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
         20% to 95% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)
    Parts List
    Parts List - (Items Included)

    Part Number
    Qty
    Description
    Motherboard / Chassis MBD-X11SCL-F
    CSE-731i-403B
    1
    1
    Super X11SCL-F Motherboard
    3U Mid-Tower Chassis
    Cable 1 CBL-0044L 4 SATA,INT,FLAT,57.7CM,26AWG
    Parts MCP-260-00042-0N 1 STD I/O shield for X9 socket R server MB with Gasket.
    Manual MNL-2169-QRG 1 SYS-5039C-I Quick Reference Guide
    * Power Supply PWS-403-PQ 1 PS2/ATX 400W Multi-output power supply 80Plus gold,RoHS
    * Cable 2 CBL-0084L 1 CBL,FRONT CNTL,SPLIT,16 PIN,W/CONVERTER HEAD,15CM,26AWG
    * Cable 3 CBL-0260L 1 US power cord 18AWG 6ft, PBF (default for low watt)
    * Cable 4 CBL-CUSB-0998 1 USB 3.0(F) Type A 2x to USB3.0 20pin,48CM,26/30AWG
    * FAN 1 FAN-0108L4 1 92X25MM 4-PIN PWM REAR EXT FAN FOR SC731
    * Parts MCP-110-00033-0N 2 Binding Head Screw (with teeth) #632*4.5L
    * Drive Tray(s) MCP-220-73101-0B 4 SC731 Tool-less Internal 3.5inch HDD Tray
    Notes:
    1. Parts with * are inside the chassis
    2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
    Optional Parts List

    Part Number
    Qty
    Description
    Cable CBL-0082L - Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
    Cable CBL-SAST-0624 - SATA, INT, ROUND, ST-ST, 70CM, 30AWG
    Heat Sink SNK-P0051AP4 - 4U Active CPU Heat Sink for Gaming and Socket H UP Systems,RoHS/REACH,PBF
    DVD-ROM DVM-LITE-DVDRW24-HBT1 - BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
