    SYS-1019D-16C-FHN13TP

    Print

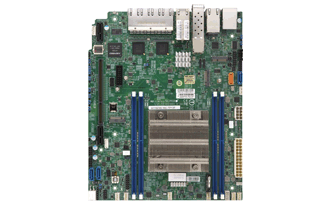

    Intergrated Board
    X11SDW-16C-TP13F
    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • -Multi-Access Edge Computing(MEC)
      •-Centralized/Cloud Radio Access Network(C-RAN)
      ••-Universal Customer Premise Equipment(uCPE)
      •-Software Defined WAN (SD-WAN)
      •-Network Function Virtualization (NFV)
      •-Artificial Intelligence (AI)
    • • Intel® Xeon® D-2183IT Processor,
      16-Core, 32 Threads, 2.2 GHz, 100W
    • • Up to 512GB ECC LRDIMM,
      up to 256GB reg. ECC RDIMM
      DDR4-2400Mz; in 4 DIMM slots
    • • 2 PCI-E 3.0 x16 (FHFL) slots
    • • 2 Hot-swap 2.5" drive bays,
      2 Internal 2.5" SSD bays
    • • 1 M-Key, 2280/22110,
      1 E-Key, 2230, 1 B-Key, 3042
    • • 9 GbE (1 port is used for management),
      2x 10GbE, 2x 10G SFP+, and
      1 Dedicated IPMI LAN ports
    • • 2 USB 3.0, 1 VGA,
      1 COM via RJ45
    • • 500W Multi-output
      Platinum Level Power Supply
    Specifications
    Product SKUs
    SYS-1019D-16C-FHN13TP
    • SuperServer 1019D-16C-FHN13TP (Black)

    Motherboard
    Super X11SDW-16C-TP13F

    Processor
    CPU
    • Intel® Xeon® processor D-2183IT,
      CPU TDP support 100W
    Cores / Cache
    • 16 Cores, 32 Threads

    System Memory
    Memory Capacity
    • Up to 512GB DDR4 ECC LRDIMM
    • Up to 256GB DDR4 ECC RDIMM
    • 4 DIMM slots
    Memory Type
    • 2666/2400/2133MHz ECC DDR4 L/RDIMM
    • Operating speed up to 2400MHz
    DIMM Sizes
    • 128GB, 64GB, 32GB, 16GB
    Memory Voltage
    • 1.2 V

    On-Board Devices
    Chipset
    • System on Chip (SoC)
    SATA
    • SATA3 (6Gbps) ports via SoC controller
    Network Controllers
    • Dual 10G SFP+ via SoC
    • Dual 10GBase-T via Intel X557
    • 8x 1GbE with Intel I350-AM4
    • Single 1GbE with Intel I210
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Video
    • VGA via Aspeed AST2500 BMC

    Input / Output
    SATA
    • 4 SATA3 (6Gbps) ports
    LAN
    • 9 RJ45 Gigabit Ethernet LAN ports
    • 2 RJ45 10GbE LAN ports
    • 2 10G SFP+ LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (front)
    Video
    • 1 VGA port
    Serial Port / Header
    • 1 COM via RJ45

    System BIOS
    BIOS Type
    • 128Mb SPI Flash with AMI BIOS

    Management
    Software
    • Intel® Node Manager
    • IPMI 2.0
    • NMI
    • SUM
    • Watch Dog
    • SuperDoctor® 5
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-513BTS-505WB

    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 15" (381mm)
    Package
    • 6.9" (H) x 19.5" (W) x 22.4" (D)
    Weight
    • Gross Weight: 25 lbs (11.34 kg)
    • Net Weight: 14 lbs (6.35 kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Information LED

    Expansion Slots
    PCI-Express
    • 2 PCI-E 3.0 x16 (FHFL) slots
    M.2
    • 1 M.2 M-Key , 2280/22110
    • 1 M.2 E-Key , 2230
    • 1 M.2 B-Key , 3042

    Drive Bays
    Hot-swap
    • 2 Hot-swap 2.5" drive bays
    Internal
    • 2 Internal 2.5" SSD bays

    System Cooling
    Fans
    • 4x 40x28mm PWM fans (up to 6)

    Power Supply
    500W High-Efficiency Power Supply w/PMBus 1.2, I2C, and PFC
    AC Input
    • 100-240V, 50-60Hz, 6.6A max
    DC Output
    • +3.3V: 12A
    • +5V: 15A
    • +5V standby: 3A
    • +12V: 41A
    • -12V: 0.2A
    Certification Platinum Level Certified94%+    Platinum Certified


    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         0°C to 45°C (32°F to 113°F)
    • Non-operating Temperature:
         -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)
    Parts List
    Parts List - (Items Included)

    		 Part Number
    		 Qty
    		 Description
    Motherboard / Chassis MBD-X11SDW-16C-TP13F
    CSE-513BTS-505WB    		 1
    1    		 Super X11SDW-16C-TP13F Motherboard
    1U Chassis
    Backplane BPN-SAS3-826TQ-B2B 1 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
    Cable 1 CBL-0473L 2 SATA,INT,ROUND,ST-ST,21CM,30AWG
    Cable 2 CBL-CDAT-0662 1 CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG
    Cable 3 CBL-CDAT-0850 1 CBL,VGA,DB15/F,w/Bracket TO 2X8F/P2.54,50CM,28/30AWG,RoHS
    FAN 1 FAN-0154L4 2 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
    Parts MCP-260-00144-0B 1 1U I/O Shield for X11SDW with EMI Gasket, Black
    Air Shroud MCP-310-51303-0B 1 Mylar Air shroud for SC513B + UP MB X11SDW
    Riser Card RSC-R1UW-2E16 1 1U LHS WIO Riser card with two PCI-E x16 slots
    * Power Supply PWS-505P-1H 1 1U 500W Multi-output, Platinum level w/ PMbus 24pin, W100xL180xH40mm,RoHS/REACH
    * Cable 4 CBL-0160L 1 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
    * Cable 5 CBL-0335L 1 CBL,FRONT CNTL,20 TO 20 PIN,RA,RND TUBE,73CM,28AWG
    * FAN 2 FAN-0154L4 4 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
    * Drive Tray(s) MCP-220-00180-0B 2 2.5\" New ID gen 3 hot-swap HDD tray with lock feature (with plastic bracket)
    * Parts MCP-260-00078-0B 1 1U I/O shield for X11 Server MB with 5X5mm vent hole and EMI Gasket, Black
    * Front Panel MCP-280-80901-0N 1 SC809 FRONT CONTROL PANEL ASSY
    * Rail Set MCP-290-00102-0N 1 set Outer rail, quick-release type, 25.6\" to 33.05\"
    * Rail Set MCP-290-00108-0B 1 set Inner rail, front, short (quick) for 1U 17.2
    * Fan Holder MCP-320-00060-0N 1 Fan tray for six 40x28 fans in SC813M (for X11DPL-i 12\"x10.15\")
    * Parts MCP-340-00001-01 2 Dummy fan 40x28mm
    Notes:
    1. Parts with * are inside the chassis
    2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
    Optional Parts List

    		 Part Number
    		 Qty
    		 Description
    Rack Bracket MCP-290-00016-0N - 1U open rack bracket set for CSE-PT51L, MCP-290-00054-0N
