    SYS-1019D-14C-FRN5TP

    Print

    Key Features

    • -Centralized/Cloud Radio Access
      Network (C-RAN)
      •-Universal Customer Premise
      Equipment (uCPE)
      •-Software Defined WAN (SD-WAN)
      •-Network Function Virtualization (NFV)
    • · Intel® Xeon® D-2173IT Processor,
      14-Core, 28 Threads, 1.7 GHz, 70W
    • · Up to 512GB ECC LRDIMM,
      up to 256GB reg. ECC RDIMM
      DDR4-2133Mz; in 4 DIMM slots
    • · 4 PCI-E 3.0 x8 slots for optional AIOM
    • · 2x 2.5" drive bays (one drive space
      shares with M.2), 2 E1.S
      (30°C ambient temperature only)
    • · 2 M.2 M-Key: 2280/22110
      (space share with one 2.5" drive bay),
      1 M.2 E-Key: 2230,
      1 M.2 B-Key: 3042
    • · 2x 10GbE (shared with IPMI), 2x 10G
      SFP+, 1 Ethernet Management port
    • · 2 USB 3.0, 1 VGA,
      1 COM via RJ45 or Micro USB
    • · 400W Redundant Platinum Level
      Power Supplies
    Specifications
    Product SKUs
    SYS-1019D-14C-FRN5TP
    • SuperServer 1019D-14C-FRN5TP (Black)

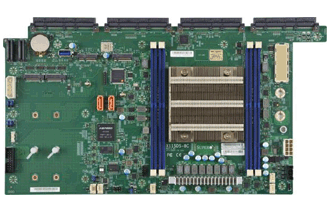

    Motherboard
    Super X11SDS-14C

    Processor
    CPU
    • Intel® Xeon® processor D-2173IT,
      CPU TDP support 70W
    Cores / Cache
    • 14 Cores, 28 Threads

    System Memory
    Memory Capacity
    • Up to 512GB DDR4 ECC LRDIMM
    • Up to 256GB DDR4 ECC RDIMM
    • 4 DIMM slots
    Memory Type
    • 2666/2400/2133MHz ECC DDR4 L/RDIMM
    • Operating speed up to 2133MHz
    DIMM Sizes
    • 128GB, 64GB, 32GB, 16GB
    Memory Voltage
    • 1.2 V

    On-Board Devices
    Chipset
    • System on Chip (SoC)
    SATA
    • SATA3 (6Gbps) ports via SoC controller
    Network Controllers
    • Dual 10G SFP+ via SoC
    • Dual 10GBase-T (share with IPMI)
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Video
    • VGA via BMC (option)

    Input / Output
    SATA
    • 2 SATA3 (6Gbps) ports
    LAN
    • 2 RJ45 10GbE LAN ports (shared with IPMI)
    • 2 10G SFP+ LAN ports
    • 1 Ethernet Management port
    USB
    • 2 USB 3.0 ports (front)
    Video
    • 1 VGA port
    Serial Port / Header
    • 1 COM via RJ45 or Micro USB

    System BIOS
    BIOS Type
    • 128Mb SPI Flash with AMI BIOS

    Management
    Software
      Intel® Node Manager
    • IPMI 2.0
    • NMI
    • SUM
    • Watch Dog
    • SuperDoctor® 5
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-103-R407B

    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 15" (381mm)
    Package
    • 6.9" (H) x 19.5" (W) x 22.4" (D)
    Weight
    • Gross Weight: 26.9 lbs (12.2 kg)
    • Net Weight: 15.9 lbs (7.21 kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Information LED

    Expansion Slots
    PCI-Express
    • 4 PCI-E 3.0 x8 slots for AIOM (AIOM is sold separately, it is not included in this standard/barebone system)
    M.2
    • 2 M.2 M-Key 2280/22110 (space share with one 2.5" drive bay)
    • 1 M.2 E-Key 2230
    • 1 M.2 B-Key 3042

    Drive Bays
    Hot-swap
    • 2x 2.5" drive bays (one drive space shares with M.2)
    Others
    • 2 E1.S (30°C ambient temperature only)

    System Cooling
    Fans
    • 5x 40x40x56 mm 13K-11K RPM Counter-rotating Fans

    AC/DC240V Input Redundant Power Supplies
    400W 1U Redundant Power Supplies with PMbus
    Total Output Power
    • 400W
    Dimension
    (W x H x L)
    • 54.5 x 40 x 220 mm
    Input
    • 100 - 240Vac / 6.0 - 3.0A / 50-60Hz
    • 200 - 240Vdc / 3.4 - 3.2A (CCC Only)
    +12V
    • Max: 33A / Min: 0.5A
    +5V sb
    • Max: 3A / Min: 0A
    Output Type
    • Gold Finger Connector Mating with Molex 45984-4343
    Certification Platinum Level Certified
    Platinum Level Certified
      [ Test Report ]

    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         0°C to 45°C (32°F to 113°F)
    • Non-operating Temperature:
         -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)
    Parts List
    Parts List - (Items Included)

    Part Number
    Qty
    Description
    Motherboard / Chassis MBD-X11SDS-14C
    CSE-103-R407B
    1
    1
    Super X11SDS-14C Motherboard
    1U Chassis
    Add-on Card / Module AOM-SMF-TP4F-P 1 I/O Module for X11SDS, 2x SFP+, 2x 10G RJ45, 1x 1G RJ45, 1x RJ45 Console (mux micro-USB), 2x USB3.0, PDB,RoHS
    Cable 1 CBL-0082L 1 Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
    Cable 2 CBL-0212L 1 4 PIN POWER CABLE FOR SC808 S809, S-RA, 20CM, 20AWG
    Cable 3 CBL-0473L 2 SATA,INT,ROUND,ST-ST,21CM,30AWG
    Cable 4 CBL-CDAT-0850 1 CBL,VGA,DB15/F,w/Bracket TO 2X8F/P2.54,50CM,28/30AWG,RoHS
    * Power Supply PWS-407P-1R 2 AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH
    Notes:
    1. Parts with * are inside the chassis
    2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
    Optional Parts List

    Part Number
    Qty
    Description
    AIOM AOC-AG-i8 - AIOM 8-port GbE RJ45, 2x Intel i350-AM4,RoHS
    AIOM AOC-AG-i4S - AIOM 4-port GbE SFP, Intel i350-AM4,RoHS
    AIOM AOC-ATG-I2T-P - AIOM 2-port 10GBase-T, Intel X550,RoHS
    AIOM AOC-A25G-B2S-P - AIOM 2-port 25GbE SFP28, Broadcom BCM57414,RoHS
    Rack Bracket MCP-290-00016-0N - 1U open rack bracket set for CSE-PT51L, MCP-290-00054-0N
