-Network Security Appliance
-SD-WAN, vCPE controller box
-NFV Edge Computing Server
-Virtualization Server
-IoT Edge Computing
· Intel® Xeon® processor D-2123IT,
4-Core, 8 Threads, 60W
· 1 Internal 3.5" or 4 Internal 2.5" drive bays
· 1 M.2 slot M key for SSD, 2242/80,
1 M.2 B Key for SSD/ WAN card,
1 Mini PCI-E with mSATA Support,
1 PCI-E 3.0 x8 slot
· Up to 512GB ECC LRDIMM,
up to 256GB ECC DIMM
DDR4-2666Mz; in 4 DIMM slots
· 4x 1GbE, 2x 10GBase-T, 2x 10G SFP+
and 1 dedicated LAN for IPMI 2.0
· 1 VGA, 2 USB 3.0
· 3x 40x28mm 4-PIN PWM fans
· 200W Low-noise AC-DC power supply


Processor/Cache

CPU	Intel® Xeon® processor D-2123IT, CPU TDP support 60W
Cores / Cache	4 Cores, 8 Threads


System Memory

Memory Capacity	Up to 512GB DDR4 ECC LRDIMM Up to 256GB DDR4 ECC DIMM 4 DIMM slots
Memory Type	2666/2400/2133MHz ECC DDR4 ECC LRDIMM and ECC DIMM
DIMM Sizes	128GB, 64GB, 32GB, 16GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)


On-Board Devices

SATA	SATA3 (6Gbps) ports via SoC controller
Network Controllers	Dual 10G SFP+ via SoC Quad 1GbE with Intel I350-AM4 Dual 10GBase-T with Intel X557
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	Aspeed AST2500 BMC


Input / Output

SATA	4 SATA3 (6Gbps) ports (SATA/SAS HDD/SSD)
LAN	2 10G SFP+ ports 4 RJ45 1GbE LAN ports 2 RJ45 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.0 ports (rear)
VGA	1 VGA port
Others	TPM 2.0 header


Dimensions and Weight

Height	1.7" (43mm) / 6.1" (155mm) - pkg.
Width	17.2" (437mm) / 25.8" (655mm) - pkg.
Depth	9.8" (249mm) / 18.3" (465mm) - pkg.
Weight	Net Weight: 8 lbs (3.63 kg) Gross Weight: 12 lbs (5.44 kg)
Available Colors	Black


Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED Network activity LEDs System Information LED Information LED (temp., status)


Expansion Slots

PCI-E	1 PCI-E 3.0 x8 slot 1 Mini-PCI-E with mSATA Support
M.2	1 M.2 slot M key for SSD, 2242/80 1 M.2 B Key for SSD/ WAN card


Drive Bays

Internal	1 Internal 3.5" or 4 Internal 2.5" drive bays


Power Supply

200W Low Noise AC-DC power supply with PFC
AC Voltage	100 - 240V, 50-60Hz, 2.6 Amp Max
+5V	8.0 Amp (max.)
+5V standby	2.0 Amp (max.)
+12V	16 Amp (max.)
-12V	0.5 Amp (max.)
+3.3V	8.0 Amp (max.)
Certification	Gold Certified


System BIOS

BIOS Type	128Mb SPI Flash with AMI BIOS
BIOS Features	PCI 3.0 ACPI 5.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 2.8 UEFI 2.4 RTC (Real Time Clock) Wakeup


Operating Environment / Compliance

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)


Parts List - (Items Included)

	Part Number	Qty	Description

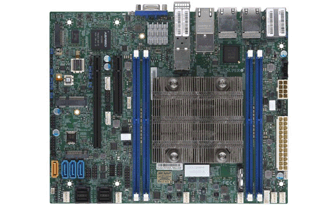

Motherboard / Chassis	MBD-X11SDV-4C-TP8F CSE-505-203B	1 1	Super X11SDV-4C-TP8F Motherboard 1U Chassis
Cable 1	CBL-0082L	1	Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
Cable 2	CBL-SAST-0538	2	SATA,INT,ROUND,ST-RA,29CM,30AWG
FAN 1	FAN-0065L4	3	4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
Drive Tray(s)	MCP-220-00051-0N	2	Single 2.5
Rear Window	MCP-240-00091-0N	2	1U universal riser card bracket for standard chassis,HF,RoHS/REACH,PBF
Parts	MCP-260-00100-0B	1	1U I/O Shield
Fan Holder	MCP-320-81302-0B	3	Optional fan tray for one 40x28mm fan in SC813T/SC813LT-single PWS (Fan tray only)
Riser Card	RSC-RR1U-E8	1	RSC-RR1U-E8
Power Supply	PWS-203-1H	1	1U 200W Multi-output 80Plus Gold PWS
Air Shroud	MCP-310-50503-0B	1	Mylar air shroud for SC504/505 with X11SDV-16C-TP,RoHS/REACH


Optional Parts List

	Part Number	Qty	Description
HDD Bracket	MCP-220-00044-0N	-	Retention Bracket for up to 2x 2.5" HDD
SuperDOM	-	-	Supermicro SATA DOM Solutions [Details]
