    SYS-5019D-FN8TP

    Print
    Intergrated Board

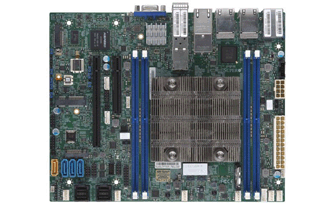

    X11SDV-8C-TP8F
    Views Angled ViewsFront ViewsRear Views

    Key Features

    • •-Network Security Appliance
      •-Universal Customer Premise
      Equipment (uCPE)
      •-Software Defined WAN (SD-WAN)
      •-NFV Edge Computing Server
      •-Virtualization Server
      •-IoT Edge Computing / Gateway
    • · Intel® Xeon® processor D-2146NT,
      8-Core, 16 Threads, 80W
    • · 1 Internal 3.5" or 4 Internal 2.5" drive bays
    • · 1 M.2 slot M key for SSD, 2242/8,
      1 M.2 B Key for SSD/ WAN card,
      1 Mini-PCI-E with mSATA Support,
      1 PCI-E 3.0 x8 slot
    • · Up to 512GB ECC LRDIMM,
      up to 256GB ECC RDIMM
      DDR4-2666Mz; in 4 DIMM slots
    • · 4x 1GbE, 2x 10GBase-T, 2x 10G SFP+
      and 1 dedicated LAN for IPMI 2.0
    • · 1 VGA, 2 USB 3.0
    • · 3x 40x28mm 4-PIN PWM fans
    • · 200W Low-noise AC-DC power supply
    • · Built in Intel QAT up to 40Gbps
      Crypto/Compression
    Specifications
    Product SKUs
    SYS-5019D-FN8TP
    • SuperServer 5019D-FN8TP (Black)

    Motherboard
    Super X11SDV-8C-TP8F

    Processor/Cache
    CPU
    • Intel® Xeon® processor D-2146NT,
      CPU TDP support 80W
    Cores / Cache
    • 8 Cores, 16 Threads

    System Memory
    Memory Capacity
    • Up to 512GB DDR4 ECC LRDIMM
    • Up to 256GB DDR4 ECC RDIMM
    • 4 DIMM slots
    Memory Type
    • 2666/2400/2133MHz ECC DDR4 ECC LRDIMM and ECC RDIMM
    DIMM Sizes
    • 128GB, 64GB, 32GB, 16GB
    Memory Voltage
    • 1.2 V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors
        (using ECC memory)

    On-Board Devices
    SATA
    • SATA3 (6Gbps) ports via SoC controller
    Network Controllers
    • Dual 10G SFP+ via SoC
    • Quad 1GbE with Intel I350-AM4
    • Dual 10GBase-T with Intel X557
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • Aspeed AST2500 BMC

    Input / Output
    SATA
    • 4 SATA3 (6Gbps) ports (SATA/SAS HDD/SSD)
    LAN
    • 2 10G SFP+ ports
    • 4 RJ45 1GbE LAN ports
    • 2 RJ45 10GBase-T LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (rear)
    VGA
    • 1 VGA port
    Others
    • TPM 2.0 header
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-505-203B

    Dimensions and Weight
    Height
    • 1.7" (43mm) / 6.1" (155mm) - pkg.
    Width
    • 17.2" (437mm) / 25.8" (655mm) - pkg.
    Depth
    • 9.8" (249mm) / 18.3" (465mm) - pkg.
    Weight
    • Net Weight: 8 lbs (3.63 kg)
    • Gross Weight: 12 lbs (5.44 kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Information LED
    • Information LED (temp., status)

    Expansion Slots
    PCI-E
    • 1 PCI-E 3.0 x8 slot
    • 1 Mini-PCI-E with mSATA Support
    M.2
    • 1 M.2 slot M key for SSD, 2242/8
    • 1 M.2 B Key for SSD/ WAN card

    Drive Bays
    Internal
    • 1 Internal 3.5" or 4 Internal 2.5" drive bays

    System Cooling
    Fans
    • 3x 40x28mm 4-PIN PWM fans

    Power Supply
    200W Low Noise AC-DC power supply with PFC
    AC Voltage
    • 100 - 240V, 50-60Hz, 2.6 Amp Max
    +5V
    • 8.0 Amp (max.)
    +5V standby
    • 2.0 Amp (max.)
    +12V
    • 16 Amp (max.)
    -12V
    • 0.5 Amp (max.)
    +3.3V
    • 8.0 Amp (max.)
    Certification Gold Level Certified
      Gold Certified


    System BIOS
    BIOS Type
    • 128Mb SPI Flash with AMI BIOS
    BIOS Features
    • PCI 3.0
    • ACPI 5.0
    • USB Keyboard support
    • Hardware BIOS Virus protection
    • SMBIOS 2.8
    • UEFI 2.4
    • RTC (Real Time Clock) Wakeup

    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         0°C to 40°C (32°F to 104°F)
    • Non-operating Temperature:
         -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)
    Parts List
    Parts List - (Items Included)

    		 Part Number
    		 Qty
    		 Description
    Motherboard / Chassis MBD-X11SDV-8C-TP8F
    CSE-505-203B     		1
    1    		 Super X11SDV-8C-TP8F Motherboard
    1U Chassis
    Cable 1 CBL-0082L 1 Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
    Cable 2 CBL-SAST-0538 2 SATA,INT,ROUND,ST-RA,29CM,30AWG
    FAN 1 FAN-0065L4 3 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
    Drive Tray(s) MCP-220-00051-0N 2 Single 2.5
    Rear Window MCP-240-00091-0N 2 1U universal riser card bracket for standard chassis,HF,RoHS/REACH,PBF
    Parts MCP-260-00100-0B 1 1U I/O Shield
    Fan Holder MCP-320-81302-0B 3 Optional fan tray for one 40x28mm fan in SC813T/SC813LT-single PWS (Fan tray only)
    Riser Card RSC-RR1U-E8 1 RSC-RR1U-E8
    Power Supply PWS-203-1H 1 1U 200W Multi-output 80Plus Gold PWS
    Air Shroud MCP-310-50503-0B 1 Mylar air shroud for SC504/505 with X11SDV-16C-TP,RoHS/REACH
    Optional Parts List
      Part Number Qty Description
    HDD Bracket MCP-220-00044-0N - Retention Bracket for up to 2x 2.5" HDD
    SuperDOM - - Supermicro SATA DOM Solutions [Details]
    Hide Parts List
