    SYS-5019C-MHN2

    Print

    Key Features

    • -General Purpose, SMB, Web Hosting
      •-Application and data serving
      •-Archiving, Mail/Finance, Security
    • · Single Socket H4 (LGA 1151) supports
      Intel® Xeon® processor E-2100 /
      E-2200 series, 8th/9th Gen. Intel®
      Core™ i9/i7/i5/i3 Processors,
      Intel® Celeron®, Intel® Pentium®
    • · Intel® C246 chipset
    • · Up to 128GB ECC/non-ECC UDIMM,
      up to DDR4-2666MHz; 4 DIMM slots
    • · 1 PCI-E 3.0 x16 slot
    • · 4 Hot-swap 3.5" drive bays
    • · M.2 Interface:
      1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4
      M.2 Form Factor: 2280/22110
      M.2 Key: M-Key
    • · 2 GbE LAN ports, 1 dedicated IPMI LAN
    • · 2 USB 3.1 (rear), 2 USB 2.0 (rear)
    • · 1 VGA, 1 COM, 1 TPM header
    • · 350W Multi-output power supply,
      Platinum Level Certified
    Specifications
    Product SKUs
    SYS-5019C-MHN2
    • SuperServer 5019C-MHN2 (Black)

    Motherboard

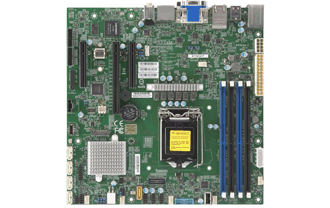

    Super X11SCZ-F

    Processor
    CPU
    • Single Socket H4 (LGA 1151),
      CPU TDP support up to 95W
    • Support Intel® Xeon® processor E-2100 / E-2200 series, 8th/9th Gen. Intel® Core™ i9/i7/i5/i3 Processors, Intel® Celeron®, Intel® Pentium®
    Cores / Cache
    • 6 cores, 12 threads

    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 128GB Unbuffered ECC/non-ECC UDIMM
    • Up to DDR4-2666MHz
    Memory Type
    • 2666/2400/2133MHz ECC DDR4 SDRAM
    DIMM Sizes
    • 32GB, 16GB, 8GB, 4GB
    Note
    • 128GB system memory capacity will be available in 2019 through a published BIOS update.

    On-Board Devices
    Chipset
    • Intel® C246 chipset
    SATA
    • SATA3 (6Gbps) via Intel C246 controller
    • RAID 0, 1, 5, 10 support
    IPMI
    • ASPEED AST2500
    Network Controllers
    • Dual LAN with Intel® I210-AT
    Audio
    • ALC 888S HD Audio
    Video
    • ASPEED AST2500 BMC

    Input / Output
    SATA
    • 5 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.1 ports (rear)
    • 2 USB 2.0 ports (rear)
    Video
    • 1 VGA port
    Serial Port / Header
    • 1 COM port (header)
    TPM
    • 1 TPM 2.0 Header

    System BIOS
    BIOS Type
    • UEFI 256Mb
    BIOS Features
    • ACPI 6.0
    • SMBIOS 2.7
    • Plug and Play (PnP)
    • RTC (Real Time Clock) Wakeup
    • UEFI 2.7
    • USB Keyboard support
    • PCI 3.0

    Management
    Software
    • Intel® Node Manager
    • IPMI 2.0
    • NMI
    • SSM, SPM, SUM
    • Watch Dog
    • SuperDoctor® 5
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-813MFTQC-350CB2

    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 19.8" (483mm)
    Package
    • 8.5" (H) x 23.4" (W) x 29.7" (D)
    Weight
    • Gross Weight: 32 lbs (14.52 kg)
    • Net Weight: 18 lbs (8.16 kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Information LED

    Expansion Slots
    PCI-Express
    • 1 PCI-E 3.0 x16 slot
    M.2
    • M.2 Interface:
      1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4
    • M.2 Form Factor: 2280/22110
    • M.2 Key: M-Key

    Drive Bays
    Hot-swap
    • 4 Hot-swap SAS/SATA 3.5" drive bays

    System Cooling
    Fans
    • 5x 40x28mm PWM fans

    Power Supply
    350W AC power supply w/ PFC
    AC Voltage
    • 100-240 V, 50-60 Hz, 5.0-2.5 Amp
    +5V
    • Max.: 15 Amp
    • Min.: 0.2 Amp
    +5V standby
    • Max.: 3 Amp
    • Min.: 0 Amp
    +12V
    • Max.: 29 Amp
    • Min.: 0.5 Amp
    -12V
    • Max.: 0.2 Amp
    • Min.: 0 Amp
    +3.3V
    • Max.: 12 Amp
    • Min.: 0.2 Amp
    Certification Platinum Level Certified     Platinum Level Certified
      [ Test Report ]

    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
    FAN
    • 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors
    Temperature
    • Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI

    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         0°C to 40°C (32°F to 104°F)
    • Non-operating Temperature:
         -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)
    Parts List
    Parts List - (Items Included)

    Part Number
    Qty
    Description
    Motherboard / Chassis MBD-X11SCZ-F
    CSE-813MFTQC-350CB2
    1
    1
    Super X11SCZ-F Motherboard
    1U Chassis
    Backplane BPN-SAS3-815TQ 1 1U 4-Port 12Gbps Backplane Support 4x3.5
    Cable 1 CBL-0488L 1 SATA,INT,ROUND,ST-RA,55CM,30AWG
    Cable 2 CBL-CDAT-0660 1 CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,27CM,28AWG
    Cable 3 CBL-SAST-0639 2 SATA,INT,ROUND,ST-RA,31CM,30AWG
    Cable 4 CBL-SAST-0641 1 SATA,INT,ROUND,ST-RA,45CM,30AWG
    Cable 5 CBL-0296L 1 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
    Parts MCP-260-00127-0N 1 1U I/O Shield for X11SCZ with EMI Gasket
    Air Shroud MCP-310-19007-0N 1 SC811/SC512L/SC512F/SC813M/SC113M/SC513L-410B/SC513L-420B/SC513F, UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MB
    Riser Card RSC-RR1U-E16 1 RSC-RR1U-E16 with PIC-E x16 output
    Heatsink / Retention SNK-P0049P 1 1U Passive Enhanced Performance CPU Heat Sink for Intel Socket H Series Processors
    * Power Supply PWS-350-1H 1 1U Single AC-DC 350W Platinum Level, multiple output power supply (180mm)
    * Cable 5 CBL-0071L 1 CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,75CM,28AWG
    * Cable 6 CBL-PWCD-0160-IS 1 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,13A,125V,RoHS/REACH
    * Peripheral Drive 1 CSE-PT93L-B 1 Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS
    * FAN 1 FAN-0154L4 4 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
    * Front Panel FPB-FP813-D 1 Front control board dual color for SC815,SC813M (C)
    * Drive Tray(s) MCP-220-00075-0B 4 Black gen 5.5 hot-swap 3.5"; HDD tray
    * Parts MCP-260-00078-0N 1 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF
    * Rail Set MCP-290-00102-0N 1set Outer rail, quick-release type, 25.6\" to 33.05\"
    * Rail Set MCP-290-00108-0N 1set Inner rail, front, short, quick-release type
    * Rail Set MCP-290-00110-0N 1set Inner rail, extension (quick) for 1U 17.2
    * Fan Holder MCP-320-00031-0B 1 Fan tray for six 40x28 fans(SC813M/113M)
    * Parts MCP-340-00001-01 2 Dummy fan 40x28mm
    Notes:
    1. Parts with * are inside the chassis
    2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
    Optional Parts List

    Part Number
    Qty
    Description
    3.5" to 2.5" Converter Tray MCP-220-00043-0N - Black Hot-swap Gen-4 2.5" to 3.5" HDD tray
    DVD-ROM / DVD-RW DVM-TEAC-DVD-SBT5
    DVM-PLDS-DVDRW-SBT5
    1
    1
    TEAC slim DVD-ROM SATA drive
    PHILPS slim DVD-RW SATA drive
    DVD-ROM Accessory MCP-220-81502-0N 1 Slim SATA DVD mounting kit
    Internal 2.5" HDD Tray (FDD slot) MCP-220-83601-0B 1 Black FDD dummy tray support 1x 2.5" slim HDD
    Internal 2.5" HDD Tray (DVD slot) MCP-290-00036-0B 1 Black DVD dummy tray support 1x 2.5" slim HDD
    Cable for internal HDD CBL-0484L
    CBl-0289L
    2
    1
    55cm 30AWG SATA straight to straigh cable
    Y split, big 4 pin to two RA SATA power estenstion 30cm
    Hot-swap 2.5" kit (FDD slot) MCP-220-81504-0N 1 Single slim 2.5" SAS3 (12Gb/s) hot swap in slim FDD form factor
    Hot-swap 2.5" kit (DVD slot) MCP-220-81506-0N 1 Single slim 2.5" SAS3 (12Gb/s) hot swap in slim DVD form factor
    USB/COM port tray (FDD slot) MCP-220-00129-0B 1 Black 2x USB3.0/COM port tray in slim FDD form factor
    Cooling Fan FAN-0154L4 - 40x40x28mm 22.5K RPM, SC813MF Middle Cooling Fan
    Storage Controller card & cable AOC-S3108L-H8iR
    & 1x CBL-SAST-0811
    AOC-S3108L-H8iR-16DD
    & 1x CBL-SAST-0811
    AOC-S3008L-L8i
    & 1x CBL-SAST-0811
    AOC-S3008L-L8e
    & 1x CBL-SAST-0811
    - Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8,
    RAID controller, RAID 0, 1, 5, 6, 10, 50, 60
    Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8,
    16HDD RAID controller, RAID 0, 1, 5, 6, 10, 50, 60
    Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8,
    63HDD, RAID 0, 1, 10
    Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8,
    122HDD HBA
    Network Card(s) AOC-SGP-i2
    AOC-SGP-i4
    AOC-STGN-i2S
    AOC-STGF-i2S
    AOC-STG-B4S
    AOC-STGS-i2T
    AOC-S25G-b2S
    AOC-S25G-m2S
    -
    -
    -
    -
    -
    -
    -
    -
    Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2
    Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
    Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
    Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2
    Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
    Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2
    Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414
    Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX
    Front Bezels CSE-PTFB-813LB
    CSE-PTFB-813-02B
    -
    -
    Black front bezels
    Black Front Bezel w/ Round Venting Holes
    TPM security module AOM-TPM-9670V
    AOM-TPM-9671V
    1
    1
    TPM 2.0, vertical form factor
    TPM 1.2, vertical form factor
    Global Services & Support OS4HR3/2/1
    OSNBD3/2/1
    -
    -
    3/2/1-year onsite 24x7x4 service
    3/2/1-year onsite NBD service
