-Compact 1U Embedded
-Video Surveillance
-Network Security
-Office Server, DVR/NVR
-Digital Signage, POS
· Single Socket H4 (LGA 1151) supports
Intel® Xeon® processor E-2100 /
E-2200 series, 8th/9th Gen. Intel®
Core™ i9/i7/i5/i3 Processors,
Intel® Celeron®, Intel® Pentium®
· Intel® C246 chipset
· 2 Hot-swap 2.5" SATA3 drive bays
· Up to 128GB unbuffered ECC/non-ECC
UDIMM, up to DDR4-2666MHz;
4 DIMM slots
· 1 PCI-E 3.0 x16 (HHHL) slot,
M.2 (M key, 22110/80, PCI-E 3.0 x4/SATA)
· 2 GbE LAN ports, 1 dedicated IPMI LAN
· 4 USB 3.1 (3 Type A, 1 Type C)
· 2 DP, DVI-I, VGA, ALC 888S HD Audio
· 200W Low Noise AC-DC Power Supply
with PFC, Gold Certified


Processor

CPU	Single Socket H4 (LGA 1151), CPU TDP support up to 80W Support Intel® Xeon® processor E-2100 / E-2200 series, 8th/9th Gen. Intel® Core™ i9/i7/i5/i3 Processors, Intel® Celeron®, Intel® Pentium® A graphic integrated CPU is required to have onboard video from the DVI and DP ports


System Memory

Memory Capacity	4 DIMM slots Up to 128GB Unbuffered ECC/non-ECC UDIMM Up to DDR4-2666MHz
Memory Type	2666/2400/2133MHz ECC DDR4 SDRAM
DIMM Sizes	64GB, 32GB, 16GB, 8GB, 4GB


On-Board Devices

Chipset	Intel® C246 chipset
SATA	SATA3 (6Gbps) via Intel C246 controller RAID 0, 1 support
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2500 BMC
Network Controllers	Single LAN with Intel® I210-AT Single LAN with Intel® PHY I219LM
Video	ASPEED AST2500 BMC and Intel HD Graphics
Audio	ALC 888S 7.1 HD Audio


Input / Output

SATA	2 SATA3 (6Gbps) ports; RAID 0, 1
LAN	2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	3 USB 3.1 ports (3 Type A and 1 Type C)
Video/Display	2 DP (DisplayPort): 1 DVI-I, 1 VGA D-Sub Connector port 3 independent displays
Audio	MIC-in and LINE-out
TPM	TPM Header " Chip


Management

Software	IPMI 2.0 with KVM support Watch Dog SuperDoctor® 5


Dimensions and Weight

Height	1.7" (43mm)
Width	17.2" (437mm)
Depth	11.3" (287mm)
Package	6.1" (H) x 25.4" (W) x 19.8" (D)
Weight	Gross Weight: 14.1 lbs (6.4 kg) Net Weight: 10.0 lbs (4.54 kg)
Available Colors	Black


Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED 2 Network activity LEDs System Information LED


Expansion Slots

PCI-Express	1 PCI-E 3.0 x16 (HHHL) slot
M.2	M.2 Interface: 1 SATA/PCI-E 3.0 x4 M.2 Form Factor: 2280/22110 M.2 Key: M-Key


Drive Bays

Internal	2 Hot-swap 2.5" SATA3 drive bays (maximum 12mm-thick drive)


Power Supply

200W Low Noise AC-DC power supply with PFC
AC Voltage	100 - 240V, 50-60Hz, 2.6 Amp Max
+5V	8.0 Amp (max.)
+5V standby	2.0 Amp (max.)
+12V	16 Amp (max.)
-12V	0.5 Amp (max.)
+3.3V	8.0 Amp (max.)
Certification	Gold Certified


PC Health Monitoring

CPU	Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN	Total of 6 fan headers supporting up to 6 fans 6 fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support I²C temperature sensing logic Thermal Monitor 2 (TM2) support PECI


Operating Environment / Compliance

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 40°C (50°F to 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)


Parts List - (Items Included)

	Part Number	Qty	Description

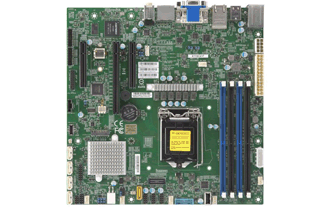

Motherboard / Chassis	MBD-X11SCZ-F CSE-510FT-203B	1 1	Super X11SCZ-F Motherboard 1U Chassis
Air Shroud	MCP-310-00097-0B	1	Air shroud for 4-DIMM size,HF,RoHS
Fan	FAN-0065L4	1	4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
Parts	MCP-150-00015-0B	1	Rubber pad, 3.0mm H, 10x10mm
Parts	MCP-260-00128-0B	1	1U I/O Shield for X11SCZ on SC510 with EMI Gasket
Riser Card	RSC-RR1U-E16	1	RSC-RR1U-E16 with PIC-E x16 output
Rear Window	MCP-240-00091-0N	2	1U universal riser card bracket for standard chassis,HF,RoHS/REACH,PBF
Heatsink / Retention	SNK-P0046P	1	1U PASSIVE CPU HS FOR INTEL LGA1156
Power Supply	PWS-203-1H	1	1U 200W Multi-output 80Plus Gold PWS
