 | | SYS-5019S-TN4 |
- SuperServer 5019S-TN4 (Black)
|
| | |
|

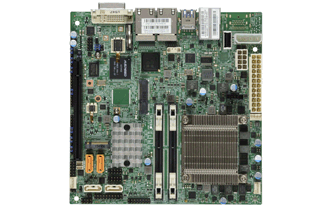

| Super X11SSV-M4F |
| |
|
| CPU |
- Single Socket FCBGA 1440 supports:
- Intel® Xeon® processor E3-1585 v5, 4-Core, 8 Threads, 65W
|
| |
|
| Memory Capacity |
- 2x DDR4 SO-DIMM slots
- Up to 32GB Unbuffered ECC SO-DIMM, DDR4-2133MHz, in 2 DIMM slots
|
| Memory Type |
- 2133/1866/1600MHz ECC DDR4 SODIMMs
|
| DIMM Sizes |
|
| Memory Voltage |
|
| |
|
| Chipset |
|
| SATA |
- SATA3 (6Gbps) via C236 controller
- RAID 0, 1, 5, 10 support
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
|
| Network Controllers |
- Single GbE LAN with Intel® I219LM controller
- Single GbE LAN with Intel® I210-AT; IPMI shared LAN with I210-AT
- Dual GbE LAN with Intel® I350-AM2
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
|
| Video |
|
| |
|
| SATA |
|
| LAN |
- 4 RJ45 Gigabit Ethernet LAN ports
- 1 RJ45 Shared IPMI LAN port
|
| USB |
|
| Video |
|
| Serial Port / Header |
- 1 COM port in RJ45 socket
|
| TPM |
|
| |
|
| Voltage |
- Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
|
| FAN |
- Total of 3 fan headers supporting up to 3 fans
- 3 fans with tachometer status monitoring
- Status monitor for speed control
- Status monitor for on/off control
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
|
| Temperature |
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- I2C temperature sensing logic
- Thermal Monitor 2 (TM2) support
- PECI
|
| LED |
- System Information LED
- Suspend static indicator LED
- UID/Remote UID
|
| Other Features |
- Chassis intrusion detection
- Chassis intrusion header
- RoHS, Halogen Free
|
|
