    SYS-5019S-M2

    Print
    Intergrated Board

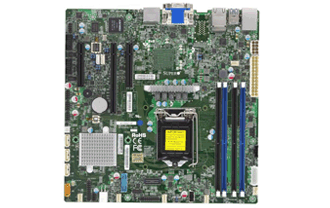

    X11SSZ-F
    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • -Embedded
      •-Security and Surveillance
      •-Appliance Server, Secure Storage
      •-Rack Workstation
    • · Single Socket H4 (LGA 1151) supports
      Intel® Xeon® processor E3-1200 v6/v5,
      Intel® 7th/6th Gen. Core™ i7/i5/i3 series,
      Intel® Celeron® and Intel® Pentium®
    • · Intel® C236 chipset
    • · 4 Hot-swap 3.5" SATA3 bays, Intel RST
    • · Up to 64GB Unbuffered
      ECC/Non-ECC UDIMM DDR4 2400MHz;
      4 DIMM slots
    • · 1 PCI-E 3.0 x16 slot
    • · 1 GbE LAN w/ Intel® i210-AT,
      1 GbE LAN w/ Intel® PHY i219LM
    • · Integrated IPMI 2.0 and KVM with
      Dedicated LAN
    • · 1 VGA, 1 COM, 4 USB 3.0, 2 USB 2.0
    • · 350W Platinum Level Power Supply
    Specifications
    Product SKUs
    SYS-5019S-M2
    • SuperServer 5019S-M2 (Black)

    Motherboard
    Super X11SSZ-F

    Processor/Cache
    CPU
    • Single Socket H4 (LGA 1151) supports:
    • Intel® Xeon® processor E3-1200 v6/v5,
      Intel® 7th/6th Gen Core™ i7/i5/i3,
      Intel® Pentium®,
      Intel® Celeron® processors
    • CPU TDP up to 80W
    Note BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors

    System Memory
    Memory Capacity
    • 4x 288-pin DDR4 DIMM slots
    • Up to 64GB DDR4 ECC/Non-ECC UDIMM
    Memory Type
    • 2400/2133/1866/1600MHz ECC/Non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
    DIMM Sizes
    • 16GB, 8GB, 4GB
    Memory Voltage
    • 1.2 V

    On-Board Devices
    Chipset
    • Intel® C236 chipset
    SATA
    • 4x SATA3 (6Gbps) via Intel® C236 controller
    • RAID 0, 1, 5, 10 support
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    • ASPEED AST2400 BMC
    Network Controllers
    • Intel® PHY i219LM + Intel® i210AT Gigabit Ethernet LAN Controllers
    • Virtual Machine Device Queues reduce I/O overhead
    • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    Audio
    • RealTek ALC 888S High Definition Audio
    Video
    • ASPEED AST2400 BMC

    Input / Output
    SATA
    • 4 SATA3 (6Gbps) ports
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 4 USB 3.0 ports (2 rear + 2 headers)
    • 9 USB 2.0 ports (2 rear + 6 headers + 1 Type A)
    Audio
    • Front panel header
    Video/Display
    • 2 DP (Display Port), 1 DVI-I from Intel® HD Graphics, 1 VGA from AST2400
    • 3 Independent Displays from Processor Graphics, VGA is from AST2400 for BMC KVM
    Serial Port / Header
    • 2 COM ports (1 front, 1 header)

    PC Health Monitoring
    Voltage
    • Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
    FAN
    • Total of 6 fan headers supporting up to 6 fans
    • 4 fans with tachometer status monitoring
    • Status monitor for speed control
    • Status monitor for on/off control
    • Low noise fan speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    • I2C temperature sensing logic
    • Thermal Monitor 2 (TM2) support
    • PECI
    LED
    • System Information LED
    • Suspend static indicator LED
    • UID/Remote UID
    Other Features
    • Chassis intrusion detection
    • Chassis intrusion header
    • RoHS, Halogen Free
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-813MFTQC-350CB

    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 19.85" (503mm)
    Package
    • 8.5" (H) x 24" (W) x 29.7" (D)
    Weight
    • Gross Weight: 30.4 lbs (13.8 kg)
    • Net Weight: 17.6 lbs (8 kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • 2 Network activity LEDs
    • System Information LED

    Expansion Slots
    PCI-Express
    • 1 PCI-E 3.0 x16 slot

    Drive Bays
    Hot-swap
    • 4 Hot-swap 3.5" SATA3 drive bays

    Backplane
    SAS/SATA HDD Backplane
    (SAS support requires optional SAS controller)

    System Cooling
    Fans
    • 4x 4cm internal fans

    Power Supply
    350W AC power supply w/ PFC
    AC Voltage
    • 100-240 V, 50-60 Hz, 5.0-2.5 Amp
    +5V
    • Max.: 15 Amp
    • Min.: 0.2 Amp
    +5V standby
    • Max.: 3 Amp
    • Min.: 0 Amp
    +12V
    • Max.: 29 Amp
    • Min.: 0.5 Amp
    -12V
    • Max.: 0.2 Amp
    • Min.: 0 Amp
    +3.3V
    • Max.: 12 Amp
    • Min.: 0.2 Amp
    Certification Platinum Level Certified     Platinum Level Certified
      [ Test Report ]

    System BIOS
    BIOS Type
    • 8MB SPI Flash EEPROM with AMI BIOS

    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         10°C to 35°C (50°F to 95°F)
    • Non-operating Temperature:
         -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)
    Parts List
    Parts List - (Items Included)

    		 Part Number
    		 Qty
    		 Description
    Motherboard / Chassis MBD-X11SSZ-F
    CSE-813MFTQC-350CB     		1
    1    		 Super X11SSZ-F Motherboard
    1U Chassis
    Backplane BPN-SAS3-815TQ 1 1U 4-Port 12Gbps Backplane Support 4x3.5
    Cable 1 CBL-0186L 1 SATA,INT,ROUND,SET OF 4,ST-RA 56/45.5/35/23CM,26AWG
    Cable 2 CBL-CDAT-0661 1 CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,40CM,28AWG
    Parts MCP-120-00031-0N 1 Riser card bracket for SC812,813,813M,815,111,113,113M
    Drive Tray(s) MCP-220-00129-0B 1 Black 2x USB3.0/COM port tray in slim FDD bay
    Parts MCP-260-00094-0N 1 1U I/O Shield for X11SSZ with EMI Gasket,RoHS/REACH
    Air Shroud MCP-310-19007-0N 1 SC811/SC512L/SC512F/SC813M/SC113M/SC513L-410B/SC513L-420B/SC513F, UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MB
    Manual MNL-1821-QRG 1 5019S-M2 QRG
    Riser Card RSC-RR1U-E16 1 RSC-RR1U-E16 with PIC-E x16 output
    Heatsink / Retention SNK-P0046P 1 1U PASSIVE CPU HS FOR INTEL LGA1156
    Power Supply PWS-350-1H 1 1U Single AC-DC 350W Platinum Level, multiple output power supply (180mm)
    FAN 1 FAN-0147L4 4 40x40x28 mm, 17.5K RPM, SC813MTS Middle Cooling Fan,RoHS/REACH,PBF
    Optional Parts List

    		 Part Number
    		 Qty
    		 Description
    3.5" to 2.5" Converter Tray MCP-220-00043-0N - Black Hot-swap Gen-4 2.5" to 3.5" HDD tray
    DVD-ROM / DVD-RW DVM-TEAC-DVD-SBT5
    DVM-PLDS-DVDRW-SBT5    		 1
    1    		 TEAC slim DVD-ROM SATA drive
    PHILPS slim DVD-RW SATA drive
    DVD-ROM Accessory CDM-USATA-G
    CBL-0341L    		 1
    1    		 Mini-SATA to USB adapter for slim DVD
    70CM, INTERNAL USB CABLE FOR SLIM USB DVD ROM
    Cooling Fan FAN0147L4 - 40x40x28 mm, 17.5K RPM, SC813MTS Middle Cooling Fan,RoHS/REACH,PBF
    Storage Controller card & cable AOC-S3108L-H8iR
    & 1x CBL-SAST-0811
    AOC-S3108L-H8iR-16DD
    & 1x CBL-SAST-0811
    AOC-S3008L-L8i
    & 1x CBL-SAST-0811
    AOC-S3008L-L8e
    & 1x CBL-SAST-0811     		- Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8,
    RAID controller, RAID 0, 1, 5, 6, 10, 50, 60
    Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8,
    16HDD RAID controller, RAID 0, 1, 5, 6, 10, 50, 60
    Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8,
    63HDD, RAID 0, 1, 10
    Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8,
    122HDD HBA
    Network Card(s) AOC-SGP-i2
    AOC-SGP-i4
    AOC-STGN-i2S
    AOC-STGF-i2S
    AOC-STGS-i2T
    AOC-S25G-b2S
    AOC-S25G-m2S    		 -
    -
    -
    -
    -
    -
    -    		 Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2
    Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
    Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
    Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2
    Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2
    Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414
    Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX
    Front Bezels CSE-PTFB-813LB
    CSE-PTFB-813-02B    		 -
    -    		 Black front bezels
    Black Front Bezel w/ Round Venting Holes
    TPM security module AOM-TPM-9665V
    AOM-TPM-9655V    		 1
    1    		 TPM 2.0, vertical form factor
    TPM 1.2, vertical form factor
    Global Services & Support OS4HR3/2/1
    OSNBD3/2/1    		 -
    -    		 3/2/1-year onsite 24x7x4 service
    3/2/1-year onsite NBD service
