    SYS-1019D-14CN-RDN13TP+

    Print
    Intergrated Board

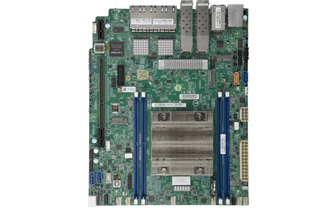

    X11SDW-14CN-TP13F+
    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • - Multi-Access Edge Computing (MEC)
      - Centralized/Cloud Radio Access
      Network (C-RAN)
      - Universal Customer Premise
      Equipment (uCPE)
      - Software Defined WAN (SD-WAN)
      - Network Function Virtualization (NFV)
      - Artificial Intelligence (AI)
    • · Intel® Xeon® D-2177NT Processor,
      14-Core, 28 Threads, 1.9 GHz, 105W
    • · Up to 512GB ECC LRDIMM,
      up to 256GB reg. ECC RDIMM
      DDR4-2400Mz; in 4 DIMM slots
    • · 2 PCI-E 3.0 x16 (FHFL) slots
    • · 2 Internal 2.5" SSD bays
    • · M.2: 1 M-Key, 2280/22110;
      1 E-Key, 2230; 1 B-Key, 2242/3042
    • · 9 GbE (1 port for management),
      4x 10G SFP+, and
      1 Dedicated IPMI LAN
    • · 2 USB 3.0, 1 VGA,
      1 COM via RJ45
    • · 600W -48V DC input Redundant Power Supplies
    Specifications
    Product SKUs
    SYS-1019D-14CN-RDN13TP+
    • SuperServer 1019D-14CN-RDN13TP+ (Black)

    Motherboard
    Super X11SDW-14CN-TP13F+

    Processor
    CPU
    • Intel® Xeon® processor D-2177NT
    • Single Socket FCBGA-2518 supported, CPU TDP supports Up to 105W TDP
    Cores / Cache
    • 14 Cores, 28 Threads

    System Memory
    Memory Capacity
    • Up to 512GB DDR4 ECC LRDIMM
    • Up to 256GB DDR4 ECC RDIMM
    • 4 DIMM slots
    Memory Type
    • 2666/2400/2133MHz ECC DDR4 L/RDIMM
    • Operating speed up to 2400MHz
    DIMM Sizes
    • 128GB, 64GB, 32GB, 16GB
    Memory Voltage
    • 1.2 V

    On-Board Devices
    Chipset
    • System on Chip (SoC)
    SATA
    • SATA3 (6Gbps) ports via SoC controller
    Network Controllers
    • Quad 10G SFP+ via SoC
    • 8x 1GbE with Intel® I350-AM4
    • Single 1GbE with Intel® I210
    IPMI
    • ASPEED AST2500
    • Support for Intelligent Platform Management Interface v.2.0
    Video
    • VGA via Aspeed AST2500 BMC

    Input / Output
    SATA
    • 2 SATA3 (6Gbps) ports
    LAN
    • 9 RJ45 Gigabit Ethernet LAN ports
    • 4 10G SFP+ LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (front)
    Video
    • 1 VGA port
    Serial Port / Header
    • 1 COM via RJ45
    TPM
    • 1 TPM Header & Chip both

    System BIOS
    BIOS Type
    • UEFI 256Mb

    Management
    Software
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-515M-R601

    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 15.7" (399mm)
    Package
    • 8" (H) x 27" (W) x 24" (D)
    Weight
    • Gross Weight: 28 lbs (12.7 kg)
    • Net Weight: 18 lbs (8.16 kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Information LED

    Expansion Slots
    PCI-Express
    • 2 PCI-E 3.0 x16 (FHFL) slots
    M.2
    • 1 M.2 M-Key: 2280/22110
    • 1 M.2 B-Key: 2242/3042
    • 1 M.2 E-Key: 2230

    Drive Bays
    Internal
    • 2 Internal 2.5" drive bays

    System Cooling
    Fans
    • 5x 40x56mm Hot-swap Counter-rotation PWM Fans

    -48Vdc Input Redundant Power Supplies
    600W Redundant Power Supplies with PMBus
    Total Output Power
    • 600W: -44Vdc to -65Vdc
    Dimension
    (W x H x L)
    • 54.5 x 40 x 220 mm
    DC Input
    • -44Vdc to -65Vdc / 18 - 10A
    +12V
    • Max: 50A / Min: 0A
    +5V sb
    • Max: 3A / Min: 0A
    Output Type
    • Gold Finger Connector Mating with Molex 45984-4343
    DC option for: (AC Counter- part)
    • PWS-406P-1R, PWS-407P-1R, PWS-606P-1R, PWS-608P-1R, PWS-804P-1R

    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         0°C to 45°C (32°F to 113°F)
    • Non-operating Temperature:
         -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)
    Parts List
    Parts List - (Items Included)

    		 Part Number
    		 Qty
    		 Description
    Motherboard / Chassis MBD-X11SDW-14CN-TP13F+
    CSE-515M-R601     		1
    1    		 Super X11SDW-14CN-TP13F+ Motherboard
    1U Chassis
    Cable 1 CBL-0473L 2 SATA,INT,ROUND,ST-ST,21CM,30AWG
    Cable 2 CBL-CDAT-0850 1 CBL,VGA,DB15/F,w/Bracket TO 2X8F/P2.54,50CM,28/30AWG,RoHS
    FAN FAN-0207L4 2 40x40x56 mm, 13K-11K RPM, Counter-rotating, Hot-swappable Fan for SC515M Chassis
    Parts MCP-260-00153-0B 1 1U I/O Shield for X11SDW-14CN-TP13F+ with EMI Gasket, Black
    Air Shroud MCP-310-51504-0B 1 Mylar Air Shroud for SC515M + X11 SDW
    Riser Card RSC-R1UW-2E16 1 1U LHS WIO Riser card with two PCI-E x16 slots
    * Power Supply PWS-601D-1R 2 -48V DC input, 12V and 5Vsb 600W output for 1U redundancy
    * Power Distributor PDB-PT515M-2424 1 1U support redundancy up to 800W for SC515M chassis with ATX
    Notes:
    1. Parts with * are inside the chassis
    2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
    Optional Parts List

    		 Part Number
    		 Qty
    		 Description
    Rack Bracket MCP-290-00016-0N - 1U open rack bracket set for CSE-PT51L, MCP-290-00054-0N
    Air Shroud MCP-310-51505-0B 1 Mylar Air Shroud for SC515M + T4 GPU
    Air Shroud MCP-310-51506-0B 1 Mylar Air Shroud for SC515M, FHFL AOC optimized
    Hide Parts List
