    SYS-5029C-TN2

    Print
    Intergrated Board

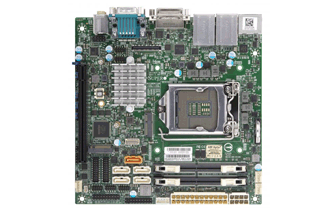

    X11SCV-Q
    Views Angled ViewsFront ViewsRear Views

    Key Features

    • -Surveillance Security Server
      •-Compact Storage Appliance
      •-Video processing & streaming
      •-Small Medium Business Edge Server
    • • Single Socket H4 (LGA 1151) supports:
      9th/8th Gen Intel® Core™ i9/i7/i5/i3
      / Pentium® / Celeron® processor
    • • Intel® Q370 chipset
    • • Up to 64GB unbuf. non-ECC SO-DIMM,
      DDR4-2666Mz; in 2 DIMM slots
    • • 1 PCI-E 3.0 x16 LP AOC slot, M.2 M key:
      PCI-E 3.0 x4, support 2242/2280;
      M.2 E KEY: PCI-E 3.0 x1, support 2230
    • • 4 Hot-swap 3.5" drive bays,
      2 internal 2.5" drive bays,
      1 slim DVD-ROM bay
    • • 2x 1GbE LAN ports
    • • 4 USB 3.1 (2 type A and 2 type C)
    • • Intel® HD Graphics,
      ALC 888S HD Audio
    • • 250W Bronze Level power supply
    Specifications
    Product SKUs
    SYS-5029C-TN2
    • SuperServer 5029C-TN2 (Black)

    Motherboard
    Super X11SCV-Q

    Processor/Cache
    CPU
    • Single Socket H4 (LGA 1151) supports:
    • 9th/8th Gen Intel® Core™ i9/i7/i5/i3 / Pentium® / Celeron® processor
    • CPU TDP support Up to 65W TDP

    System Memory
    Memory Capacity
    • Up to 64GB Unbuffered non-ECC SO-DIMM, DDR4-2666MHz
    • 2 DIMM slots
    Memory Type
    • DDR4-2666MHz Unbuffered non-ECC SO-DIMM
    DIMM Sizes
    • 32GB, 16GB
    Memory Voltage
    • 1.2 V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors
        (using ECC memory)

    On-Board Devices
    Chipset
    • Intel® Q370 chipset
    SATA
    • Q370 controller for 5 SATA3 ports; RAID 0, 1, 5, 10
    Network Controllers
    • Single LAN with Intel® Ethernet Controller I210-AT
    • Single LAN with Intel® PHY I219LM LAN controller
    Audio
    • ALC 888S HD Audio
    Graphics
    • 3 Independent Displays

    Input / Output
    SATA
    • 5 SATA3 (6Gbps) ports via PCH
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    USB
    • 4 USB 3.1 (2 type A and 2 type C in rear)
    Display
    • 1 DVI - D port
    • 1 HDMI port
    • 1 DP (Display Port)
    • 1 eDP (Embedded Display Port)
    • 3 Independent Displays
    • 2 COM ports support RS-232/422/485
    Audio
    • HD Audio (Mic In / Line Out)
    TPM
    • 1 TPM Header & Chip

    Management
    Software
    • SuperDoctor® 5
    • Watch Dog
    • Non-maskable Interrupt (NMI)
    • Chassis intrusion detection
    Chassis
    Form Factor
    • Mini Tower
    Model
    • CSE-721TQ-250B

    Dimensions and Weight
    Height
    • 9.45" (240mm)
    Width
    • 8.27" (210mm)
    Depth
    • 11" (279mm)
    Weight
    • Gross Weight: 15 lbs (6.8 kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Information LED
    Ports
    • 2 USB 3.1 Gen1 ports

    Expansion Slots
    PCI-E
    • 1 PCI-E 3.0 x16 (Low-profile)
    M.2
    • M.2 M key: PCI-E 3.0 x4, NVMe support 2242/2280 length
    • M.2 E Key: PCI-E 3.0 x1, support 2230 length

    Drive Bays
    HDD
    • 4 Hot-swap 3.5" drive bays
    • 2 internal 2.5" drive bays
    Peripheral
    • 1 slim DVD-ROM bay

    Power Supply
    250W Flex ATX Multi-output Bronze Power Supply
    AC Voltage
    • 100 - 240V, 50 - 60Hz
    +5V
    • Max:14 Amp; Min:0.5 Amp
    +12V
    • Max:18 Amp; Min:1 Amp @100V-240V
    -12V
    • Max: 0.3 Amp
    +3.3V
    • Max: 12 Amp Min: 0.3Amp
    5VSB
    • Max: 2.5 Amp
    Certification 80 PLUS   Bronze Certified

    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +-12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
    • 3+0 CPU switch phase voltage regulator
    • CPU thermal trip support
    FAN
    • Low noise fan speedcontrol
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for 4x 4-pin fan connectors
    • Platform Environmental Control Interface (PECI)

    System BIOS
    BIOS Type
    • UEFI 256Mb
    BIOS Features
    • ACPI 6.0
    • SMBIOS 2.7
    • Plug and Play (PnP)
    • RTC (Real Time Clock) Wakeup
    • PCI F/W 3.0

    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         10°C to 35°C (50°F to 95°F)
    • Non-operating Temperature:
         -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
         20% to 95% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)
    Parts List
    Parts List - (Items Included)

    		 Part Number
    		 Qty
    		 Description
    Motherboard / Chassis MBD-X11SCV-Q
    CSE-721TQ-250B     		1
    1    		 Super X11SCV-Q Motherboard
    Mini Tower Chassis
    Cable 1 CBL-0473L 4 SATA,INT,ROUND,ST-ST,21CM,30AWG
    Backplane CSE-SAS-733TQ 1 4x3.5\" SAS2/SATA3 backplane w/SES-II
    Parts MCP-260-00136-0N 1 Standard I/O Shield for X11SCV with EMI Gasket
    * Power Supply PWS-251-1H 1 1U 250W Flex ATX Multi-output Bronze Power Supply
    * FAN 1 FAN-0124L4 1 12 CM x12 CM fan
    * Drive Tray(s) MCP-220-00075-0B 4 Black gen 5.5 hot-swap 3.5"; HDD tray
    Notes:
    1. Parts with * are inside the chassis
    2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
